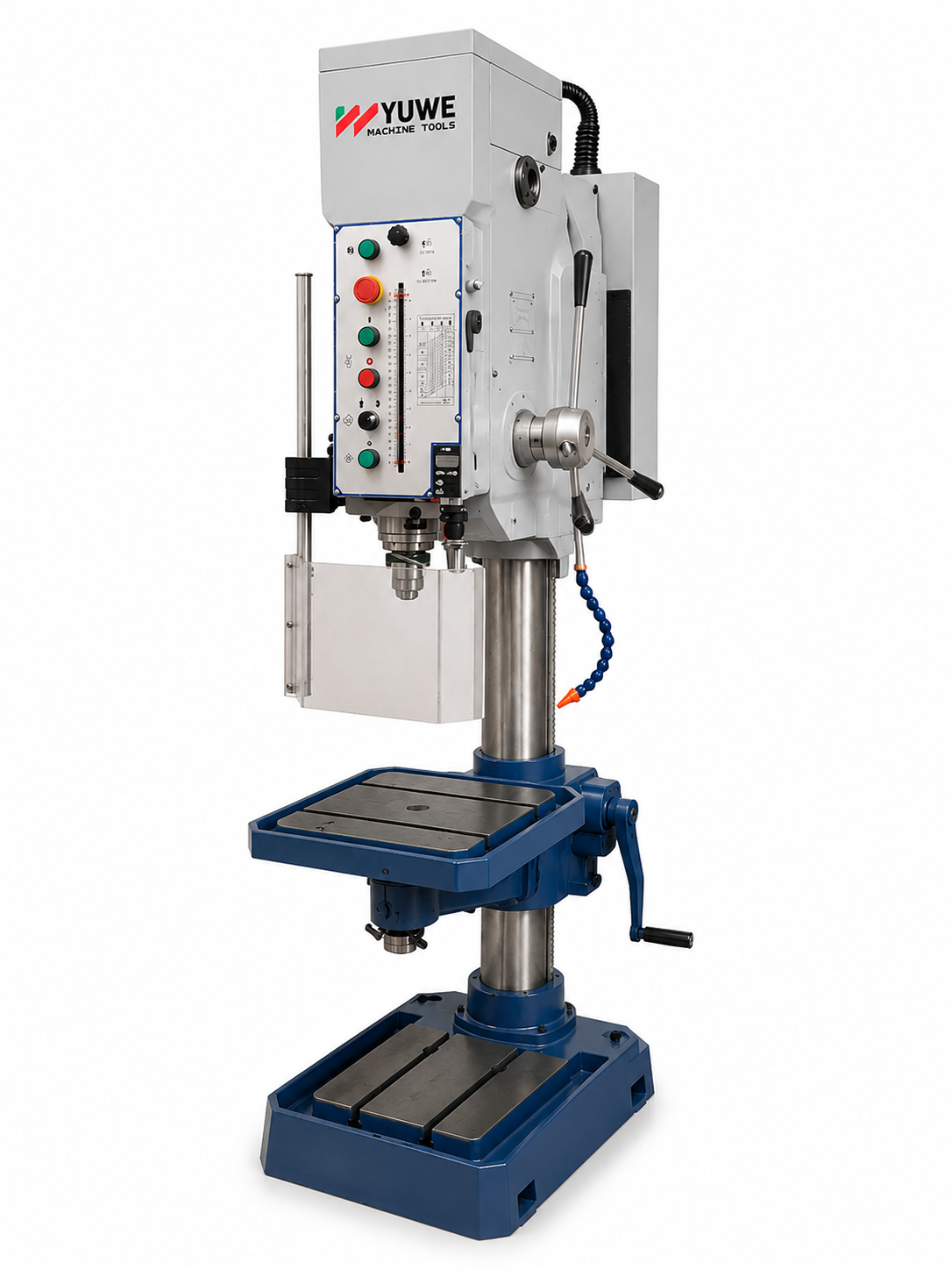

YUWE DM50
The YUWE DM50 is a heavy-duty geared-head drilling machine designed for industrial drilling, tapping, and production machining. Featuring a 50 mm drilling capacity, 30 mm tapping capacity, MT5 spindle, and a powerful two-speed motor, the DM50 delivers excellent rigidity, torque, and precision for machine shops, fabrication facilities, maintenance departments, and industrial manufacturing.
Built with a rigid cast iron construction, geared head drive, automatic spindle feed, and electromagnetic clutch, the YUWE DM50 provides dependable performance for demanding drilling and tapping applications.
Specifications
Capacity

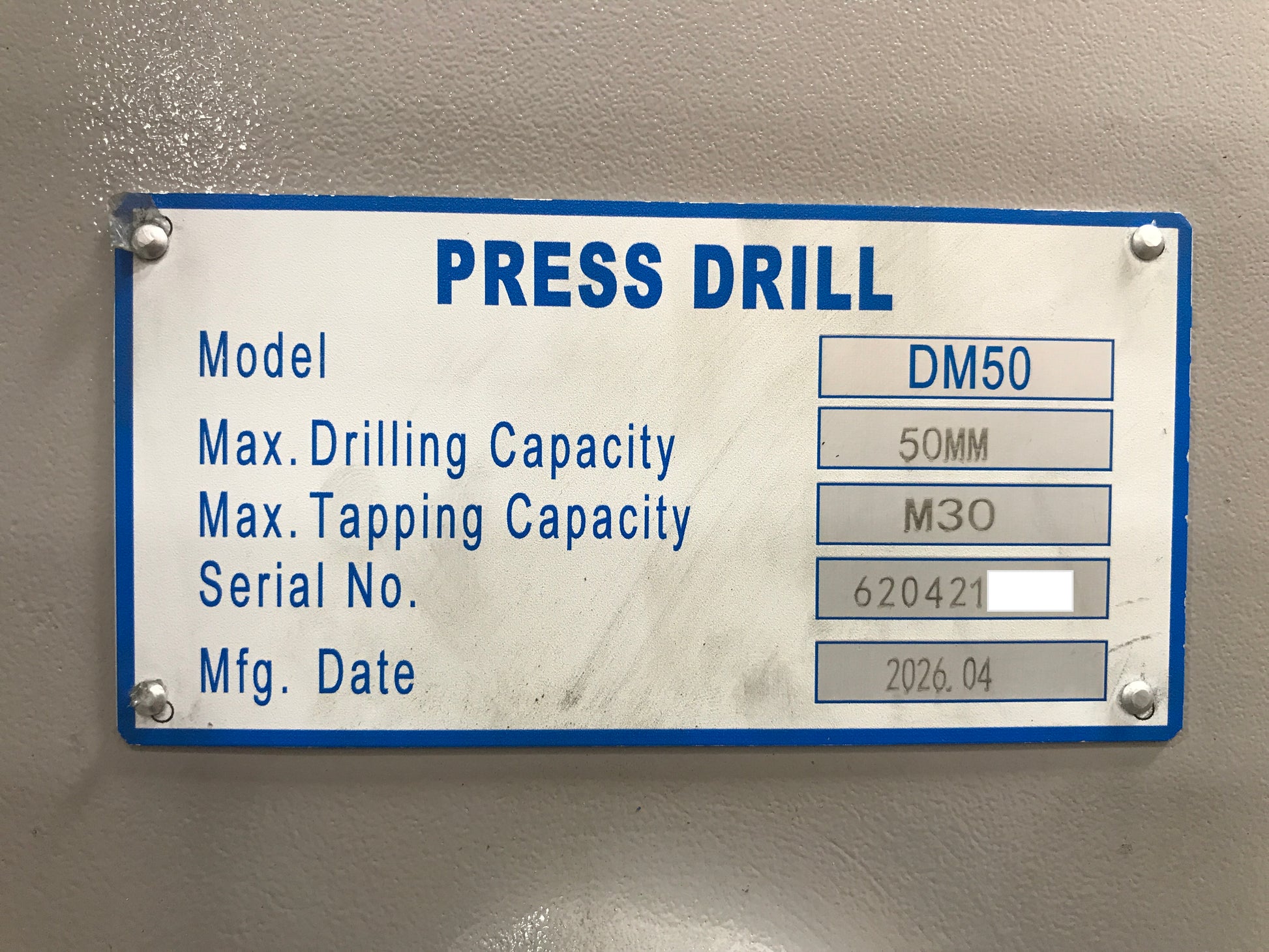

Maximum drilling capacity: 50 mm (1.97")
Maximum tapping capacity: 30 mm (1.18")
Distance from spindle center to column: 360 mm (14.2")
Maximum spindle nose to table: 600 mm (23.6")
Maximum spindle nose to base: 1200 mm (47.2")
Spindle travel: 180 mm (7.1")
Table vertical travel: 560 mm (22")
Table tilt: ±45°
Spindle
Spindle taper: MT5

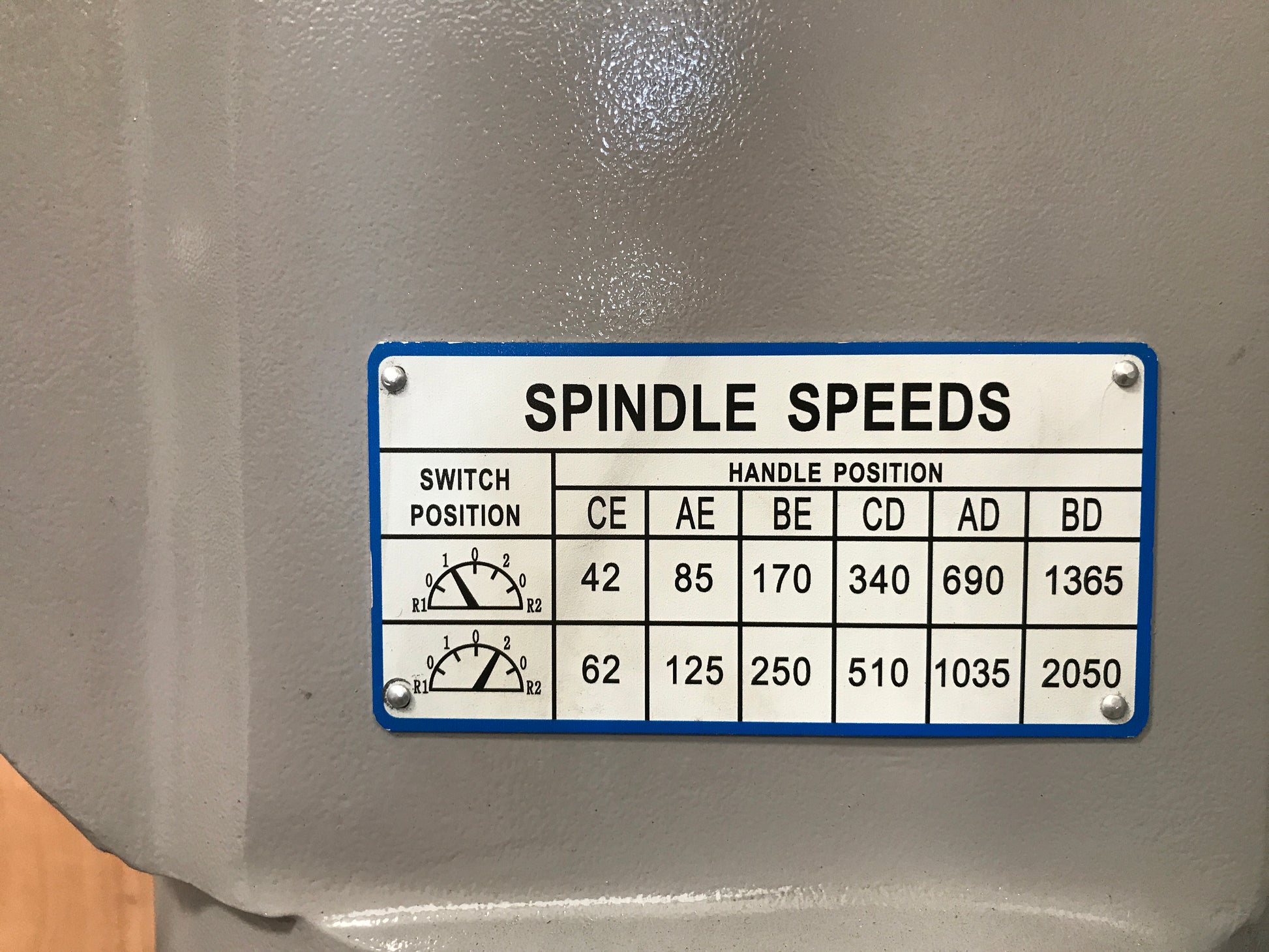

Spindle speed: 42–2050 RPM
Speed ranges: 12 Steps

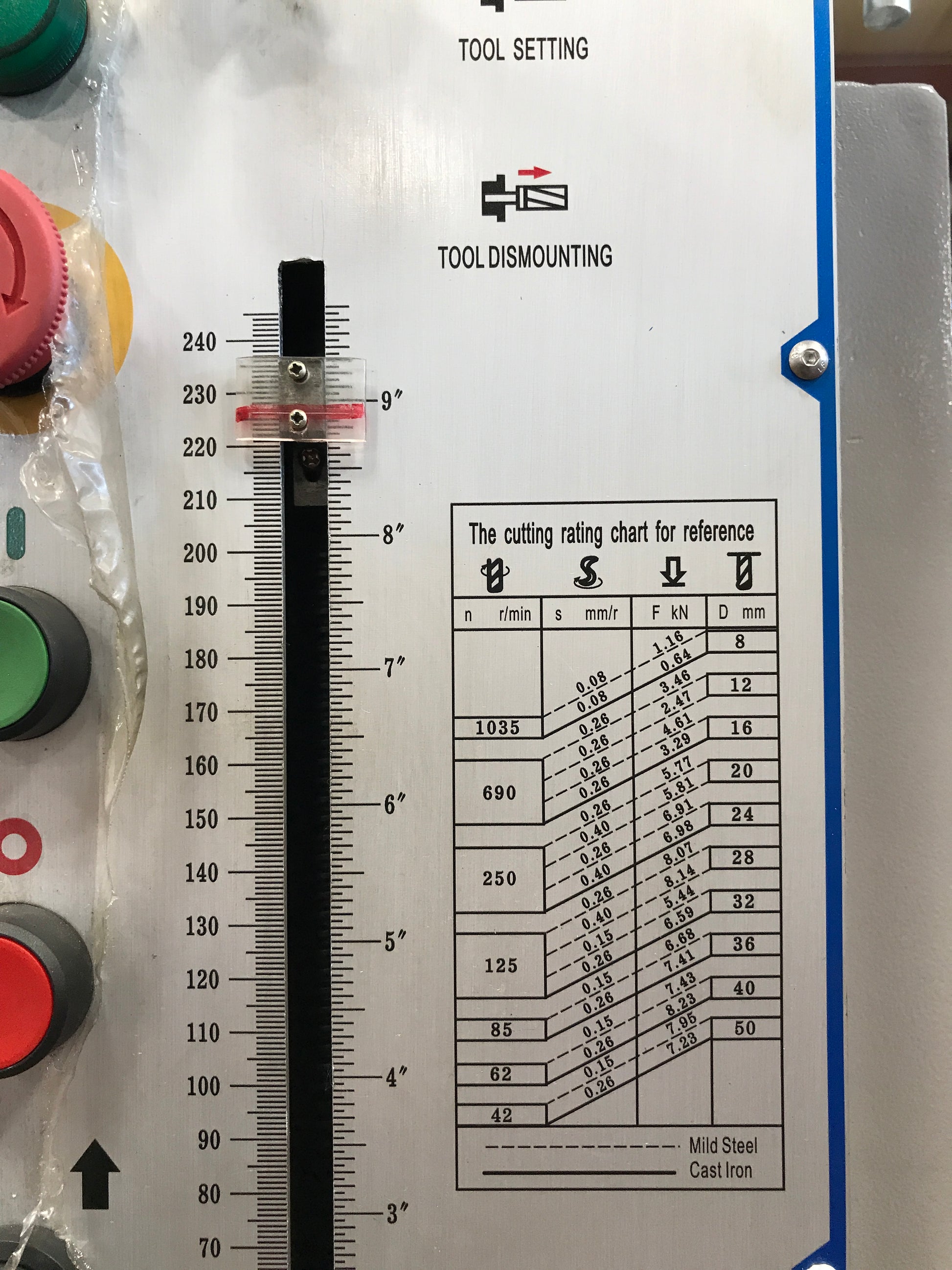

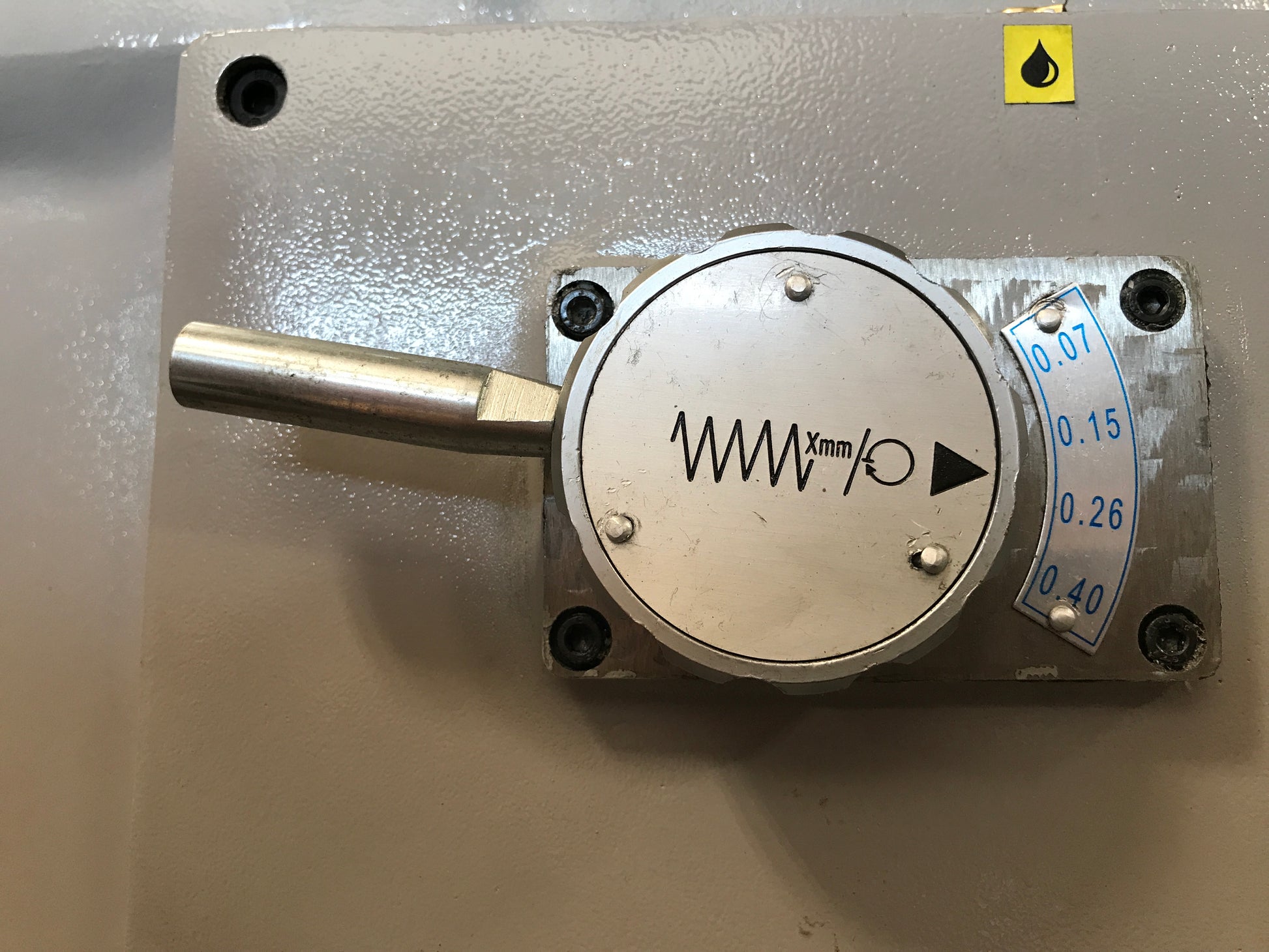

Feed rates: 0.07 / 0.15 / 0.26 / 0.40 mm/rev
Table
Working table size: 410 × 380 mm (16.1" × 15")
Base size: 450 × 440 mm (17.7" × 17.3")
Table T-slots: 2 × 14 mm
Base T-slots: 2 × 18 mm
Column diameter: 160 mm (6.3")
Motor

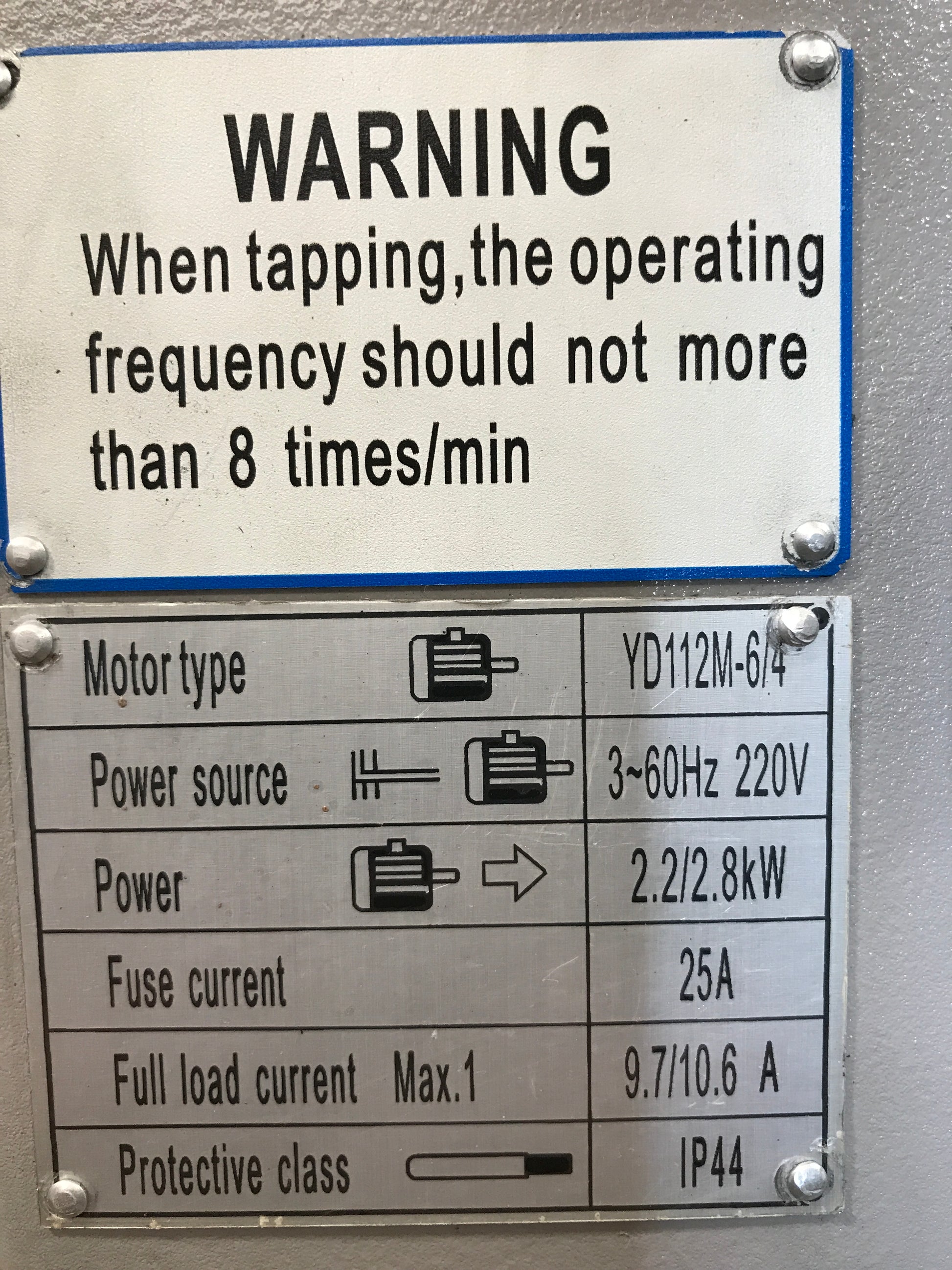

Main motor: 2.2 / 2.8 kW

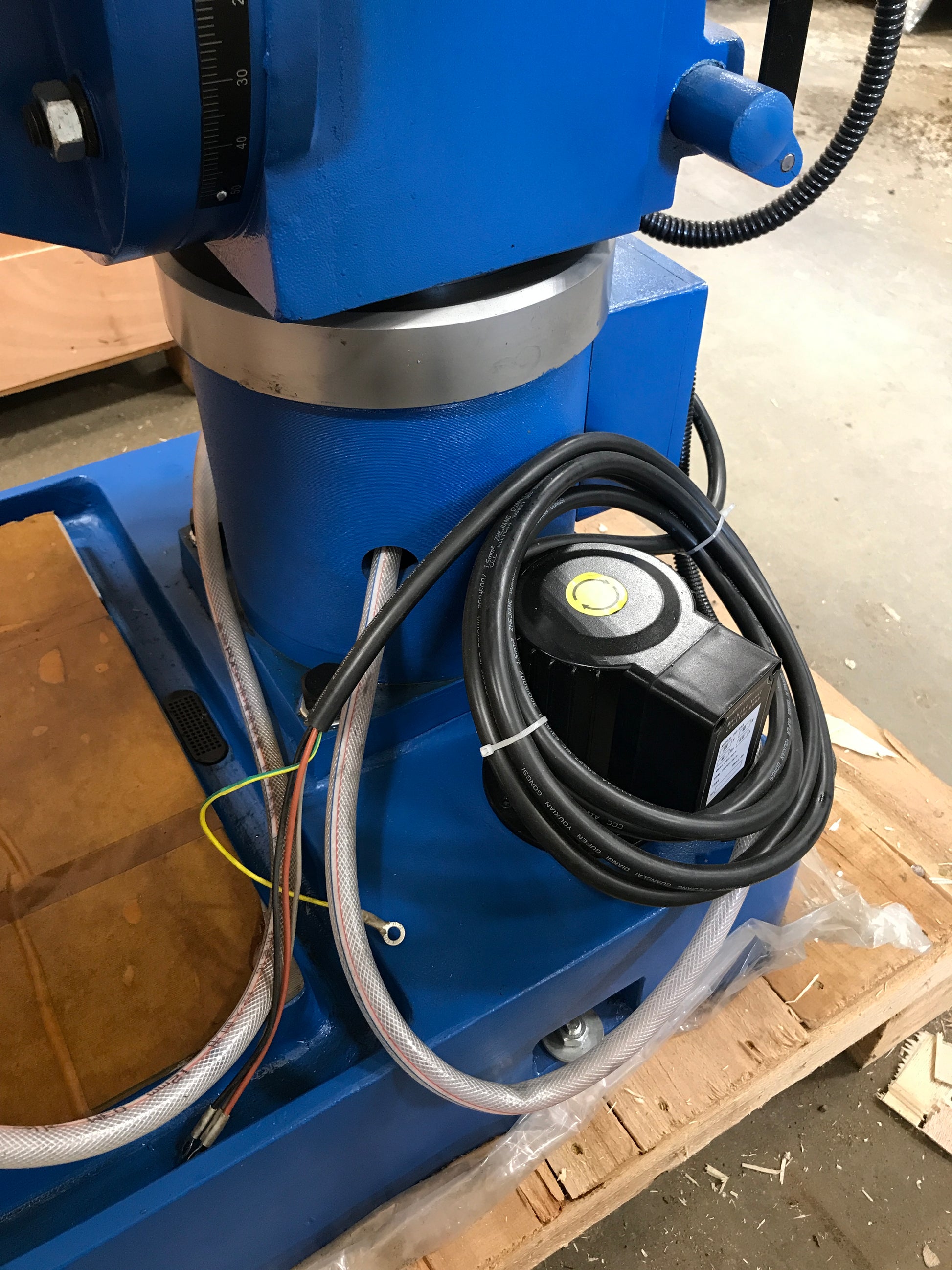

Coolant pump motor: 40 W (6 L/min)
Electromagnetic clutch: 180 W
General
Power requirement: 220V
Machine weight: 680 kg (1,499 lbs)
Shipping weight: 750 kg (1,653 lbs)
Machine dimensions: 1010 × 580 × 2330 mm (39.8" × 22.8" × 91.7")
