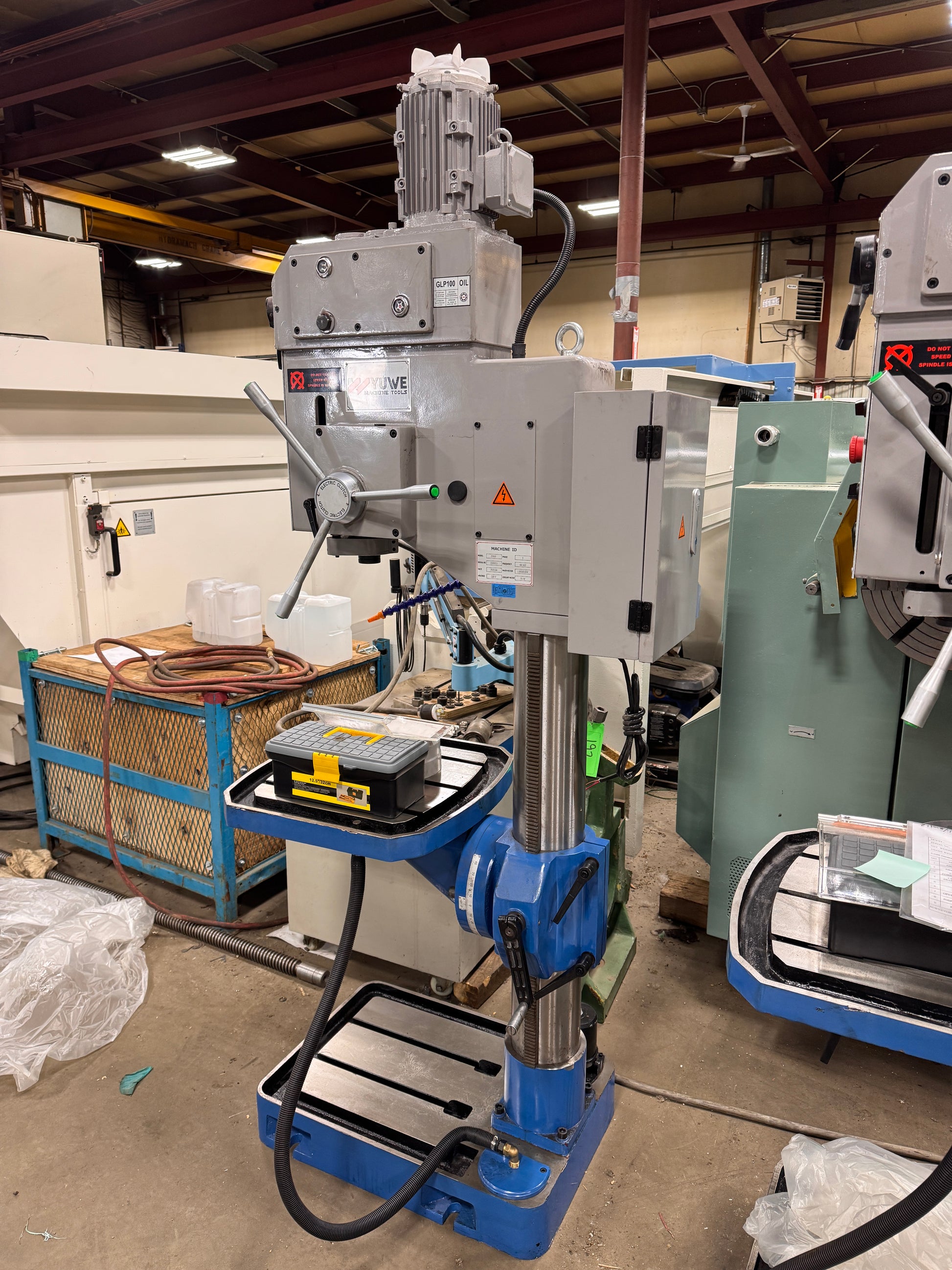

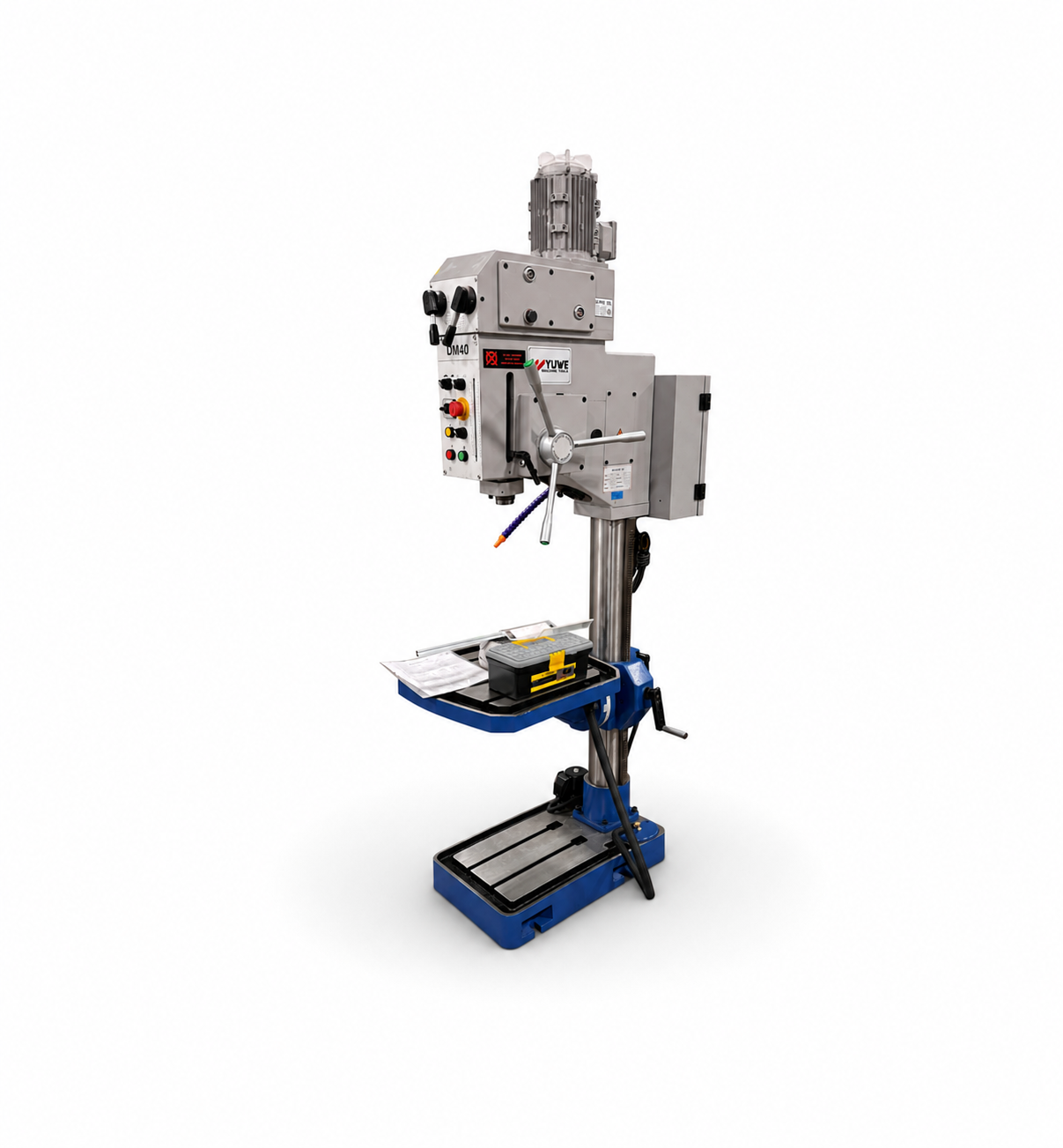

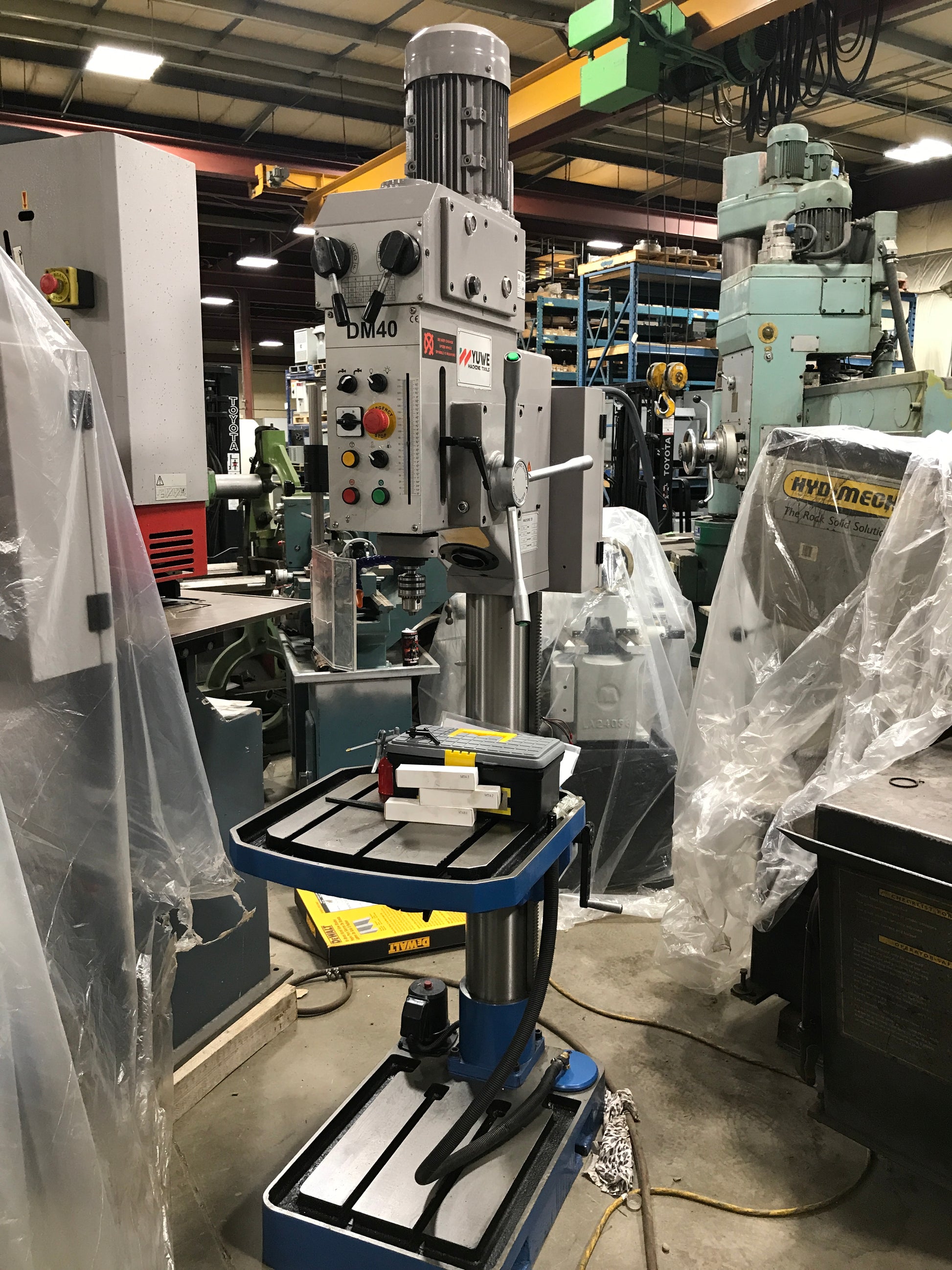

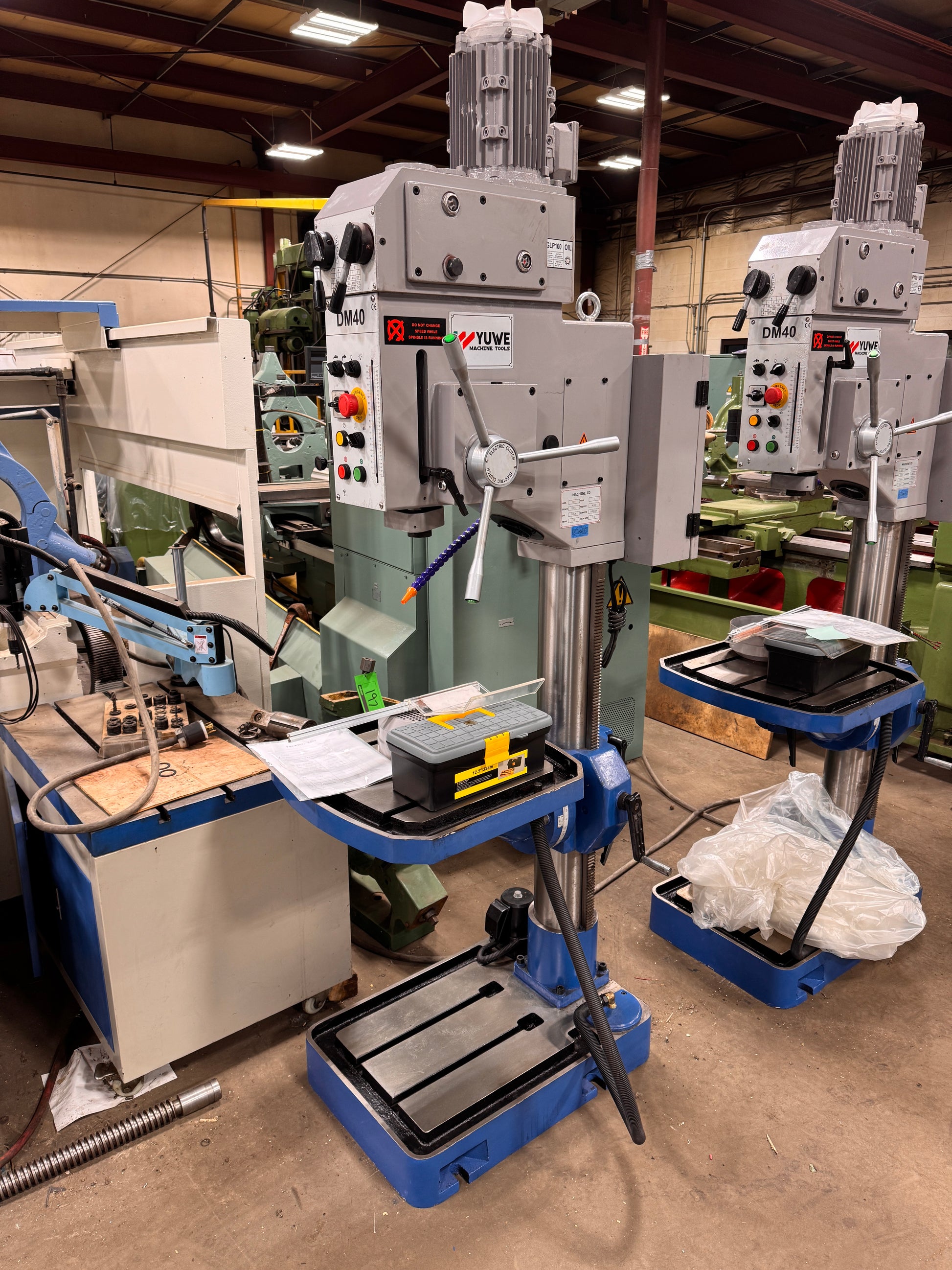

YUWE DM40
The YUWE DM40 is a heavy-duty gear head drilling machine designed for precision drilling, tapping, and general production work. Featuring a 40 mm (1.57") drilling capacity, MT4 spindle taper, gear-driven headstock, and automatic feed, the DM40 delivers excellent torque, rigidity, and reliability for machine shops, fabrication facilities, maintenance departments, and industrial manufacturing.
Built with a powerful two-speed motor, coolant system, adjustable work table, and CSA / ETL Special Inspection approval, the YUWE DM40 is engineered for dependable, long-term performance in demanding industrial environments.
Specifications
Capacity
Maximum drilling capacity: 40 mm (1.57")
Distance from spindle center to column: 350 mm (13.8")
Spindle travel: 180 mm (7.1")
Maximum spindle nose to table: 770 mm (30.3")
Maximum spindle nose to base: 1215 mm (47.8")
Spindle

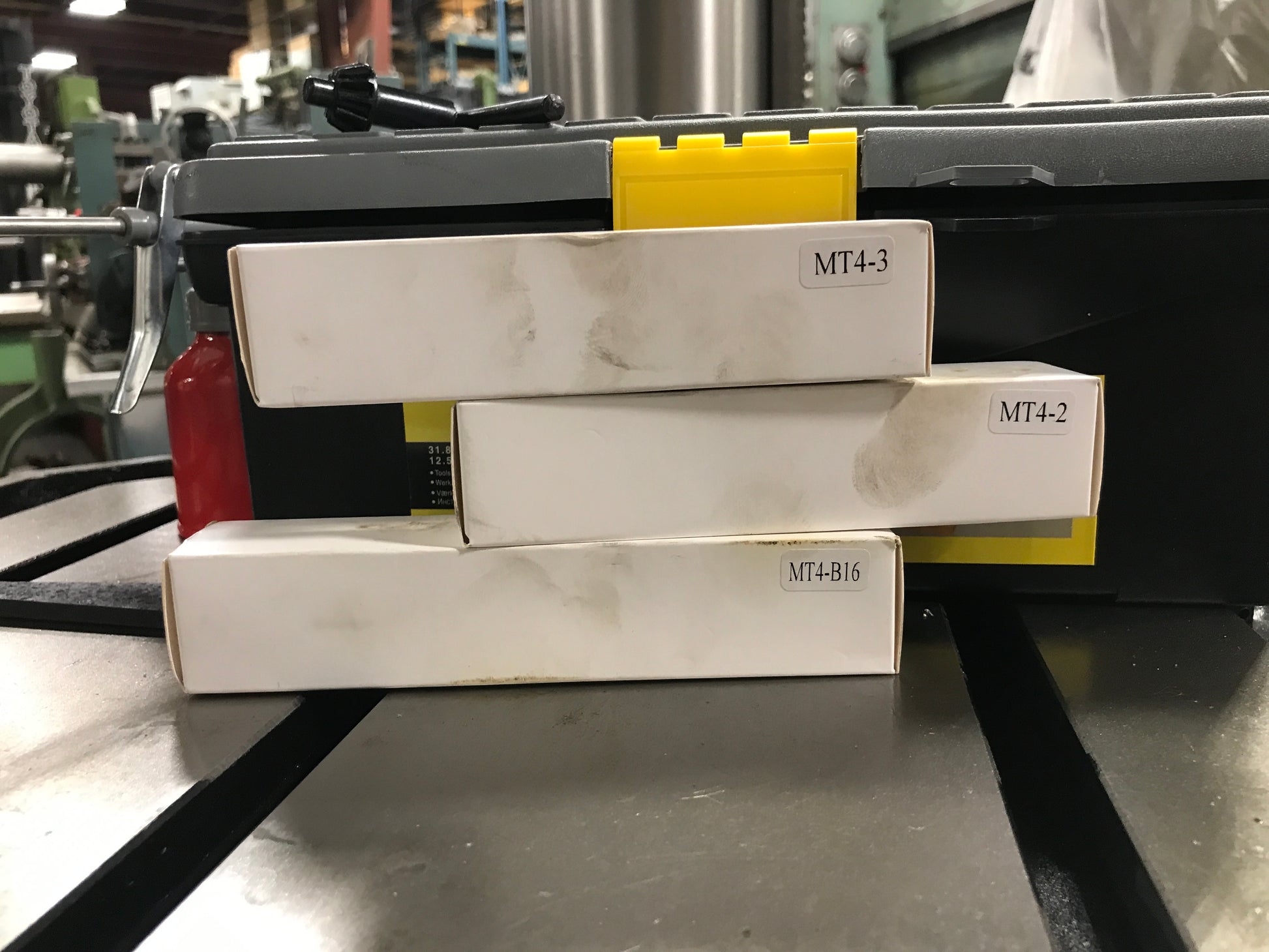

Spindle taper: MT4
Spindle speed: 50–1450 RPM

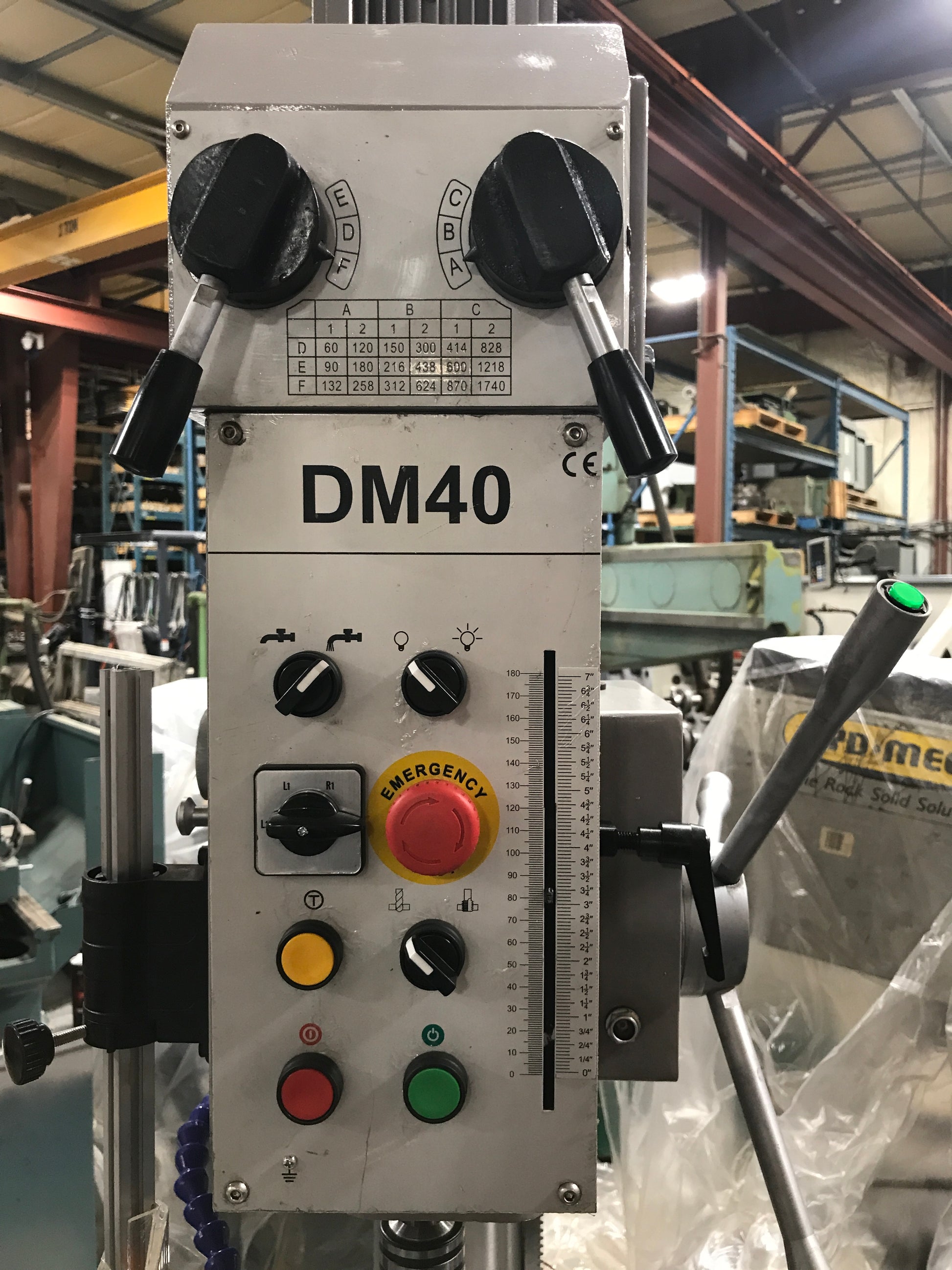

Speed ranges: 6 Steps
Feed rates: 0.1 / 0.2 mm/rev
Table
Working table size: 560 × 560 mm (22" × 22")
Base size: 730 × 500 mm (28.7" × 19.7")
T-slot width: 18 mm (0.7")
T-slot pitch: 150 mm (5.9")

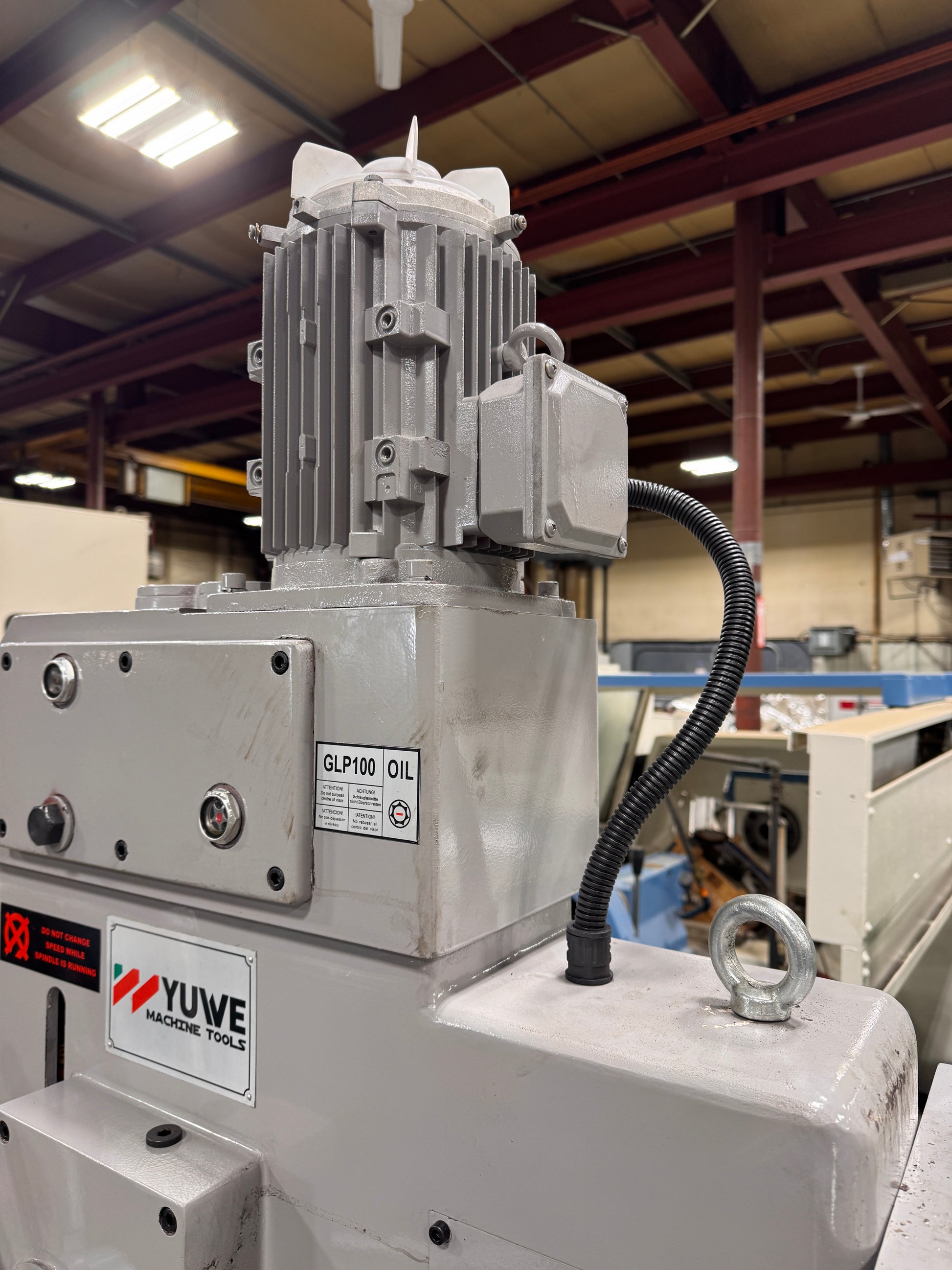

Motor
Main motor: 1.5 / 0.85 kW
Coolant pump motor: 75 W

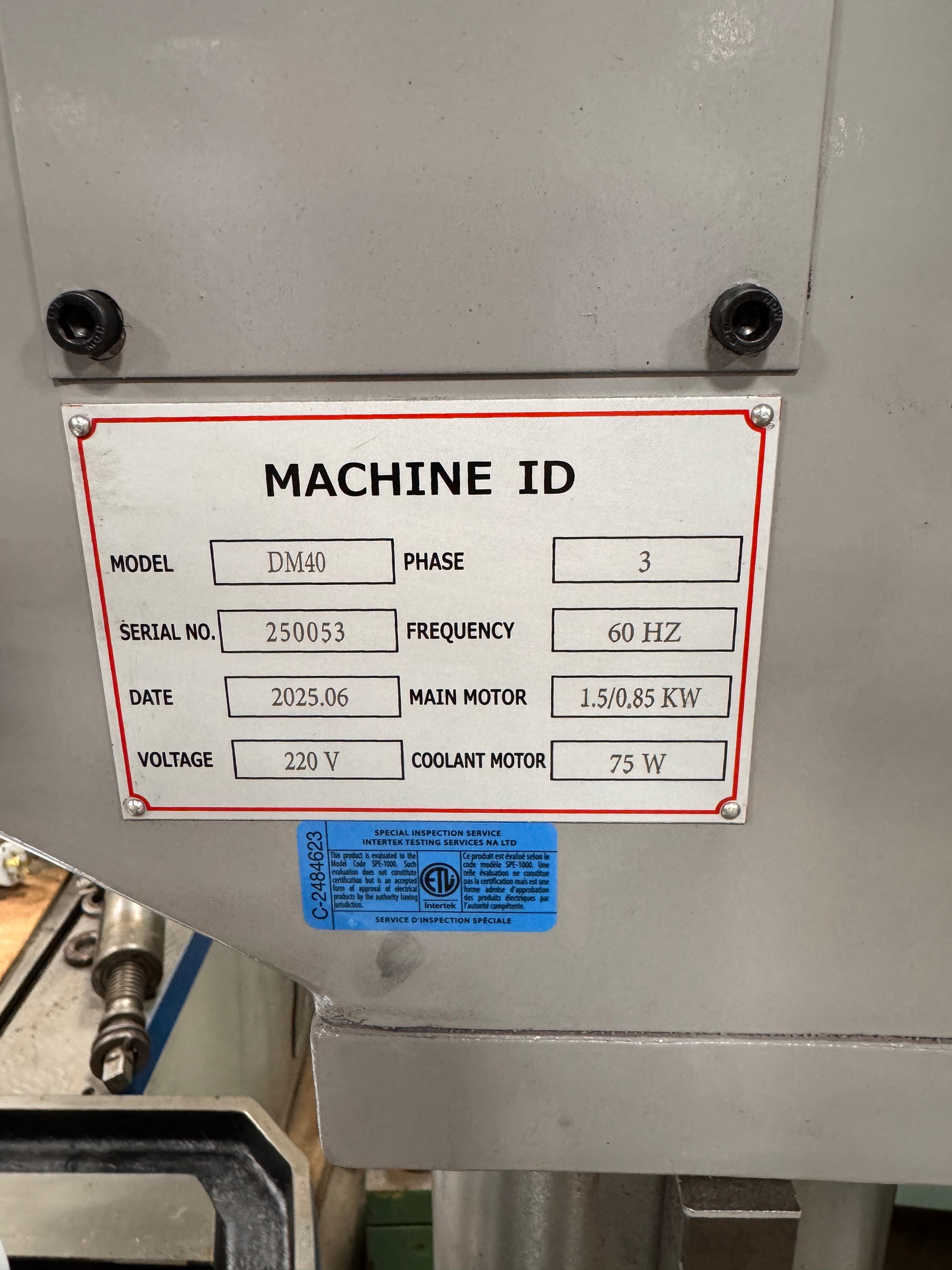

General
Certification: ETL / CSA Special Inspection Approved
Power requirement: 220V / 3 Phase / 60Hz
Lubrication: GLP100 Oil
Machine weight: 460 kg (1,014 lbs)
Shipping weight: 610 kg (1,345 lbs)
Machine dimensions: 940 × 560 × 2260 mm (37" × 22" × 89")
Packing dimensions: 1150 × 700 × 2280 mm (45" × 28" × 90")
