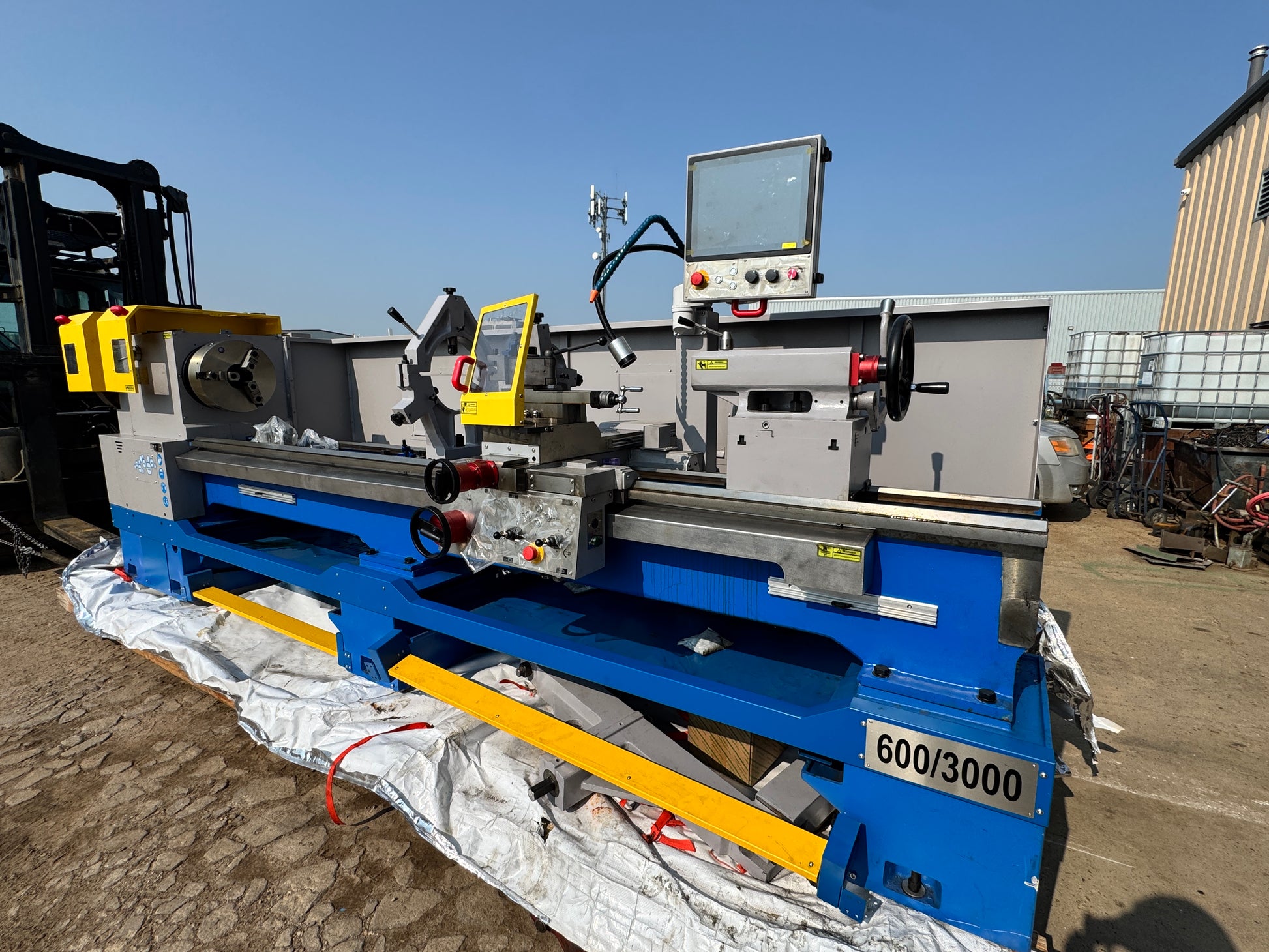

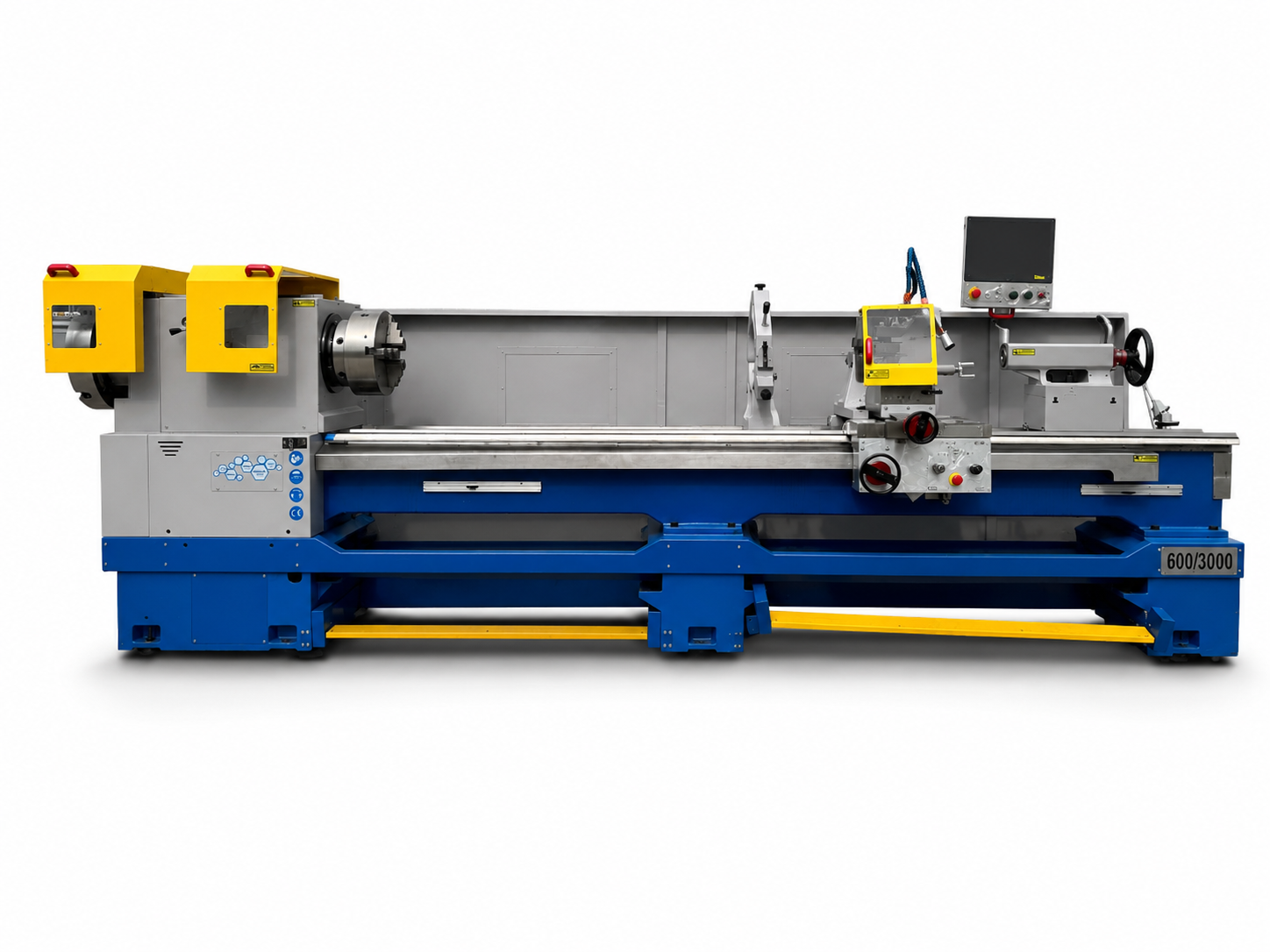

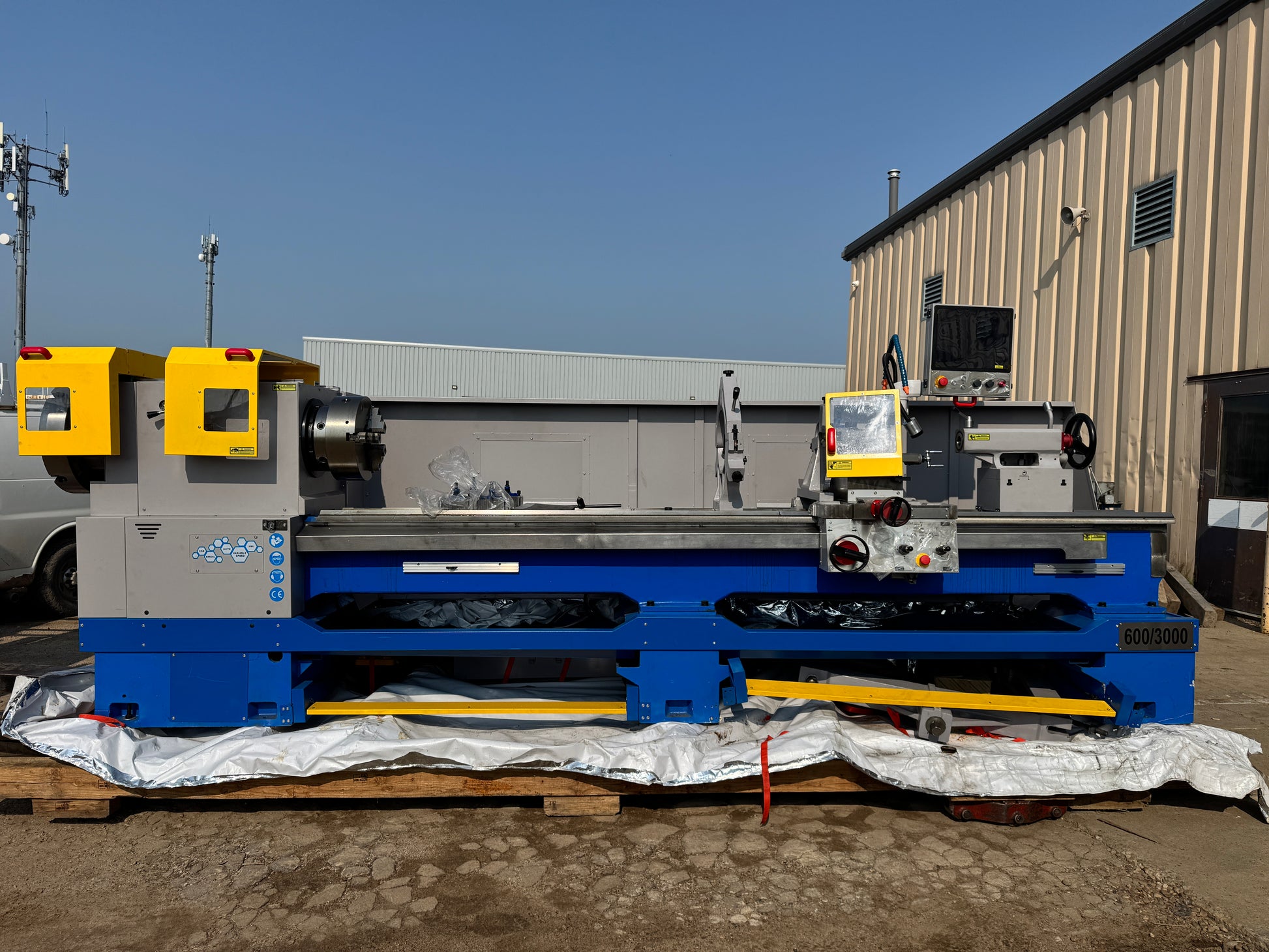

STANKO Smart Lathe S26120T
The STANKO Smart Lathe S26120T is a heavy-duty smart pipe and engine lathe designed for machining large shafts, hydraulic cylinders, rollers, and oilfield tubular components. Featuring a 650 mm (25") swing over bed, 3000 mm (120") between centers, and an extra-large 140 mm (5.5") spindle bore, the S26120T is engineered for high-torque turning of oversized workpieces.
Equipped with a 15" Smart HMI touchscreen, servo-assisted X/Z rapid traverse, variable spindle speed, and STANKO Smart Lathe Control Gen.2, the S26120T combines the flexibility of a conventional engine lathe with the productivity of a smart machining system. It is ideal for heavy fabrication shops, oil & gas service companies, mining equipment repair, steel mills, and industrial maintenance facilities.
Specifications
Capacity
Swing over bed: 650 mm (25")
Swing over cross slide: 380 mm (15")
Max. turning length: 3000 mm (120")
Bed width: 406 mm (16")
Spindle

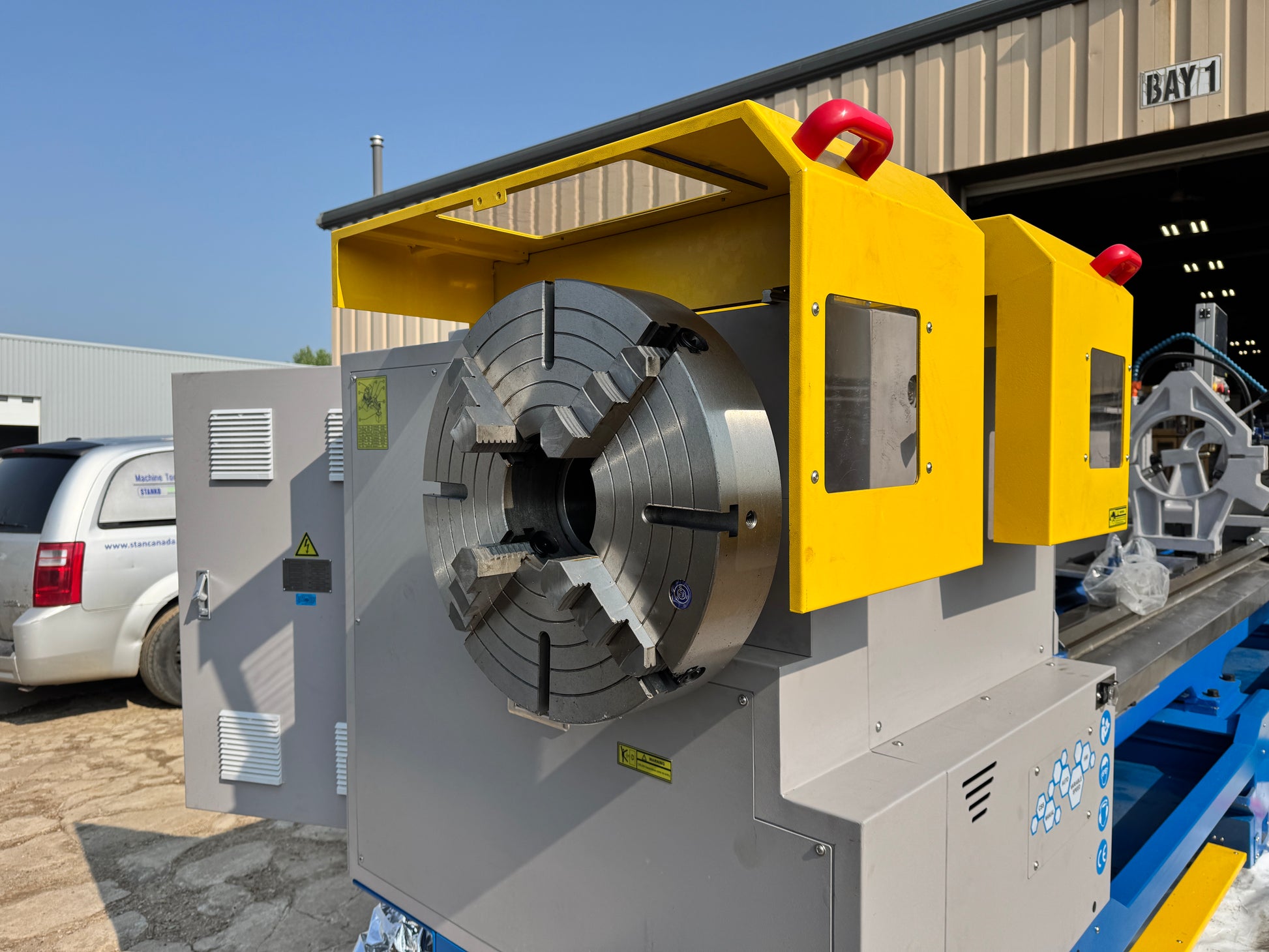

Front chuck: 20" Independent 4 Jaw Chuck

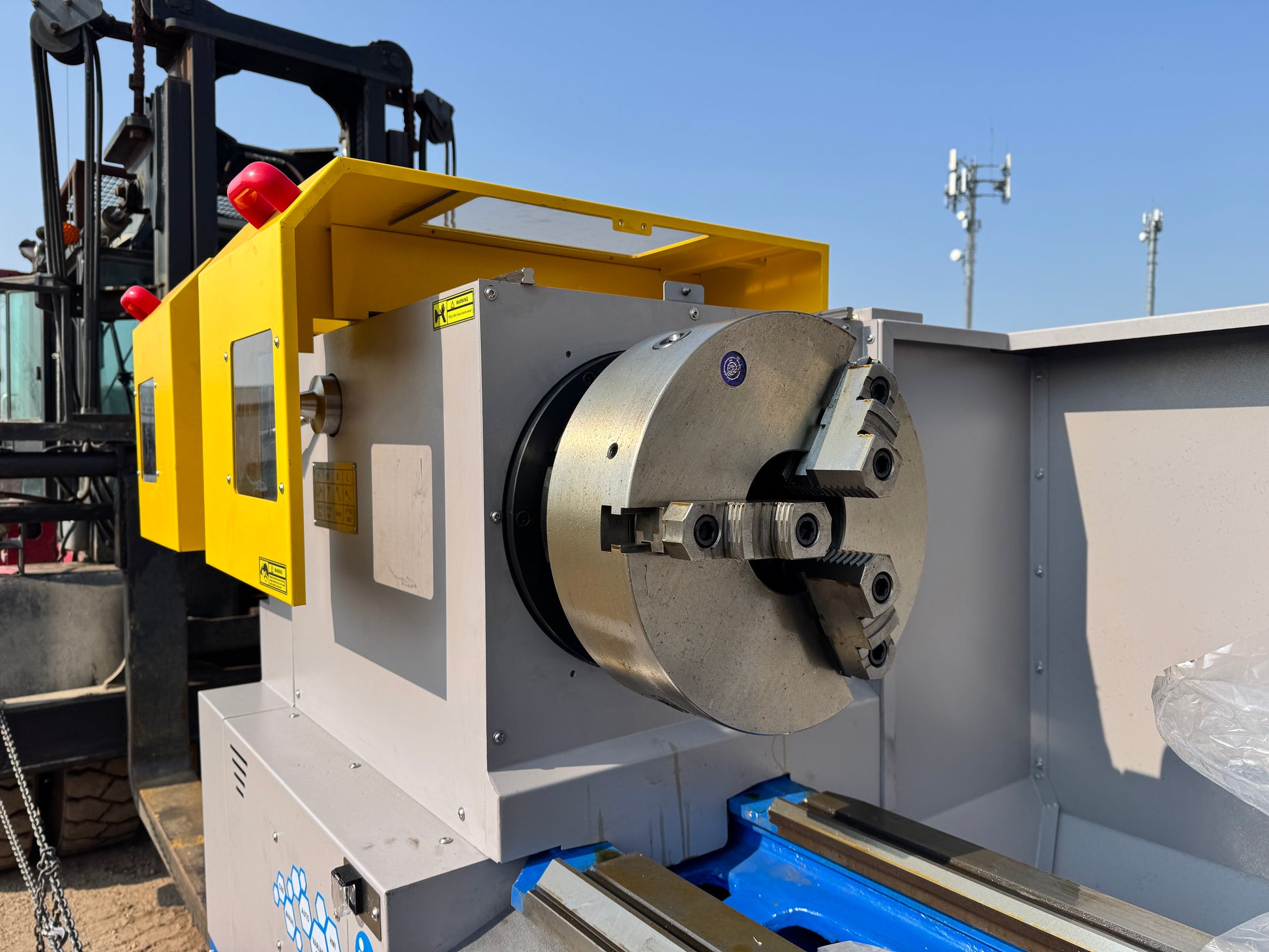

Rear chuck: 14" 3 Jaw Chuck
Spindle speed: 20–600 RPM

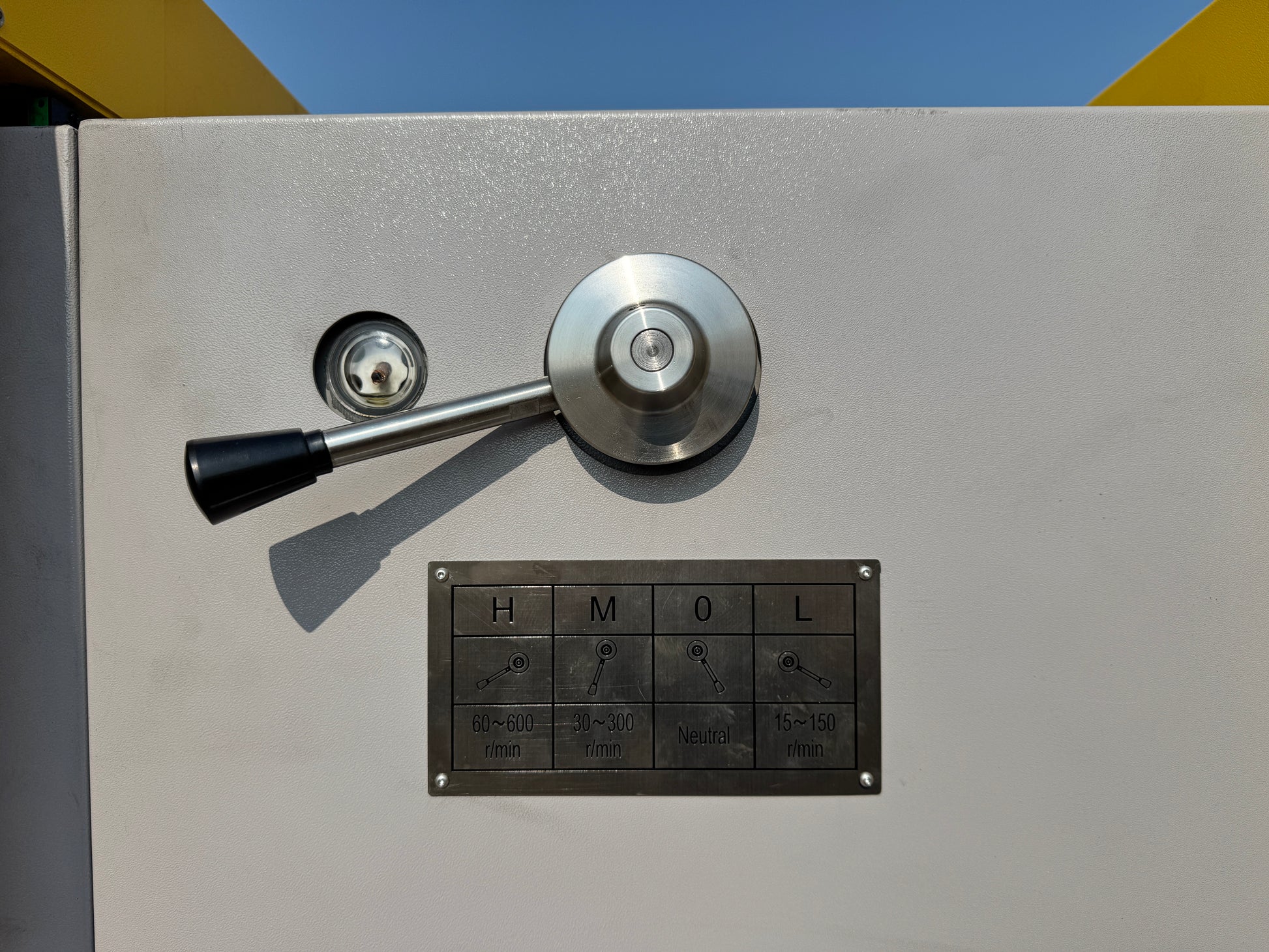

Speed ranges: 3 (0–150 / 0–300 / 0–600 RPM)
Variable speed drive
Spindle bore: 140 mm (5.5")
Spindle nose: A2-11
Internal spindle taper: Metric 150

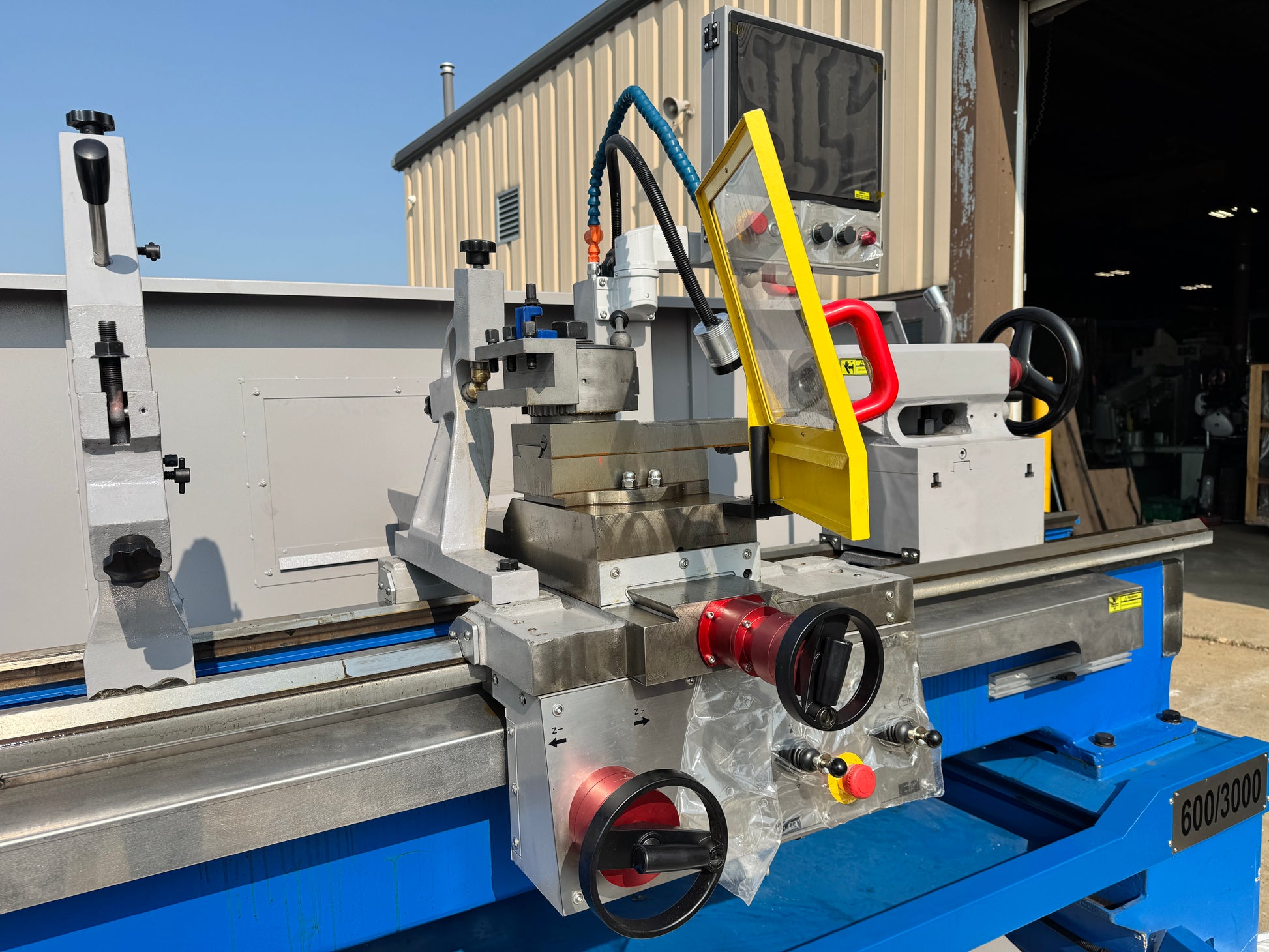

Carriage
Tool post travel: 140 mm
X-axis travel: 315 mm
Rapid traverse: X & Z Axes

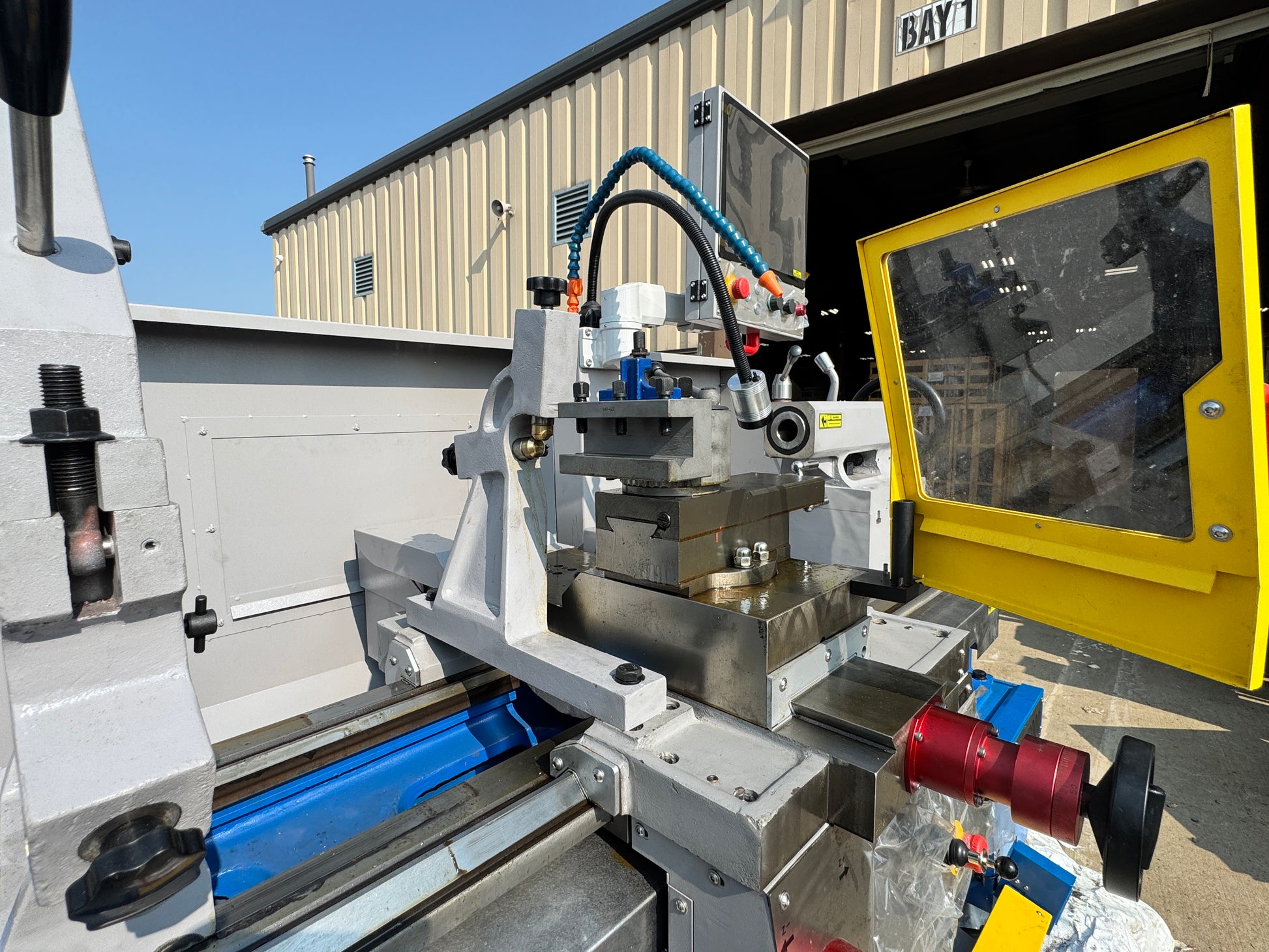

Tool Post
Heavy Duty Quick Change Tool Post
Tool holder size: 32 × 32 mm
Tailstock
Tailstock type: Manual
Quill stroke: 152 mm (6")
Quill diameter: 76 mm (3")
Quill taper: MT5
Threading
Metric threads
Imperial threads
Module threads
Diametral Pitch threads
Motor
Main motor: 15 kW (20 HP)
Coolant pump
Rapid traverse drive
General
Machine weight: 4590 kg (10,119 lbs)

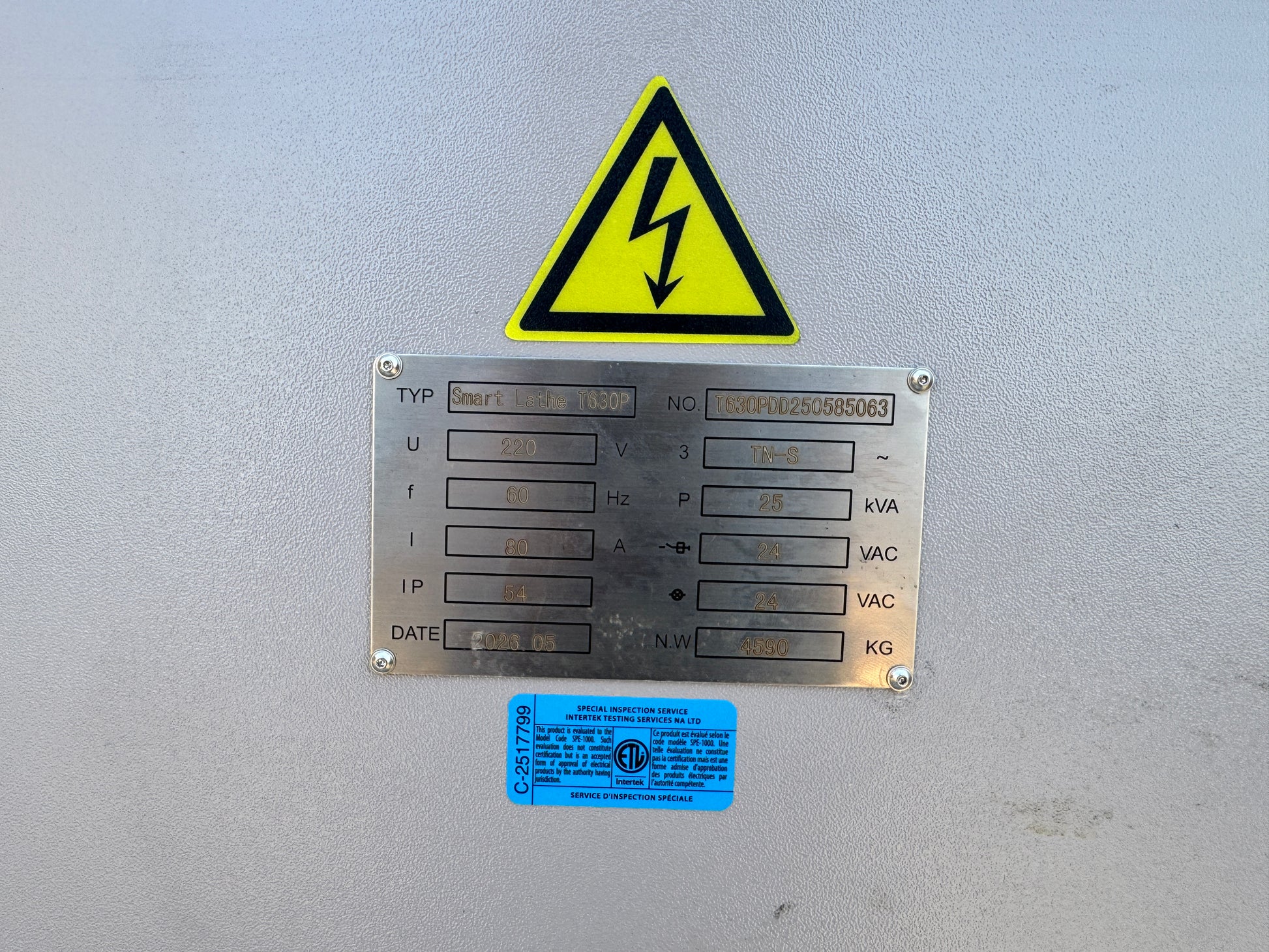

Power requirement: 220V / 3 Phase / 80A
Frequency: 50/60 Hz
Protection class: IP54
Standard Features
20" Independent 4 Jaw Front Chuck
14" Rear 3 Jaw Chuck

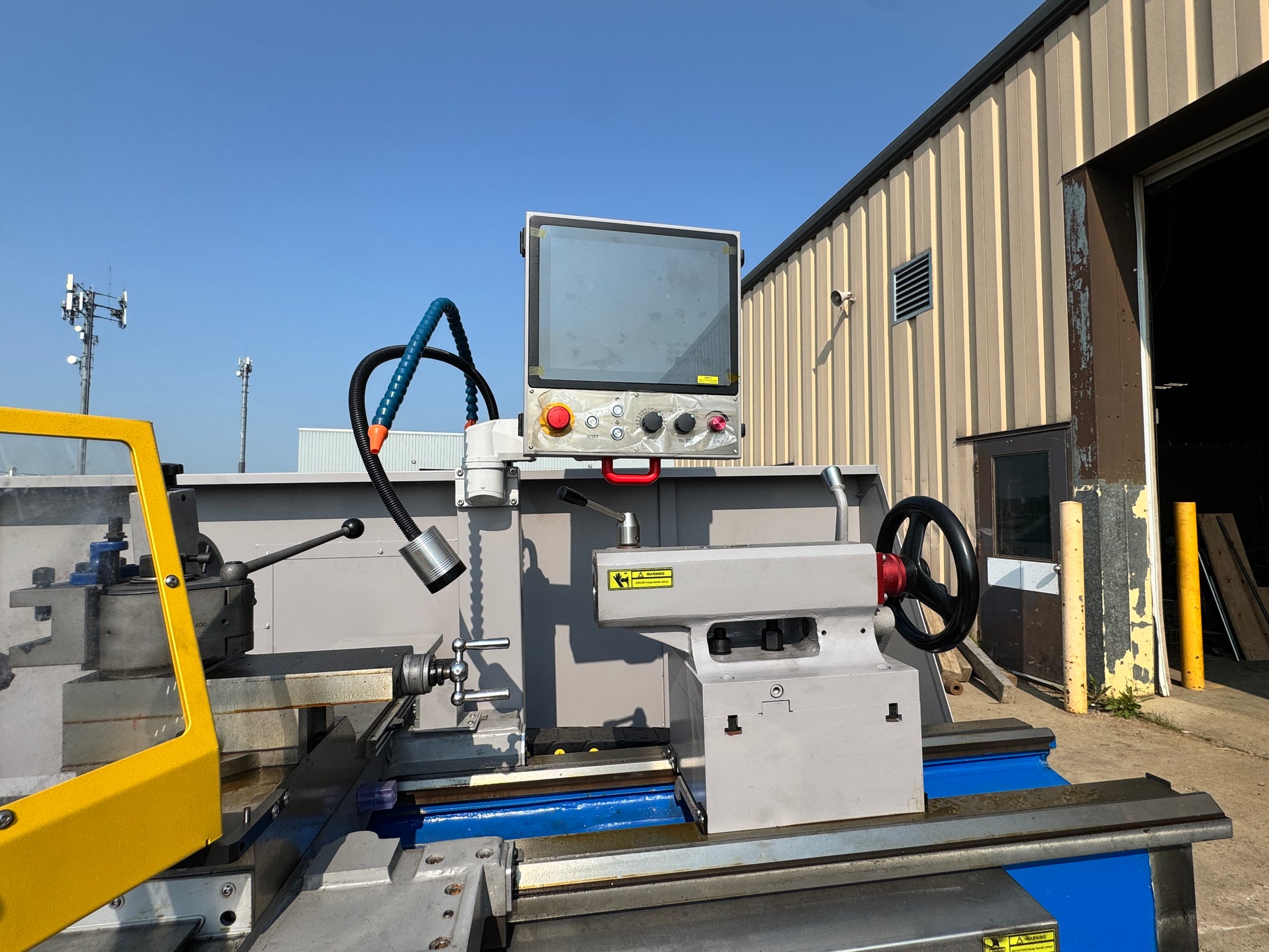

15" Smart Touch Screen HMI
STANKO SMART LATHE CONTROL Gen.2
Variable Spindle Speed Control
Servo-Assisted Rapid Traverse (X/Z)
Heavy Duty Quick Change Tool Post
Large 140 mm (5.5") Spindle Bore
LED Work Lamp
Manual Lubrication System
Full Rear Splash Guard

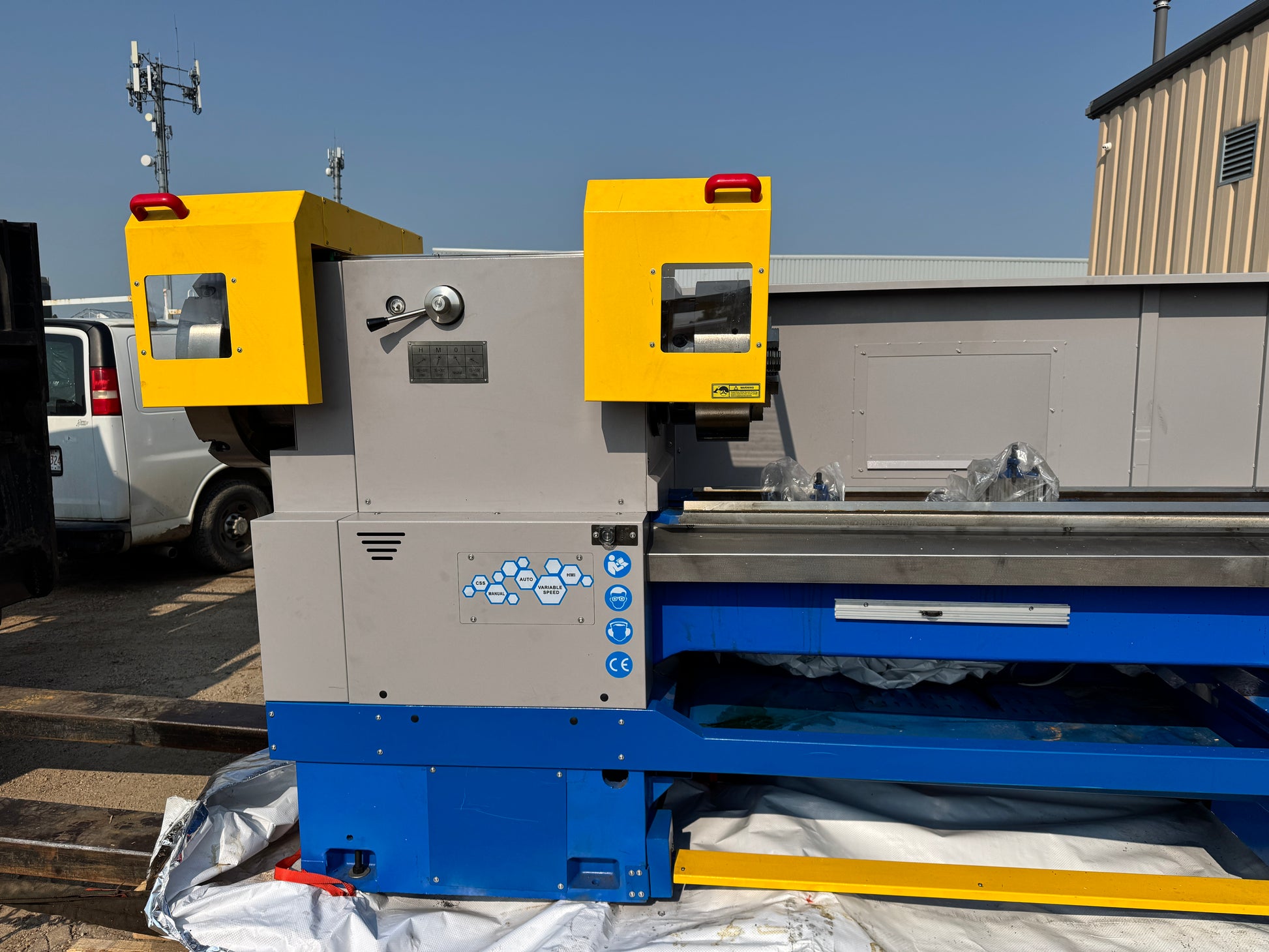

Front & Rear Chuck Safety Guards with Safety Interlock
Coolant System
CSA / UL Electrical Components
Emergency Stop System
Industrial Heavy-Duty Cast Iron Bed
Optional Accessories
Digital Readout (DRO)

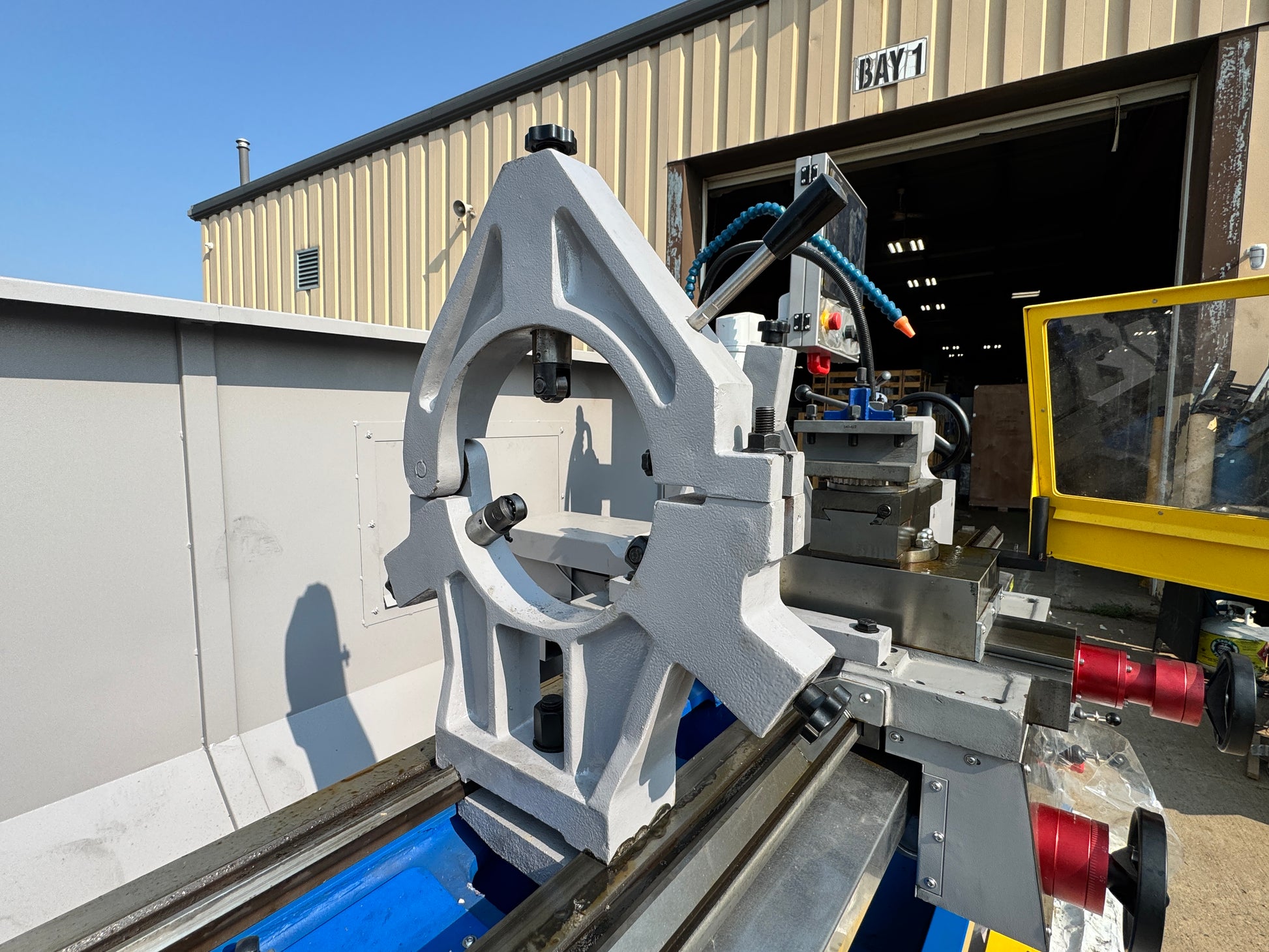

Hydraulic Steady Rest
Manual Steady Rest
Follow Rest
Live Center
Carbide Tooling Package
Additional Tool Holders
Coolant Filtration System
Tool Cabinet
Installation & Operator Training
