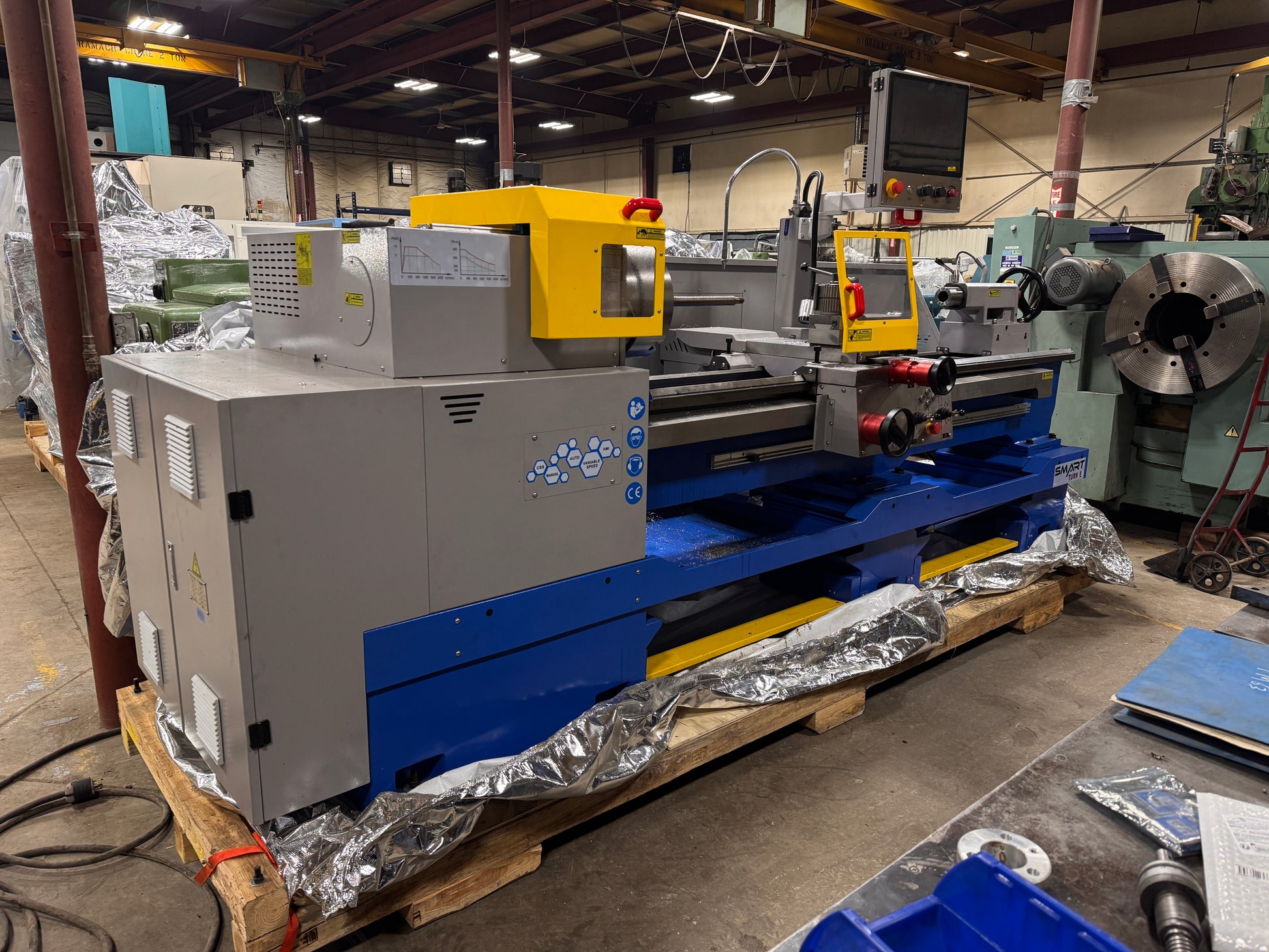

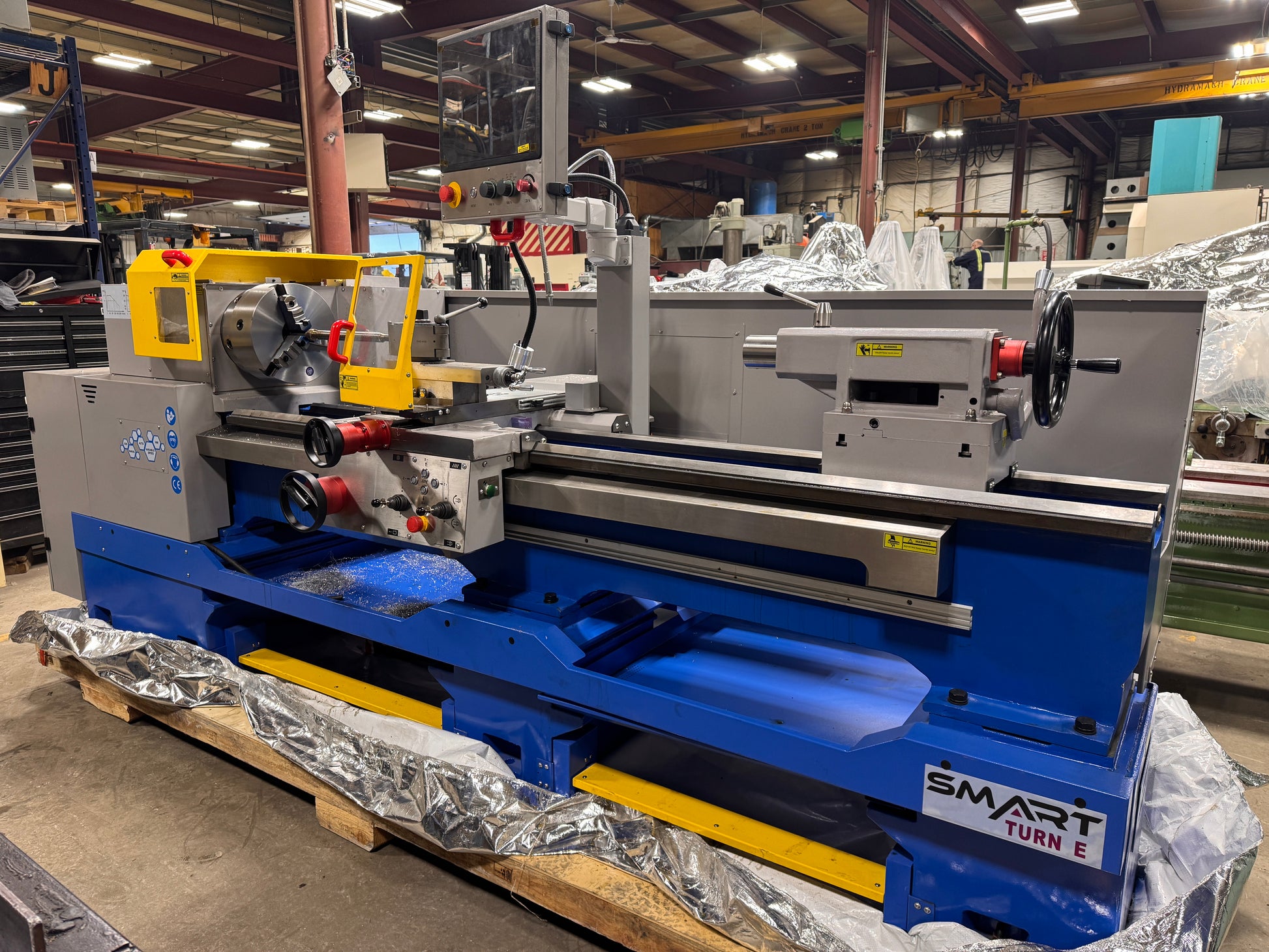

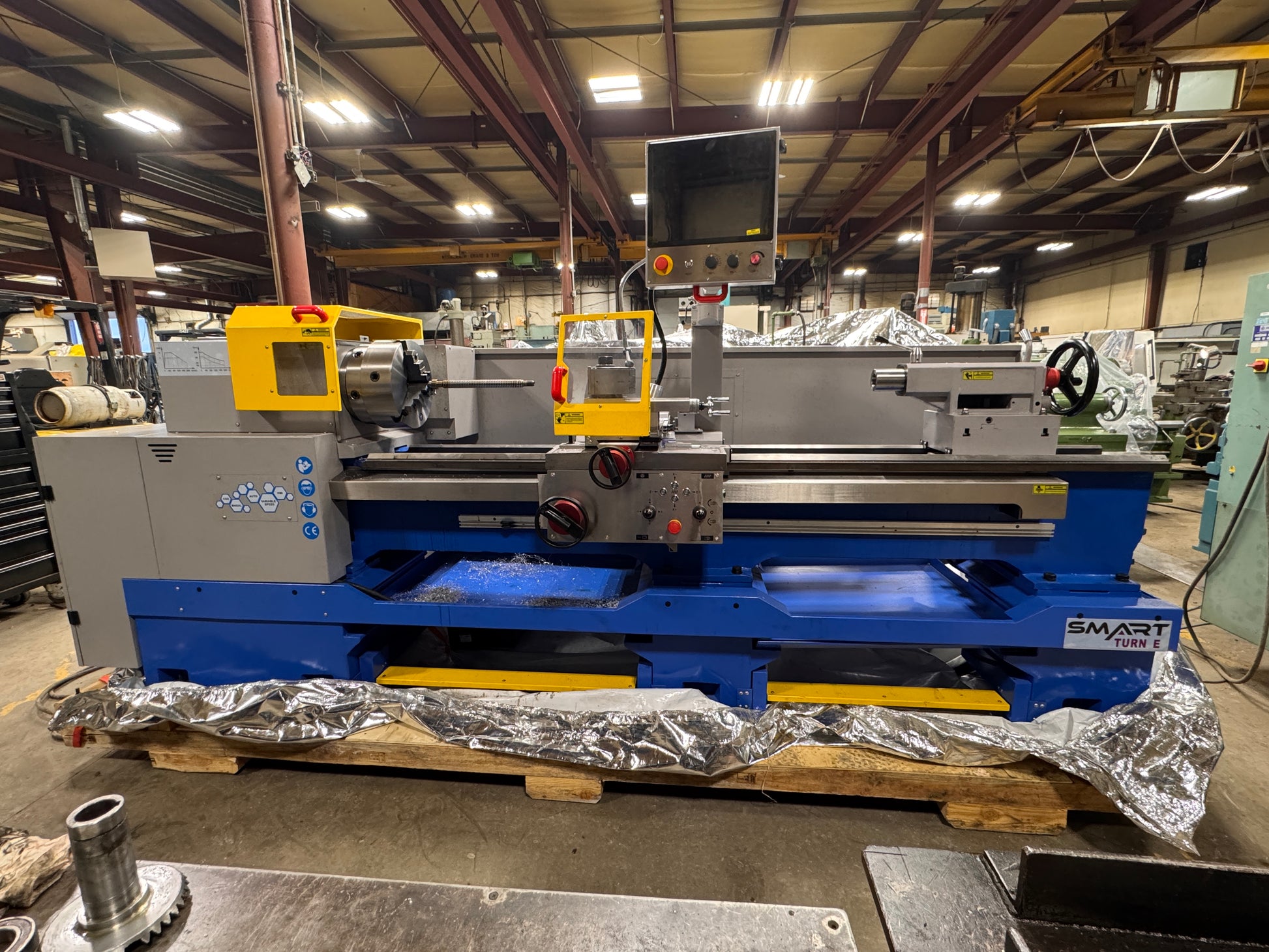

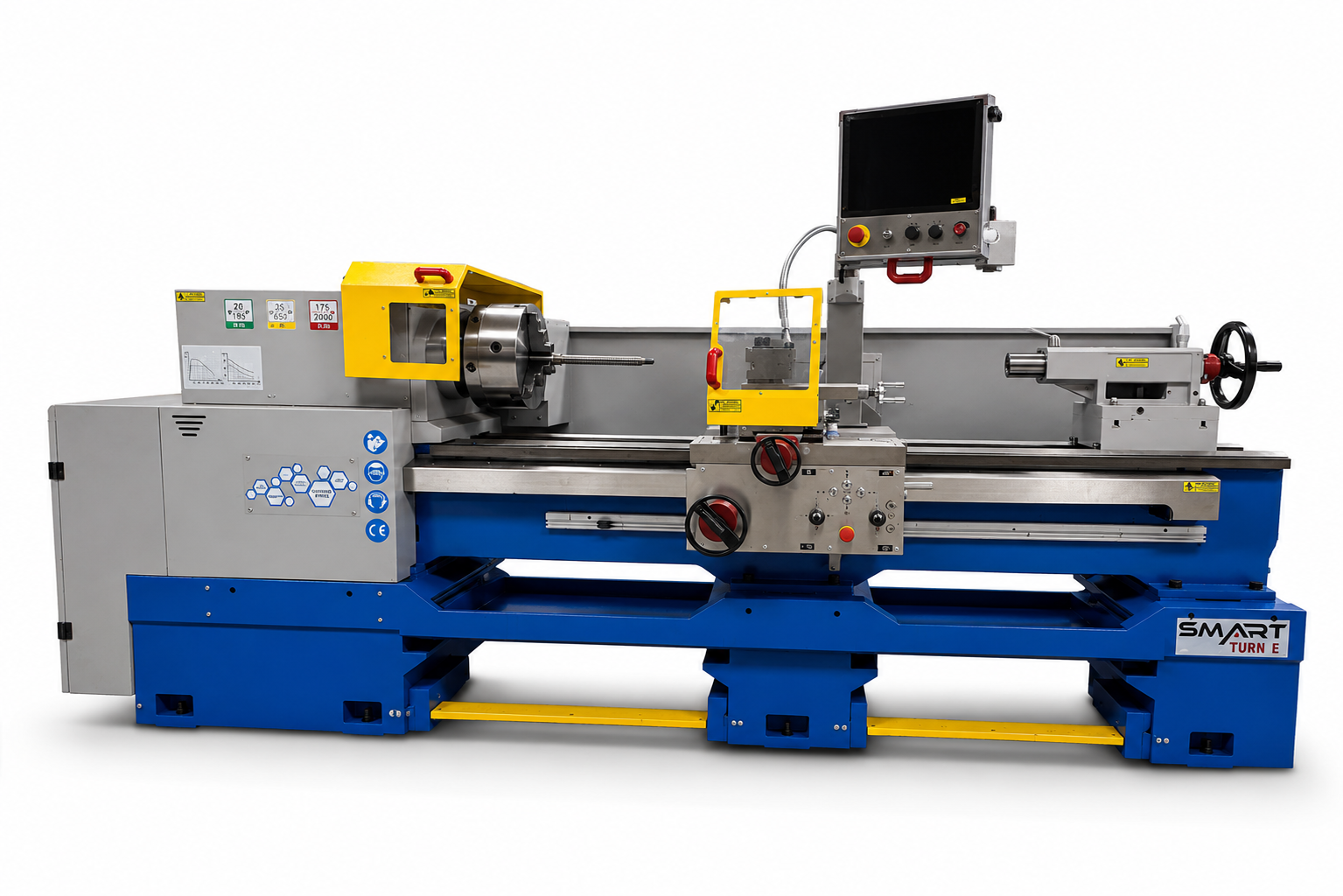

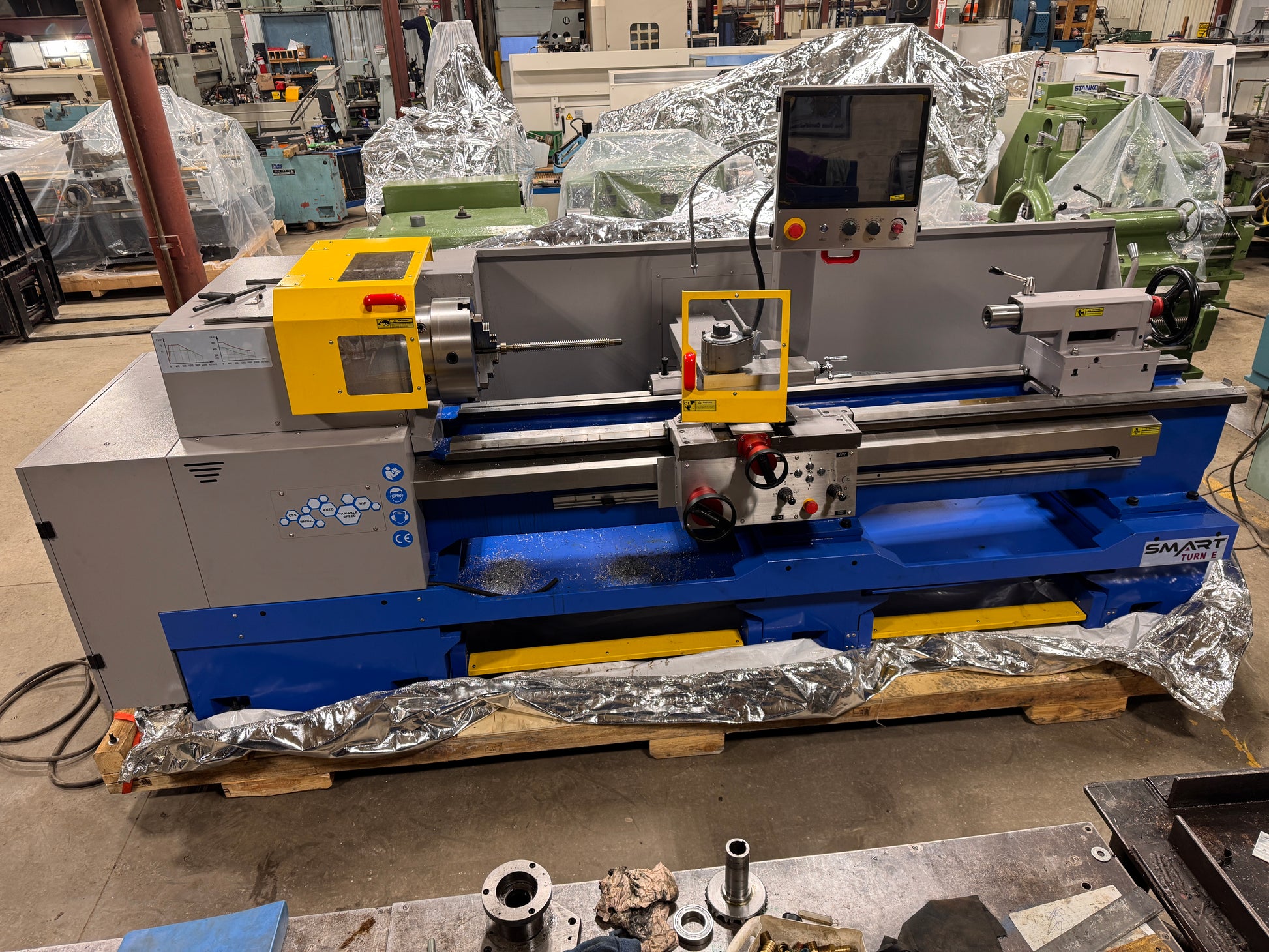

The STANKO Smart Lathe S2080E-HD 15kW is an industrial smart engine lathe designed for precision turning, automatic threading, taper turning, grooving, and repair-shop production work. Equipped with a 15” touchscreen control system, servo-driven X/Z axes, precision ball screws, and STANKO Smart Lathe Control Gen.2, the S2080E combines the simplicity of a manual lathe with advanced smart automation.
Built for machine shops, maintenance departments, oilfield service, heavy equipment repair, and industrial manufacturing, the S2080E-HD delivers high torque, precision machining, and efficient setup for repetitive turning operations without the complexity of a full CNC turning center.
Specifications
Capacity
Swing over bed: 500 mm
Swing over cross slide: 300 mm
Max. turning length: 2000 mm
Bed width: 400 mm
Spindle
Chuck size: 315 mm (12.5”)
Spindle speed range: 20 – 2000 RPM
Variable speed drive: Stepless
Spindle bore: 104 mm (4.1")
Spindle nose: D1-8
Carriage
Tool post travel: 140 mm
X-axis travel: 250 mm
Tool Post

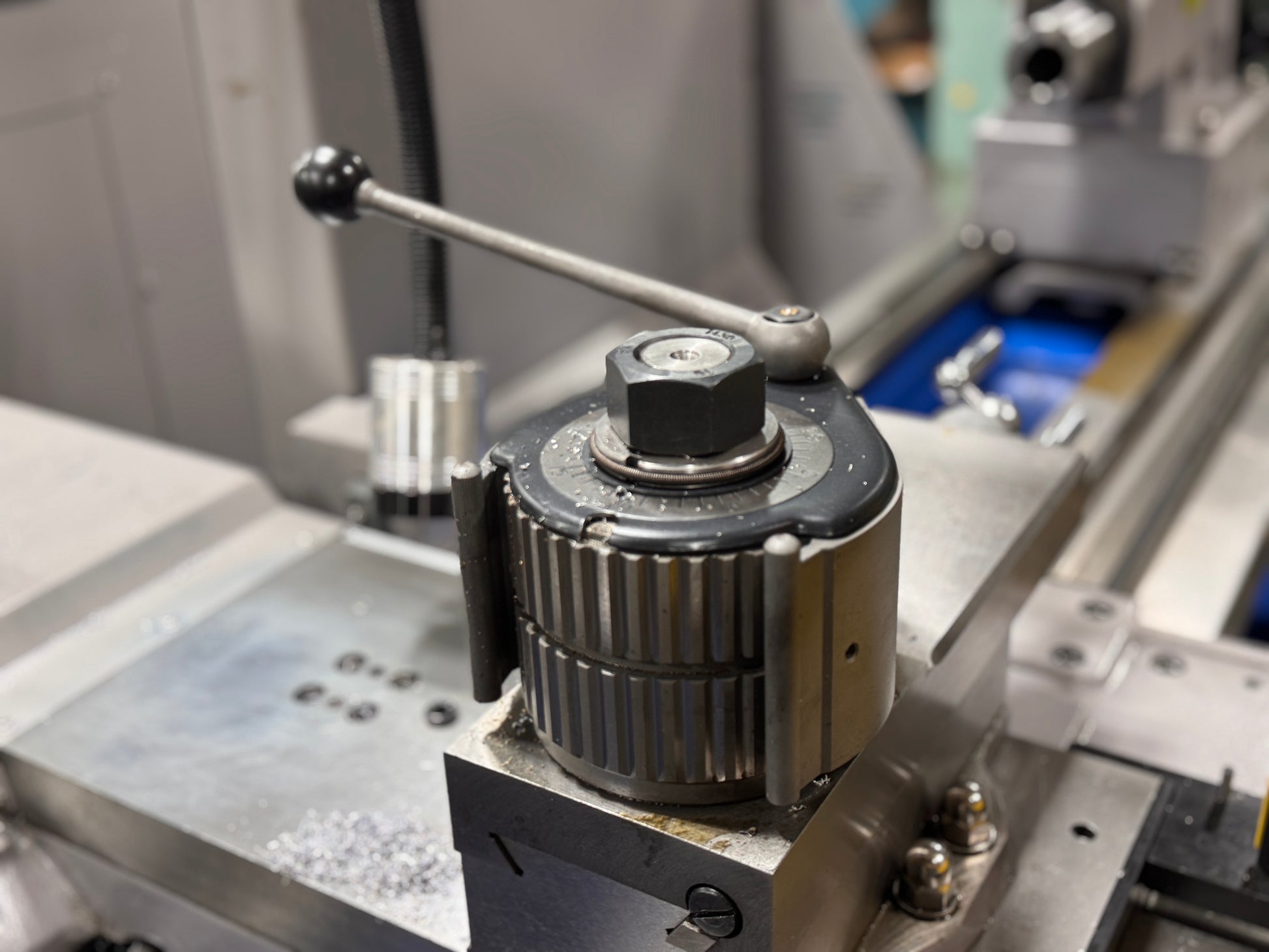

Quick change tool post
40 position tooling system
Tool holder size: 25 × 25 mm
Tailstock
Tailstock type: Manual
Quill stroke: 150 mm
Quill diameter: 75 mm
Quill taper: MT5
Feed Rates
Longitudinal feed: 0.05 – 6.4 mm/rev
Cross feed: 0.025 – 3.2 mm/rev
Longitudinal feed: 0.002 – 0.242 in/rev
Cross feed: 0.001 – 0.121 in/rev
Rapid traverse X/Z: 2 / 4 m/min
Threading
Metric threads: 0.5 – 40 mm
Imperial threads: 1 – 80 TPI
Module threads: 0.25 – 20 MOD
Diametral pitch: 2 – 72 DP
Ball Screws
X-axis: Ø25 × 5 mm
Z-axis: Ø40 × 6 mm
Motor
Main inverter motor: 15 kW
Coolant motor: 0.125 kW
X/Z servo motors: 1.5 / 2.3 kW
Torque
Spindle torque: 1085 N·m
X/Z axis torque: 10 / 15 N·m

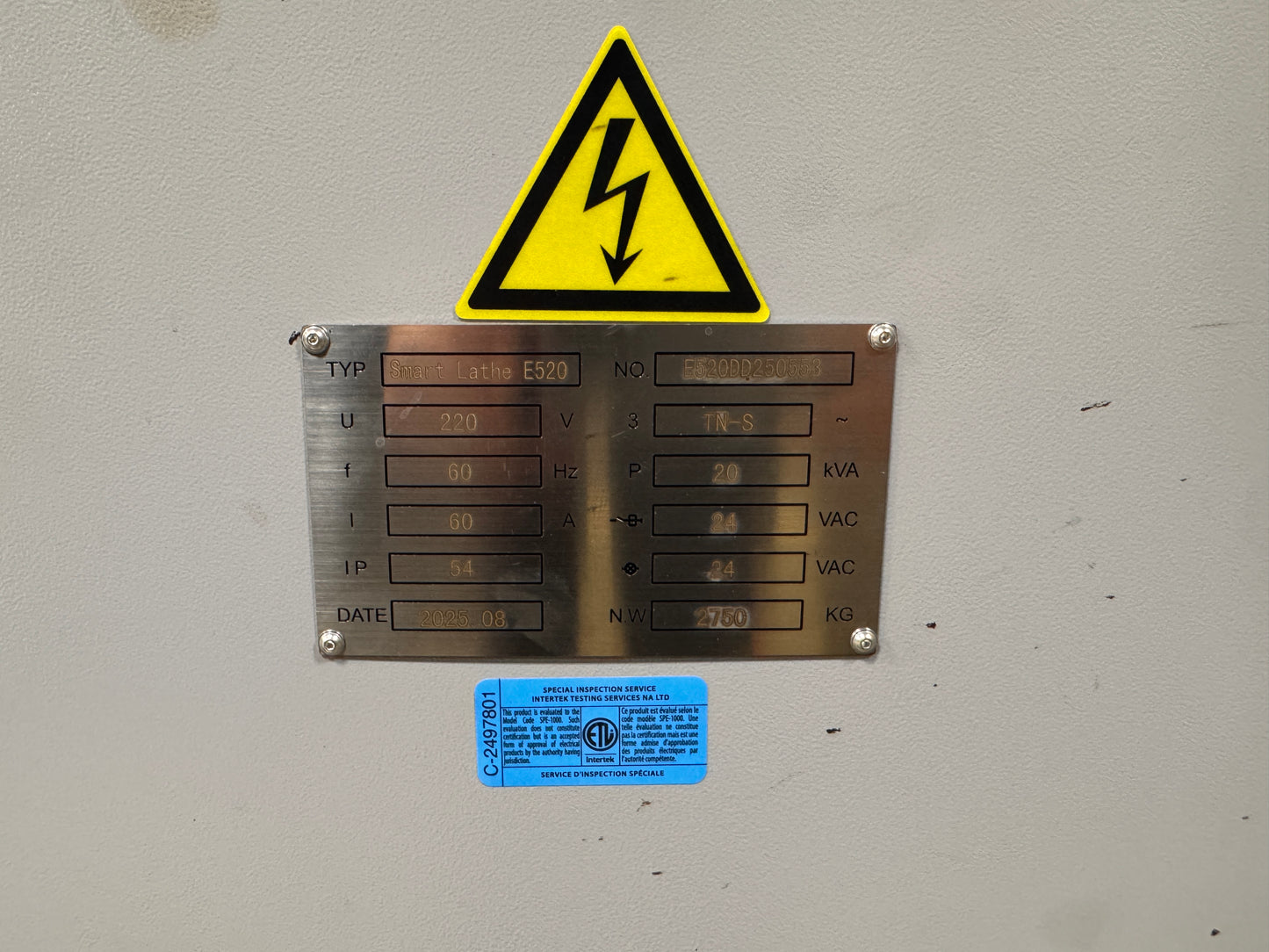

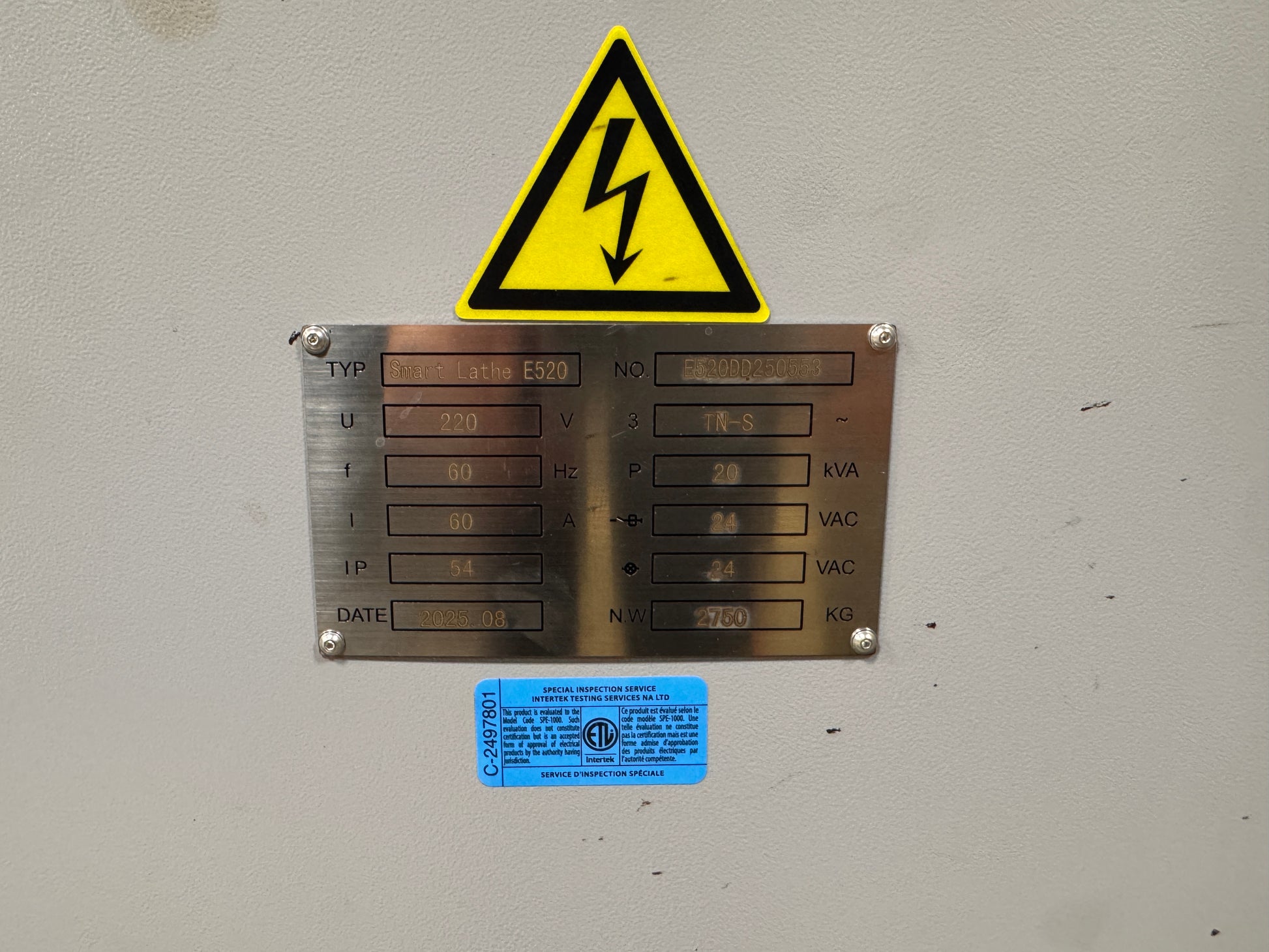

General
Machine weight: 2850 kg
Installed power: 20 kVA
Power requirement: 220V / 3 Phase / 60A
Year of manufacture: 2025
Standard Features

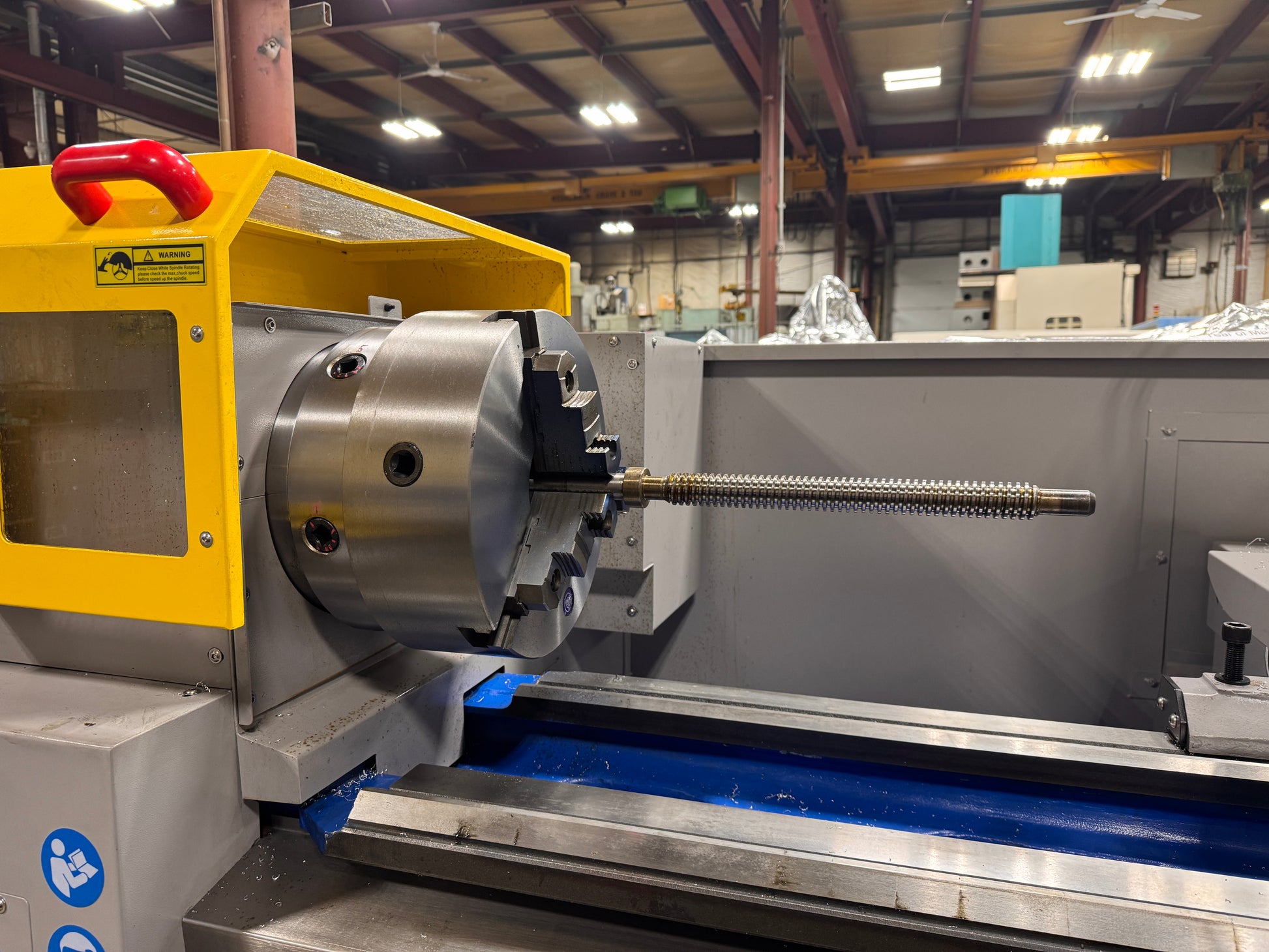

12.5” 315 mm 3 Jaw Chuck
15” Touch Screen LCD Control
STANKO SMART LATHE CONTROL Gen.2
Servo Driven X/Z Axes
Ball Screw X/Z System
Auto-Cycle OD / ID / Threading / Taper Turning / Radius / Groove / Shoulder
CSS Cutting Function
Variable Spindle Speed Control
Coolant Pump
Auto Lubrication Pump
LED Work Lamp
Chip Collection Tray
Rear Splash Guard
Chuck Safety Cover with Disconnect Switch
Turret Safety Cover
UL / CSA Electrical Components
Optional Accessories
16” 4 Jaw Chuck
14” 4 Jaw Chuck
Big Steady Rest Ø125 – 250 mm
Small Steady Rest Ø20 – 125 mm
Follow Rest (20 – 80 mm)
