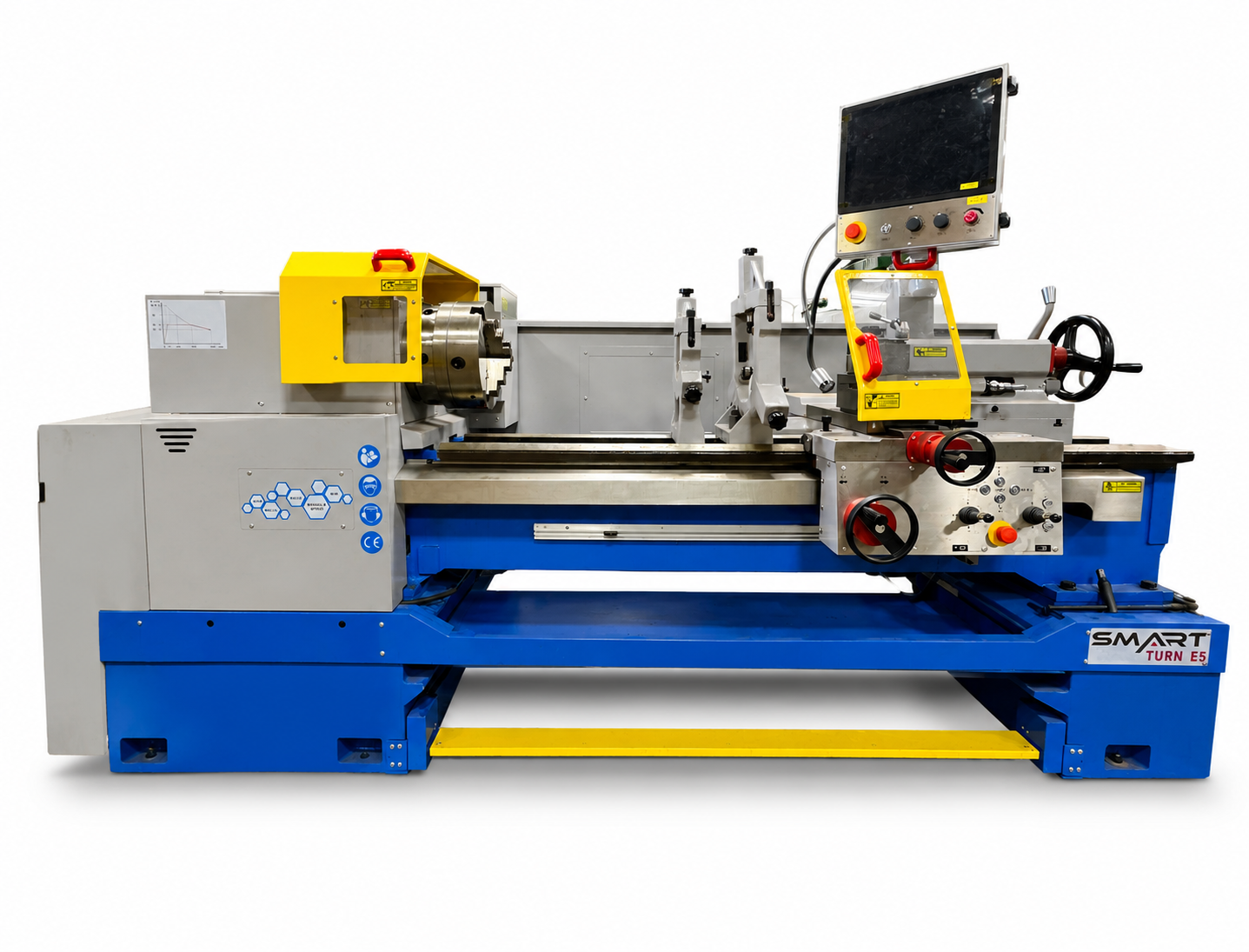

STANKO Smart Lathe S2060E Generation 2

The STANKO Smart Lathe S2060E Generation 2 is an industrial smart engine lathe designed for precision turning, automatic threading, taper turning, grooving, and repair-shop production work. Equipped with a 15” touchscreen control system, servo-driven X/Z axes, precision ball screws, and STANKO Smart Lathe Control Gen.2, the S2060E combines the simplicity of a manual lathe with advanced smart automation.

Built for machine shops, maintenance departments, oilfield service, heavy equipment repair, and industrial manufacturing, the S2060E delivers high torque, precision machining, and efficient setup for repetitive turning operations without the complexity of a full CNC turning center.

Specifications

Capacity

• Swing over bed: 500 mm
• Swing over cross slide: 300 mm
• Max. turning length: 1500 mm
• Bed width: 400 mm

Spindle

• Chuck size: 315 mm (12.5”)
• Spindle speed range: 20 – 2000 RPM
• Variable speed drive: Stepless
• Spindle bore: 104 mm (4.1")
• Spindle nose: D1-8

Carriage

• Tool post travel: 140 mm
• X-axis travel: 250 mm

Tool Post

• Quick change tool post
• 40 position tooling system
• Tool holder size: 25 × 25 mm

Tailstock

• Tailstock type: Manual
• Quill stroke: 150 mm
• Quill diameter: 75 mm
• Quill taper: MT5

Feed Rates

• Longitudinal feed: 0.05 – 6.4 mm/rev
• Cross feed: 0.025 – 3.2 mm/rev
• Longitudinal feed: 0.002 – 0.242 in/rev
• Cross feed: 0.001 – 0.121 in/rev
• Rapid traverse X/Z: 2 / 4 m/min

Threading

• Metric threads: 0.5 – 40 mm
• Imperial threads: 1 – 80 TPI
• Module threads: 0.25 – 20 MOD
• Diametral pitch: 2 – 72 DP

Ball Screws

• X-axis: Ø25 × 5 mm
• Z-axis: Ø40 × 6 mm

Motor

• Main inverter motor: 11 kW
• Coolant motor: 0.125 kW
• X/Z servo motors: 1.5 / 2.3 kW

Torque

• Spindle torque: 1085 N·m
• X/Z axis torque: 10 / 15 N·m

General

• Machine dimensions: 1371 × 1200 × 1168 mm
• Machine weight: 2350 kg
• Power requirement: 220V / 3Phase / 60A

---

Standard Features

• 12.5” 315 mm 3 Jaw Chuck
• 15” Touch Screen LCD Control
• STANKO SMART LATHE CONTROL Gen.2
• Servo Driven X/Z Axes
• Ball Screw X/Z System
• Auto-Cycle OD / ID / Threading / Taper Turning / Radius / Groove / Shoulder
• CSS Cutting Function
• Variable Spindle Speed Control
• Coolant Pump
• Auto Lubrication Pump
• LED Work Lamp
• Chip Collection Tray
• Rear Splash Guard
• Chuck Safety Cover with Disconnect Switch
• Turret Safety Cover
• UL / CSA Electrical Components

---

Optional Accessories

• 16” 4 Jaw Chuck
• 14” 4 Jaw Chuck
• Big Steady Rest Ø125 – 250 mm
• Small Steady Rest Ø20 – 125 mm
• Follow Rest (20 – 80 mm)
