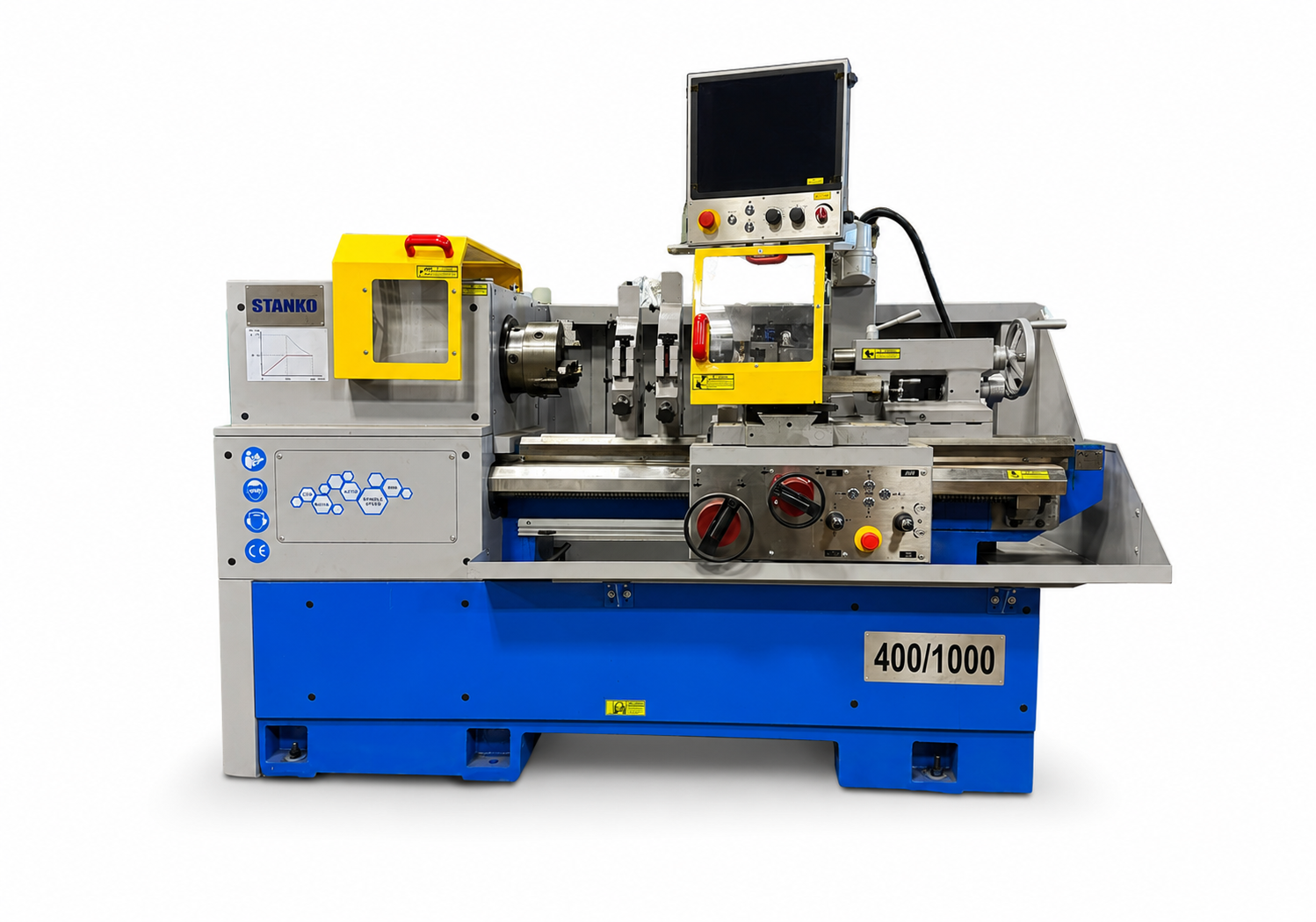

STANKO Smart Lathe S1640E Generation 2

The STANKO Smart Lathe S1640E Generation 2 is a compact industrial smart engine lathe designed for precision turning, automatic threading, taper turning, grooving, and repair-shop production work. Equipped with a 15” touchscreen control system, servo-driven X/Z axes, and STANKO Smart Lathe Control Gen.2, the S1640E combines manual lathe simplicity with modern smart automation.

Built for machine shops, maintenance departments, educational facilities, fabrication shops, and industrial repair applications, the E1640 delivers reliable performance, precision machining, and efficient setup for repetitive turning operations without the complexity of a full CNC turning center.

---

Specifications

Capacity

• Swing over bed: 400 mm(16")
• Swing over cross slide: 200 mm
• Max. turning length: 1000 mm(40")
• Bed width: 360 mm

Spindle

• Chuck size: 200 mm (8”)
• Spindle speed range: 20 – 2000 RPM
• Variable speed drive: Stepless
• Spindle bore: 55 mm (2")
• Spindle nose: Cam-6

Carriage

• Tool post travel: 140 mm
• X-axis travel: 250 mm

Tool Post

• Quick change tool post
• 40 position tooling system


Tailstock

• Tailstock type: Manual
• Quill stroke: 150 mm
• Quill diameter: 75 mm
• Quill taper: MT4

Feed Rates

• Longitudinal feed: 0.05 – 6.4 mm/rev
• Cross feed: 0.025 – 3.2 mm/rev
• Longitudinal feed: 0.002 – 0.242 in/rev
• Cross feed: 0.001 – 0.121 in/rev
• Rapid traverse X/Z: 2 / 4 m/min

Motor

• Main inverter motor: 7.5 kW
• Coolant motor: 0.125 kW
• X/Z servo motors: 1.5 / 2.3 kW

General

• Machine dimensions: 2250 × 1200 × 2000 mm
• Machine weight: 1550 kg
• Power requirement: 220V / 3Phase / 60A

---

Standard Features

• 3 Jaw Chuck
• 15” Touch Screen LCD Control
• STANKO SMART LATHE CONTROL Gen.2
• Servo Driven X/Z Axes
• Ball Screw X/Z System
• Auto-Cycle OD / ID / Threading / Taper Turning / Radius / Groove / Shoulder
• CSS Cutting Function
• Variable Spindle Speed Control
• Coolant Pump
• Auto Lubrication Pump
• LED Work Lamp
• Chip Collection Tray
• Rear Splash Guard
• Chuck Safety Cover with Disconnect Switch
• Turret Safety Cover
• UL / CSA Electrical Components

---

Optional Accessories

• 4 Jaw Chuck
• 4 Jaw Chuck
• Big Steady Rest Ø125 – 250 mm
• Small Steady Rest Ø20 – 125 mm
• Follow Rest (20 – 80 mm)
