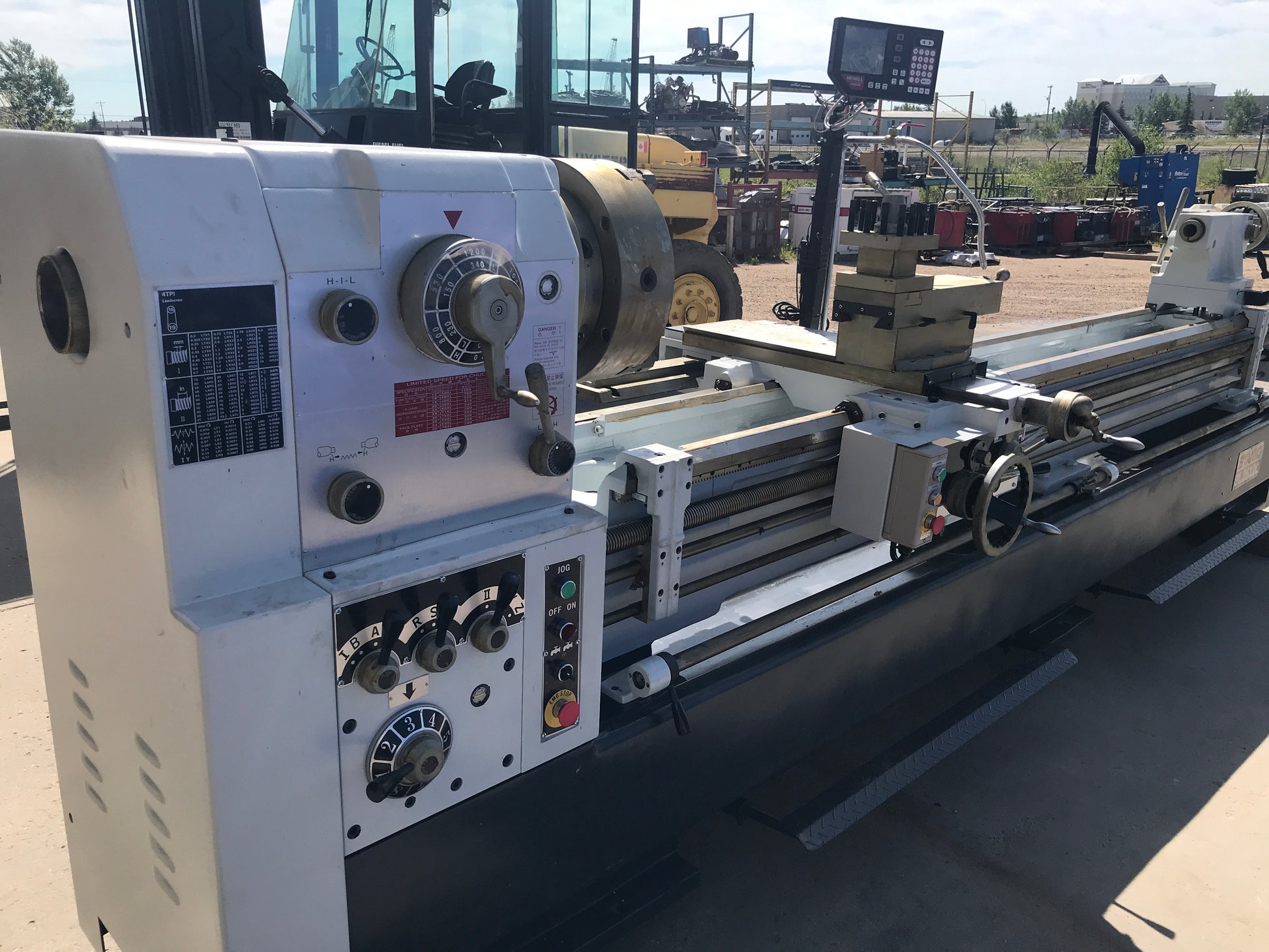

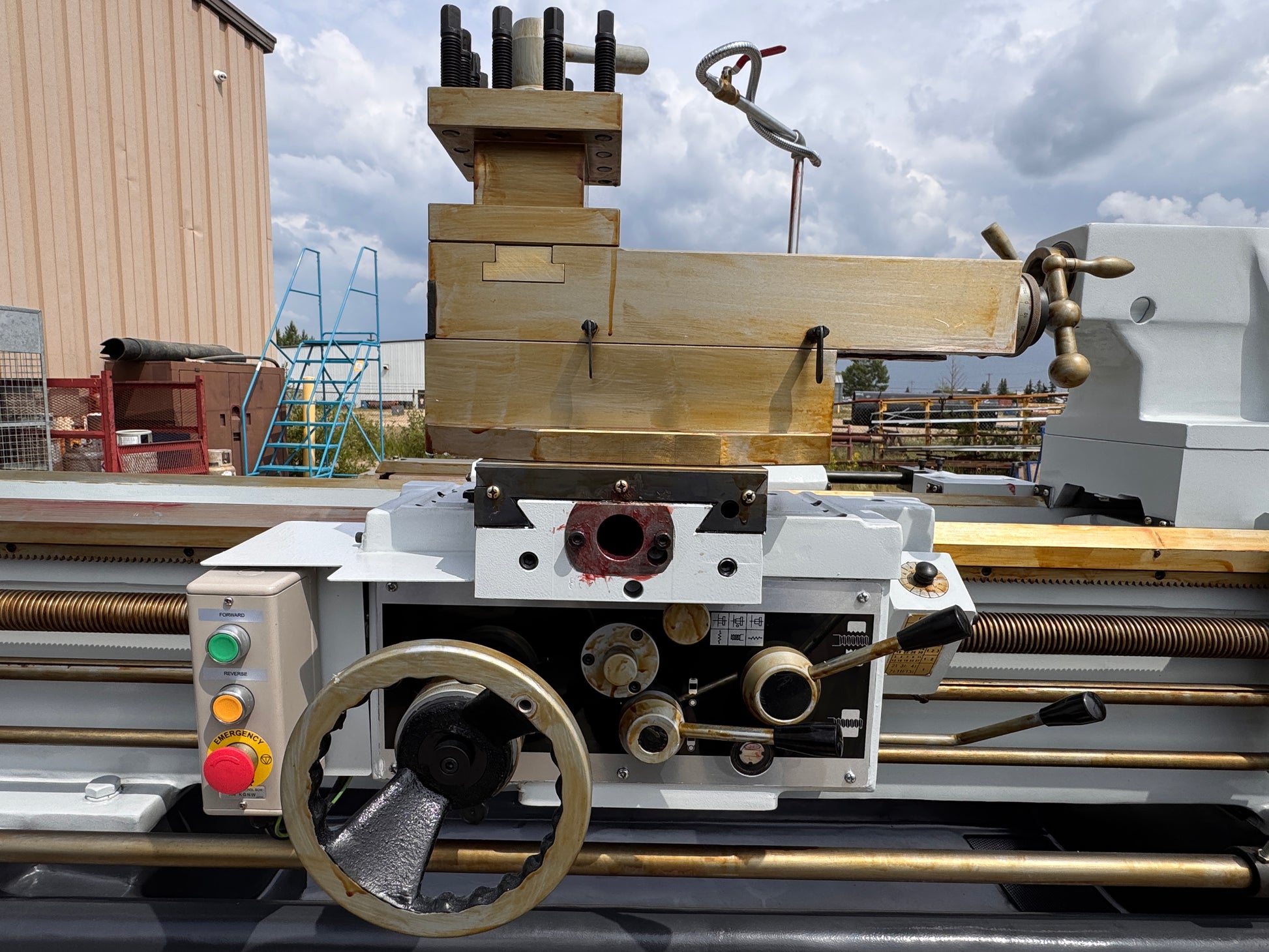

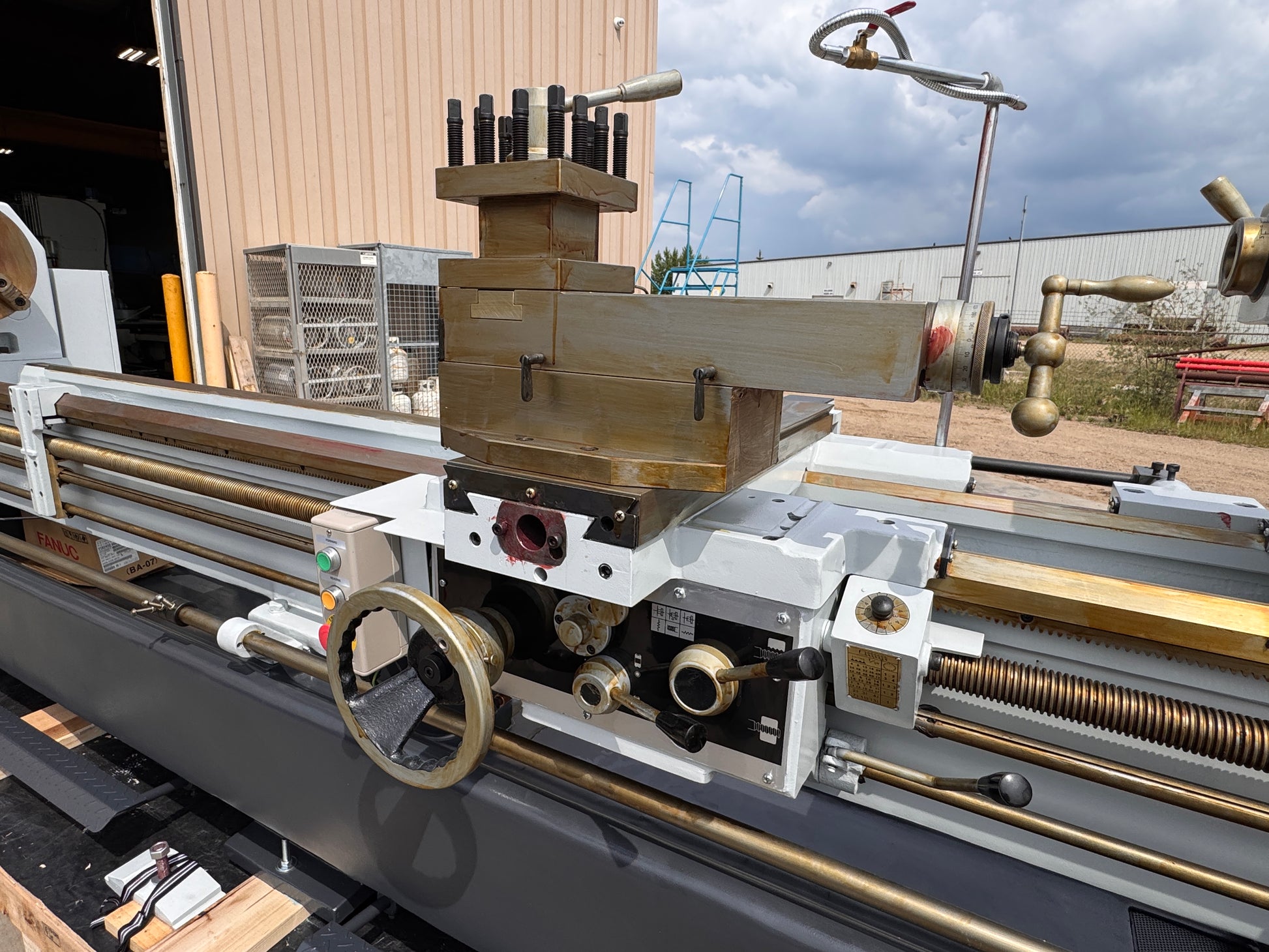

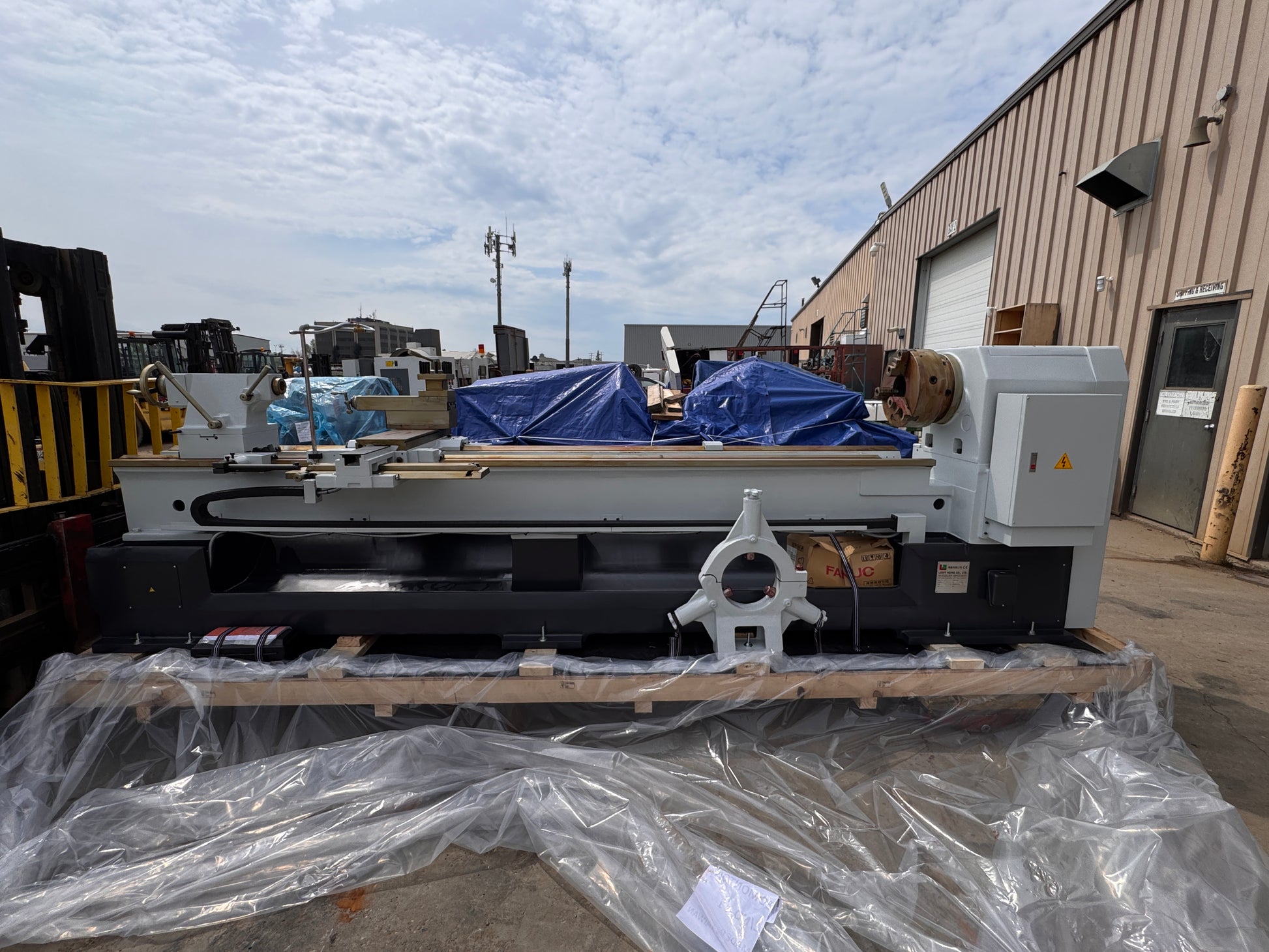

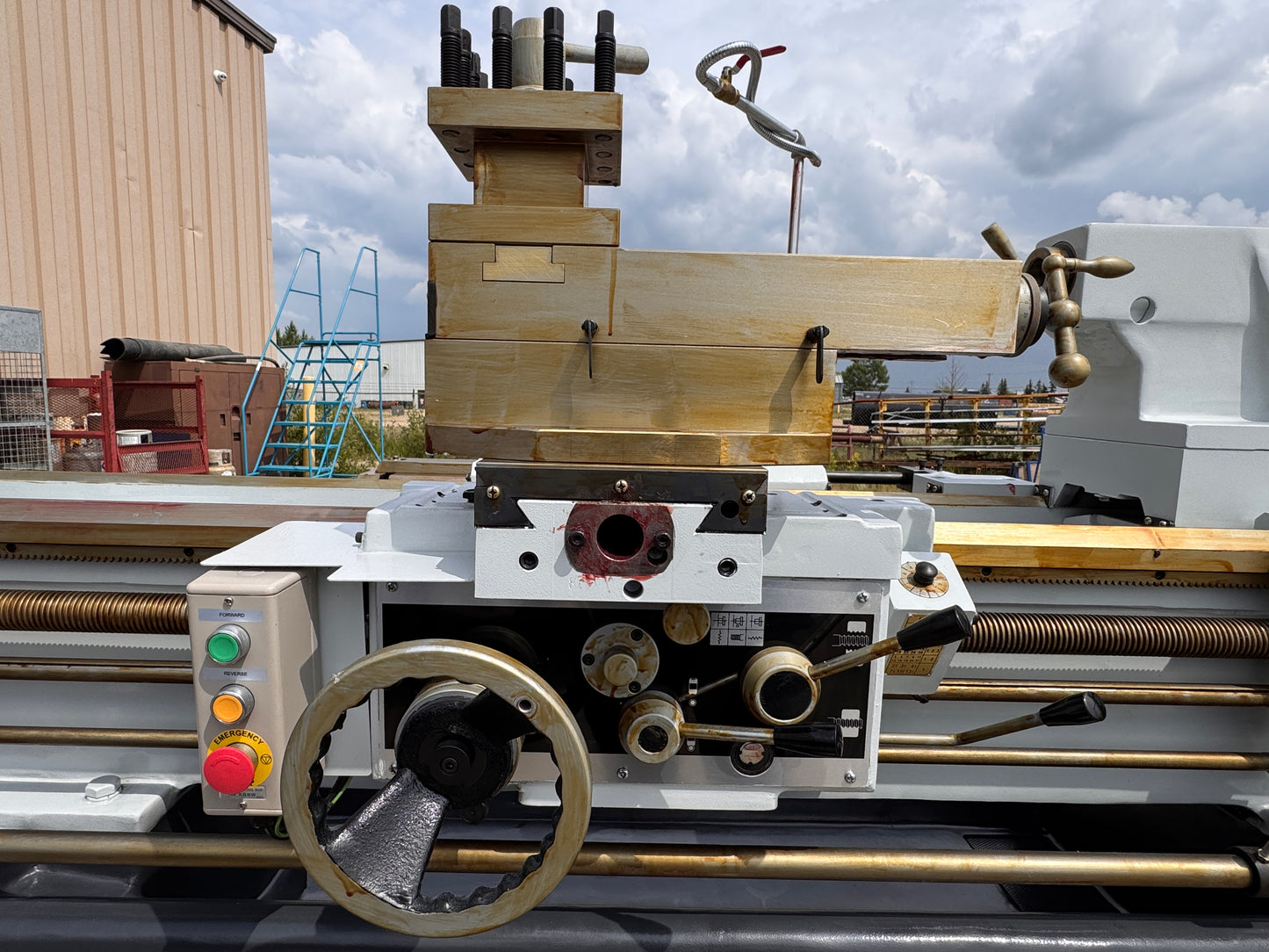

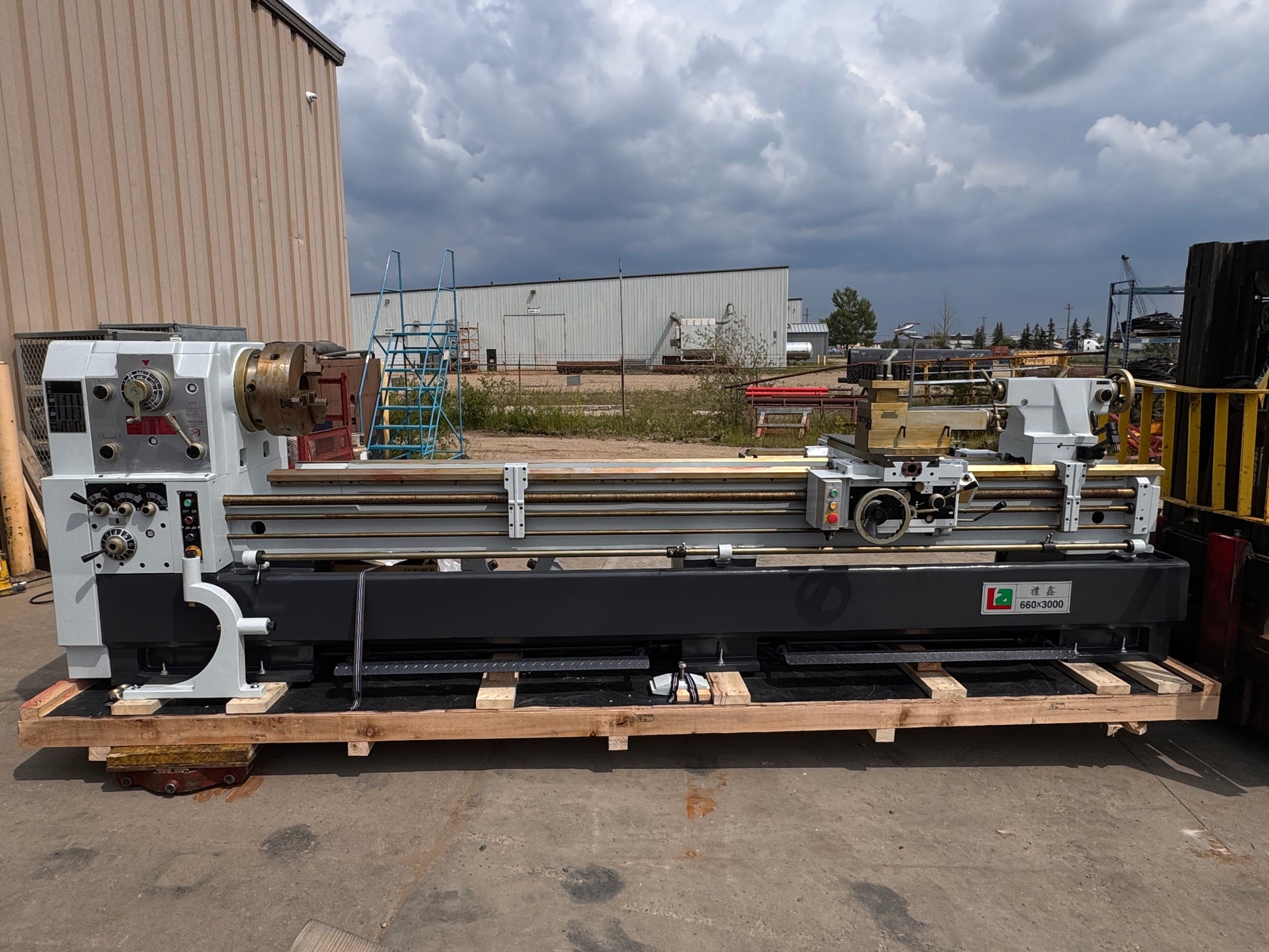

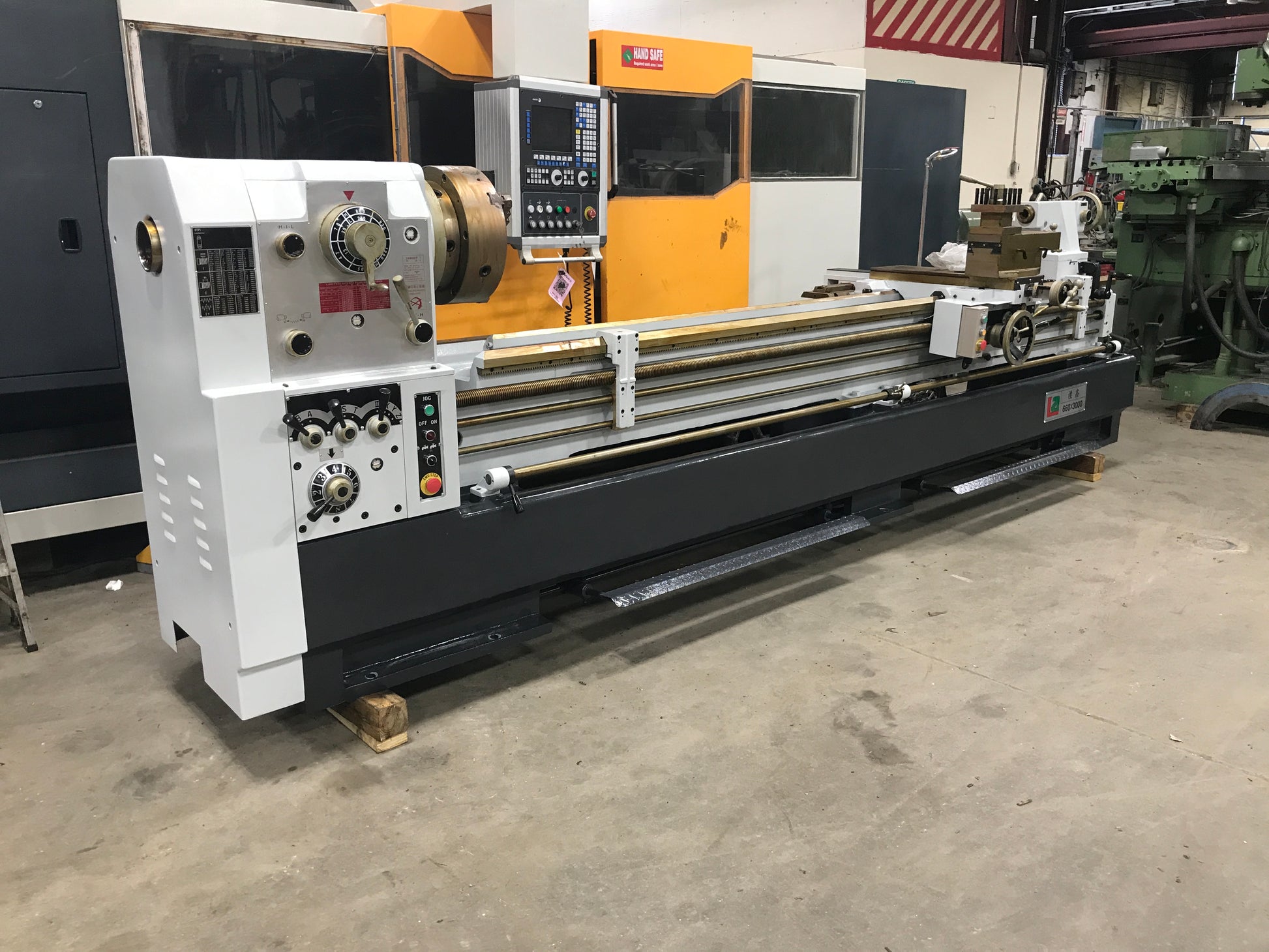

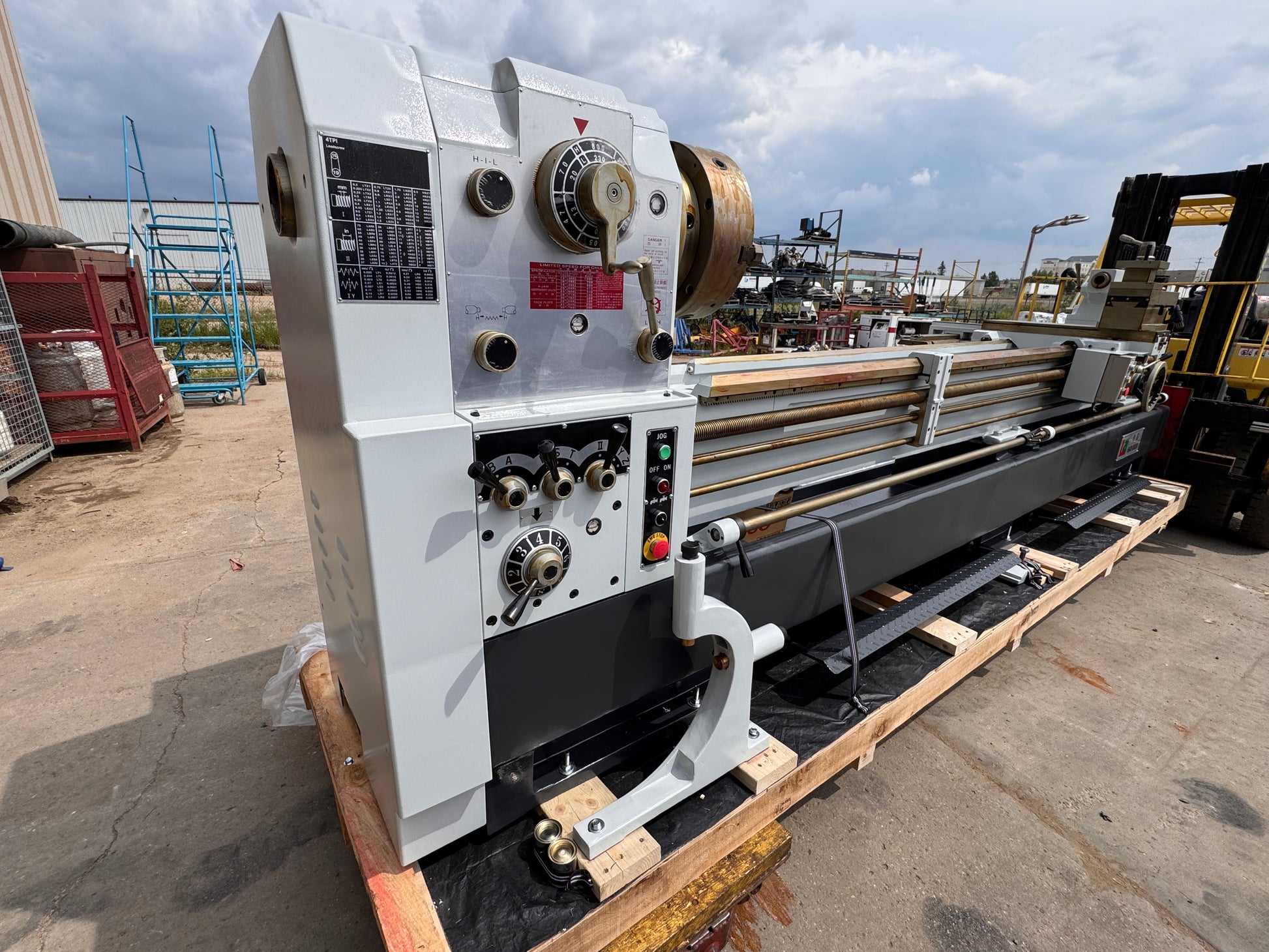

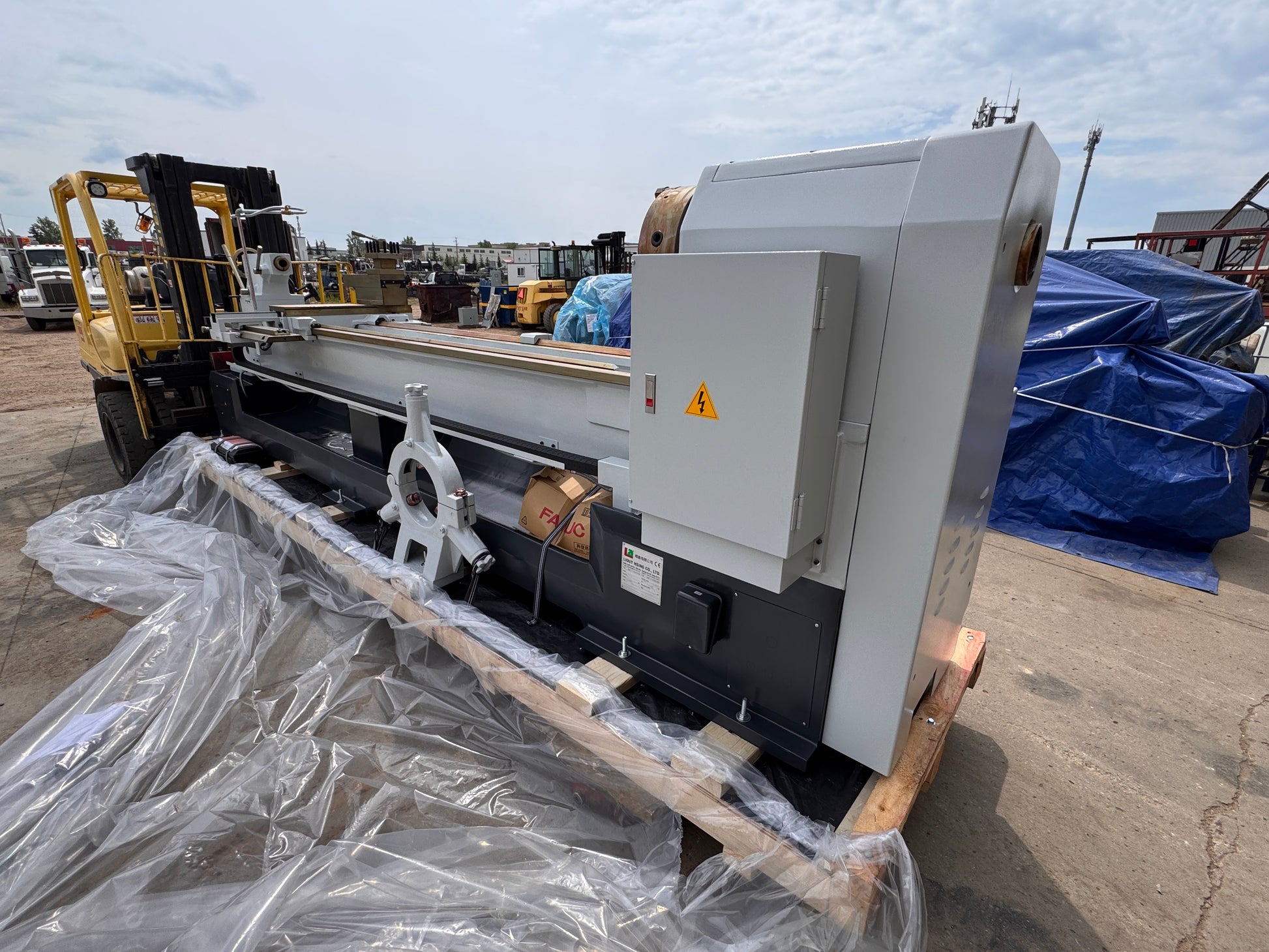

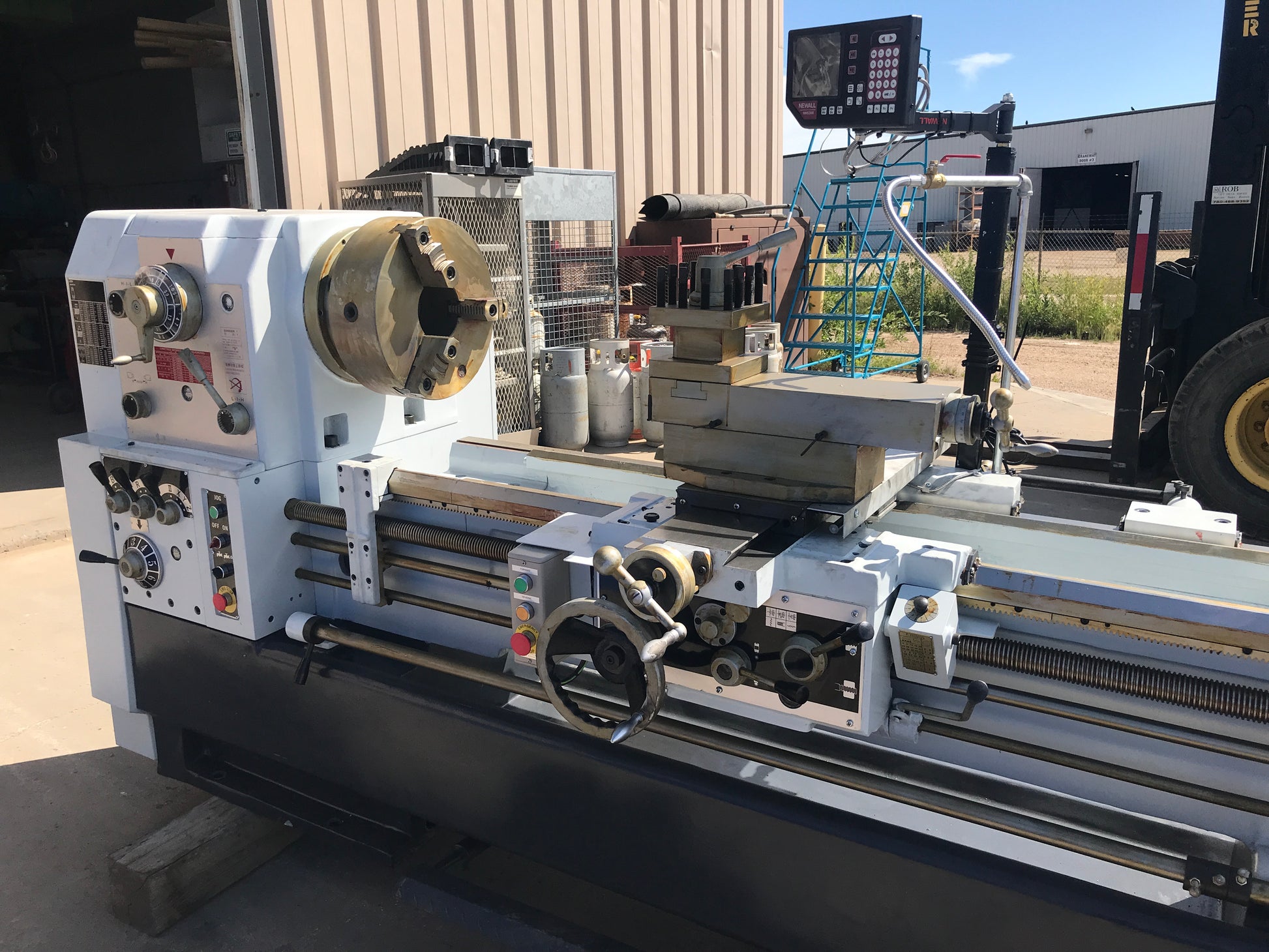

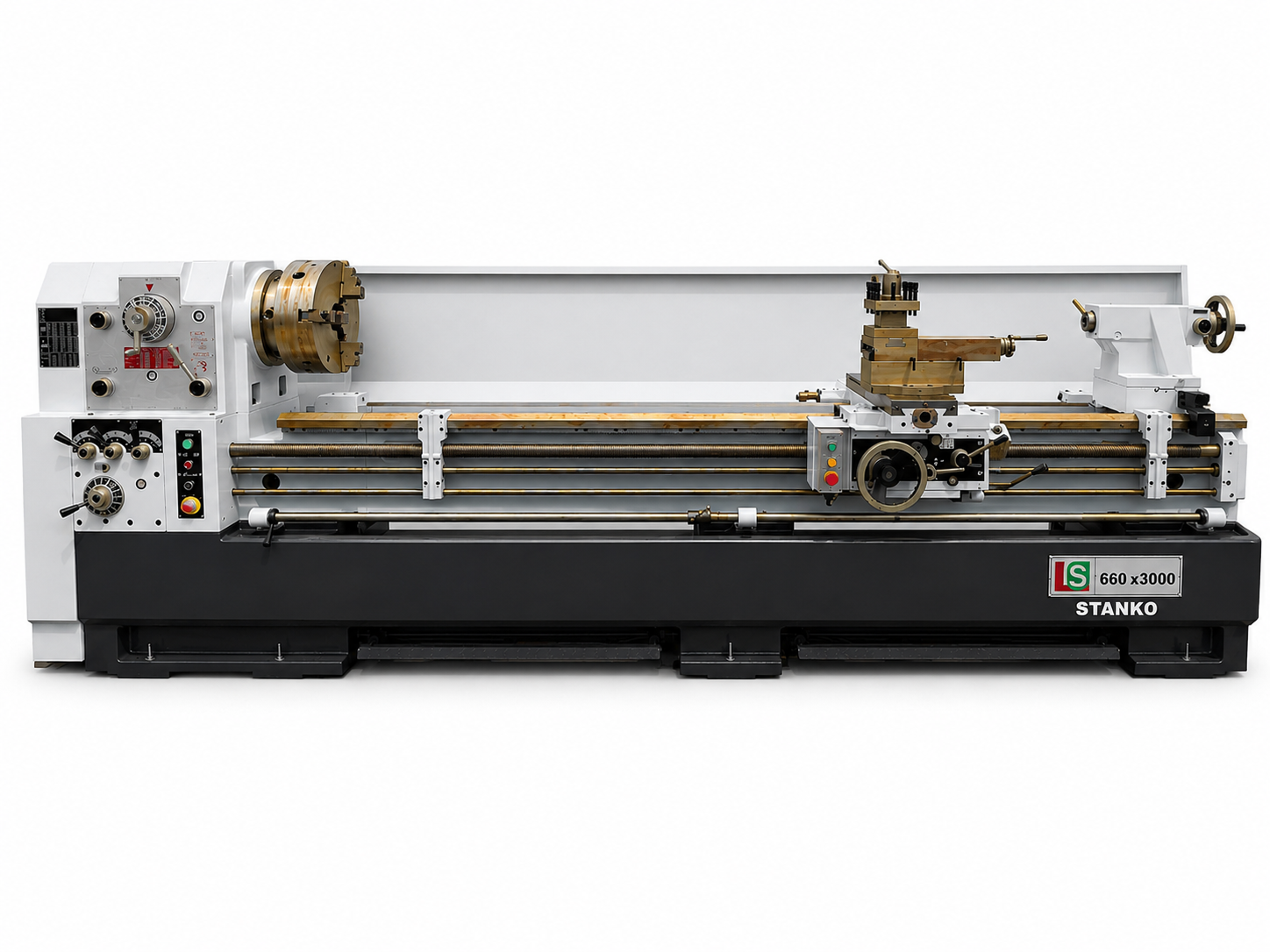

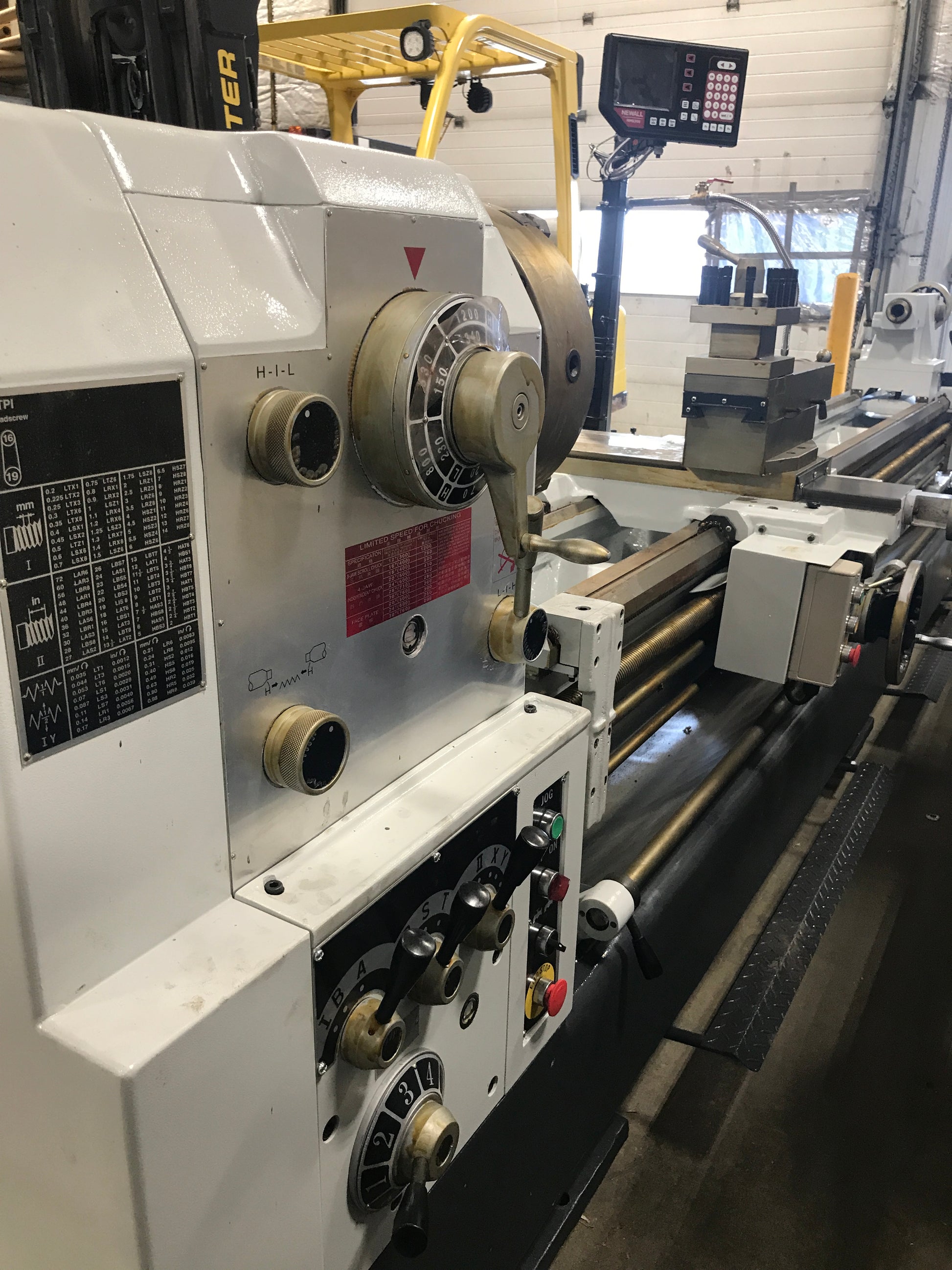

STANKO LA660 × 3000
The STANKO LA660 × 3000 is a heavy-duty engine lathe designed for machining large shafts, flanges, rollers, hydraulic cylinders, and other oversized workpieces. Built by the same Taiwanese manufacturer that produced the well-known Modern 660 × 3000 lathe, it offers the same proven rigidity, reliability, and cutting performance trusted by machine shops across North America.
Featuring a 26" swing over bed, 118" between centers, a large 4.06" spindle bore, and a powerful 15 HP main motor, the LA660 × 3000 is ideal for maintenance facilities, fabrication shops, oilfield service, mining, and industrial manufacturing. The removable gap bed, 12-speed geared headstock, and wide threading and feed ranges provide excellent versatility for both roughing and precision finishing operations.
Specifications
Capacity
Swing over bed: 25.98"
Swing over carriage: 17.52"
Swing over gap: 35.12"
Gap width in front of face plate: 10.63"
Distance between centers: 118"
Bed width: 15.75"
Compound slide travel: 7.5"
Cross slide travel: 15.75"
Spindle
Front chuck: 15" 3-Jaw Chuck (5" Bore)
Spindle bore: 4.06"
Spindle nose: D1-11
Internal spindle taper: MT7 / MT5
Spindle speed: 13–1200 RPM
Speed ranges: 12 Steps
Threading & Feed
Metric threads
Imperial threads
Longitudinal feed: 0.037–1.04 mm/rev or 0.035–0.98 mm/rev
Cross feed: 50% of longitudinal feed
Feed ranges: 36 Steps
Lead screw diameter: 1.77"
Lead screw pitch: 4 TPI or 6 mm

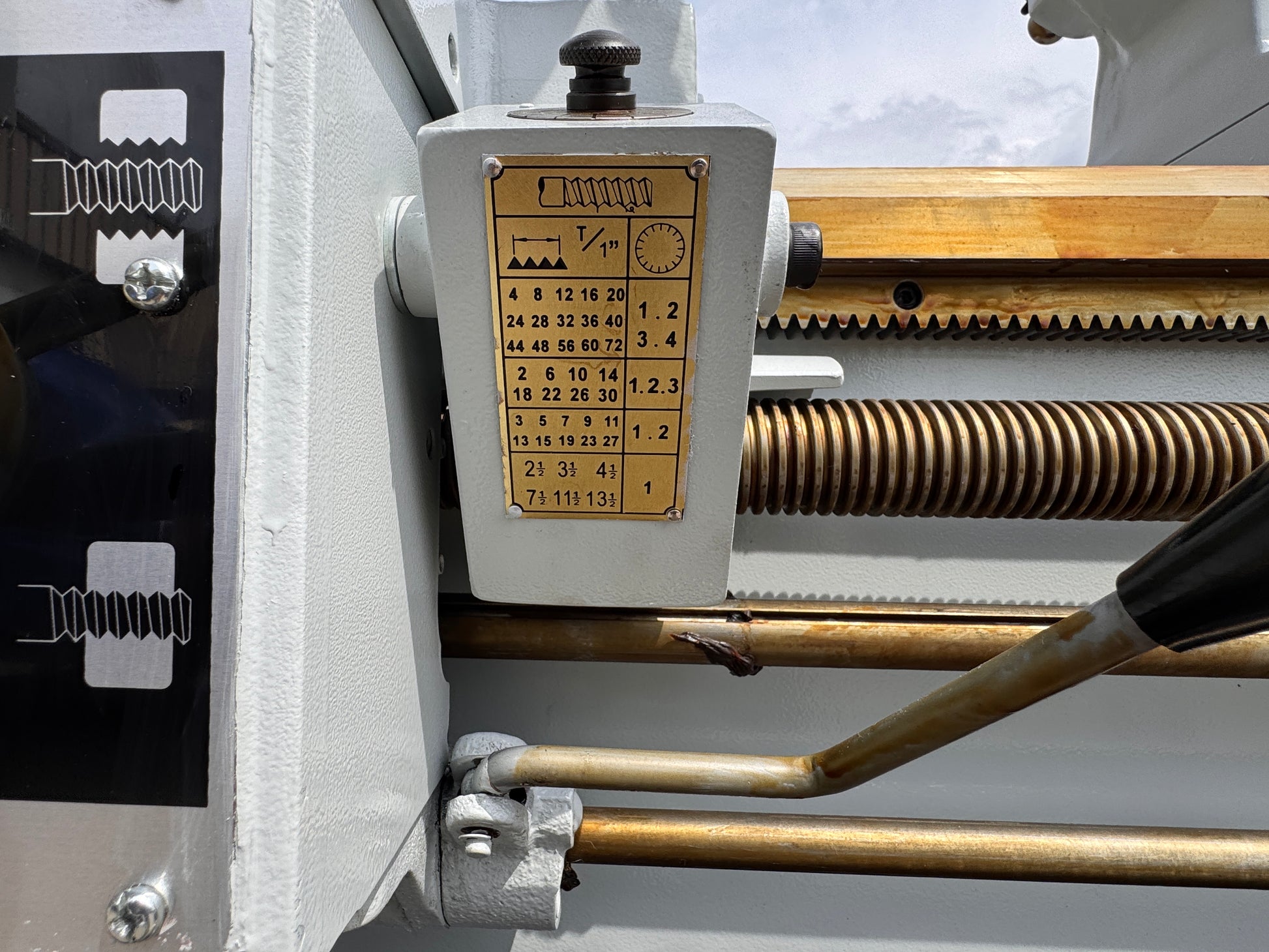

Imperial thread range: 2–72 TPI
Tailstock
Tailstock taper: MT5
Quill diameter: 2.95"
Quill stroke: 7"
Motor
Main motor: 15 HP
Coolant pump motor: 1/8 HP
General
Machine weight: 6,930 lbs
Power requirement: 220V
Machine dimensions: 184" × 56" × 47"
Machine height: 60"
Standard Features
15" 3-Jaw Chuck
12-Speed Geared Headstock
4.06" Spindle Bore
Removable Gap Bed
Coolant System
Dead Center MT5
Center Sleeve MT7 × MT5
12" Drive Plate
Steady Rest with Roller Jaws
Multi-Position Length Stop
Service Kit
Leveling Screws
Optional Accessories
20" 4-Jaw Chuck
Large Roller Style Steady Rest (16")
Follow Rest
Taper Turning Attachment
Rear Splash Guard
Digital Readout (DRO) System
LED Work Light
