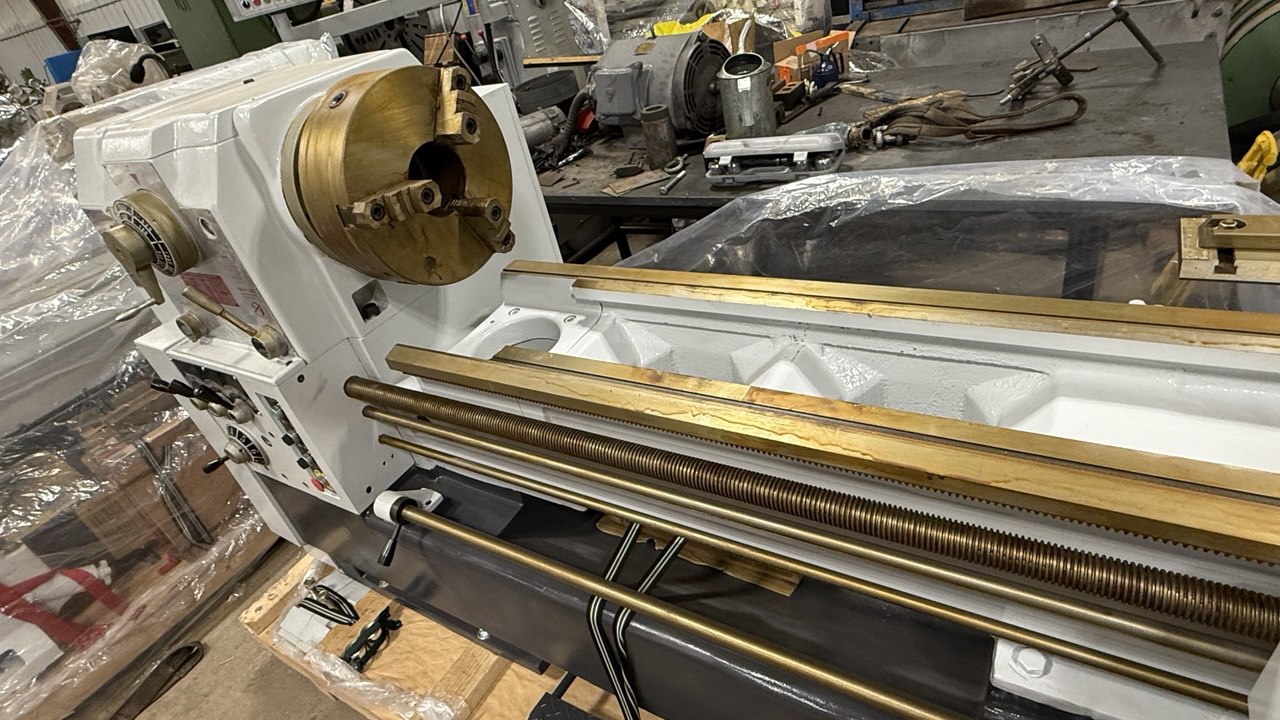

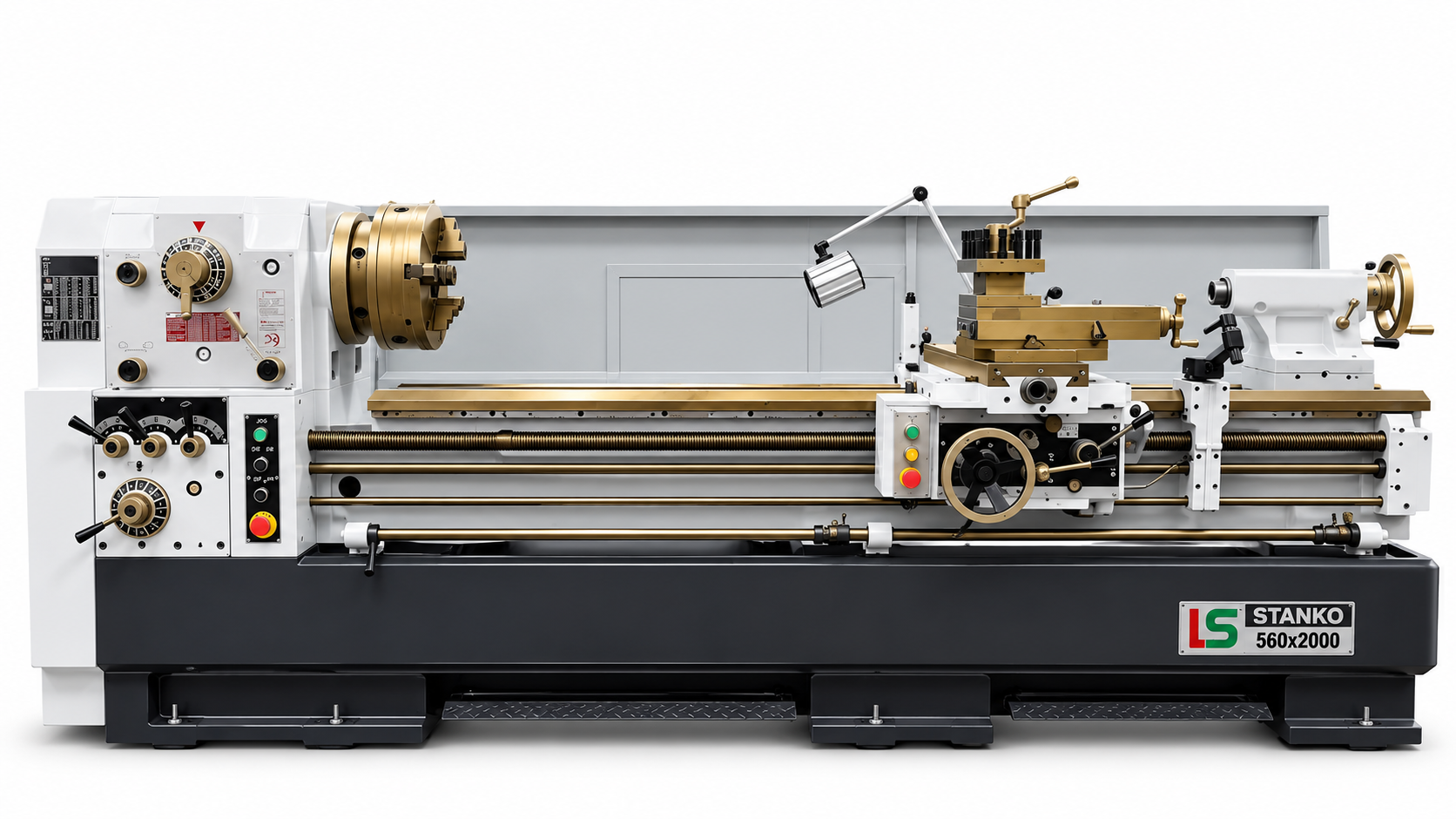

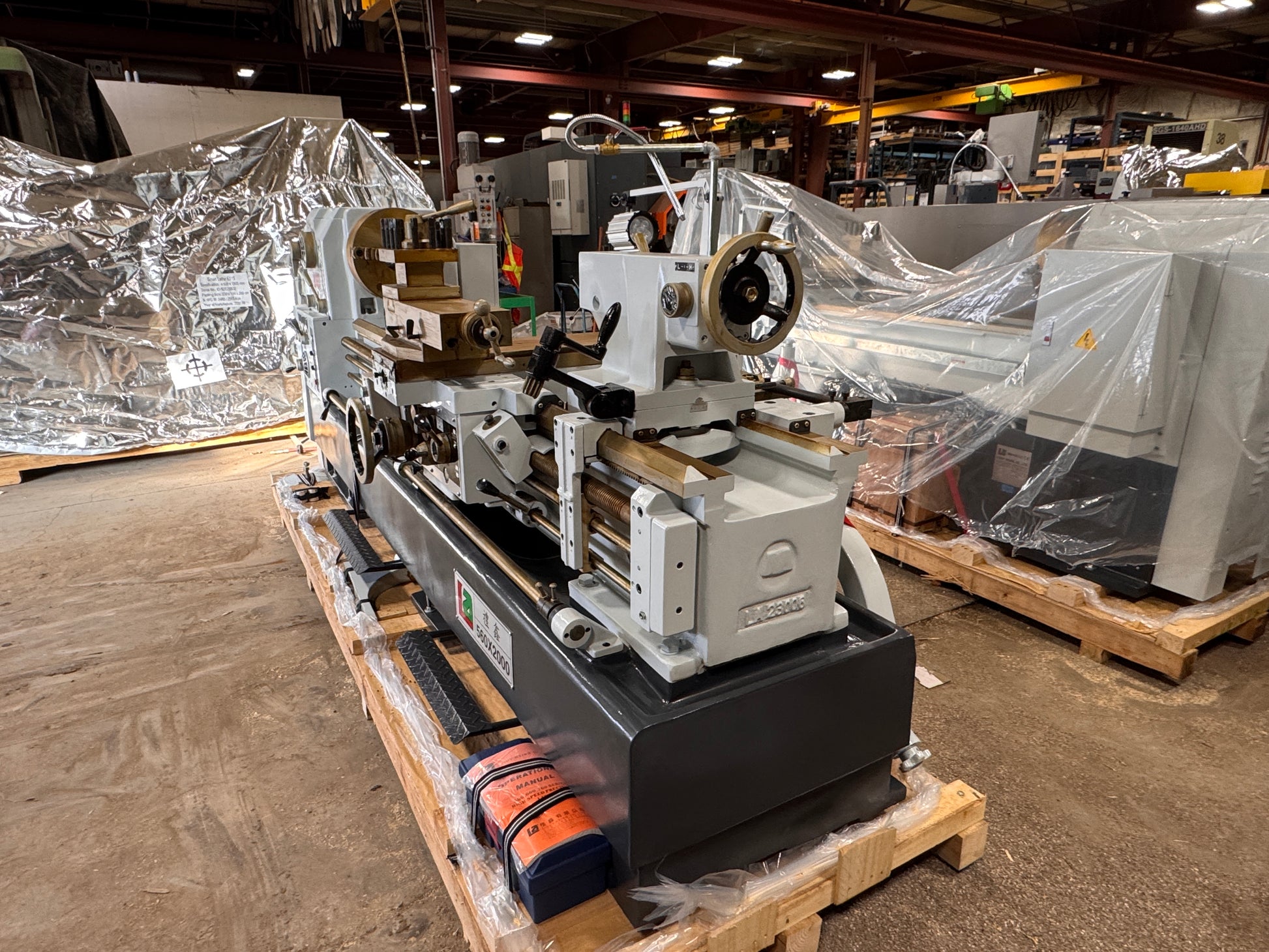

STANKO LA560 × 2000
The STANKO LA560 × 2000 is a heavy-duty engine lathe designed for precision turning, threading, facing, boring, taper turning, and large workpiece machining. Featuring a 22" swing over bed, 2000 mm (78.74") between centers, a large 4.06" spindle bore, and a 15 HP main motor, the LA560 × 2000 delivers the power and rigidity required for repair shops, fabrication, mining, oilfield service, and industrial manufacturing.
Equipped with a 12-speed geared headstock, full metric and imperial threading capability, and precision feed gearbox, the LA560 × 2000 provides dependable performance for both one-off and production machining applications.
Specifications
Capacity
Swing over bed: 560 mm (22")
Swing over carriage: 340 mm (13.38")
Swing in gap: 797 mm (31.38")
Distance between centers: 2000 mm (78.74")
Bed width: 400 mm (15.75")

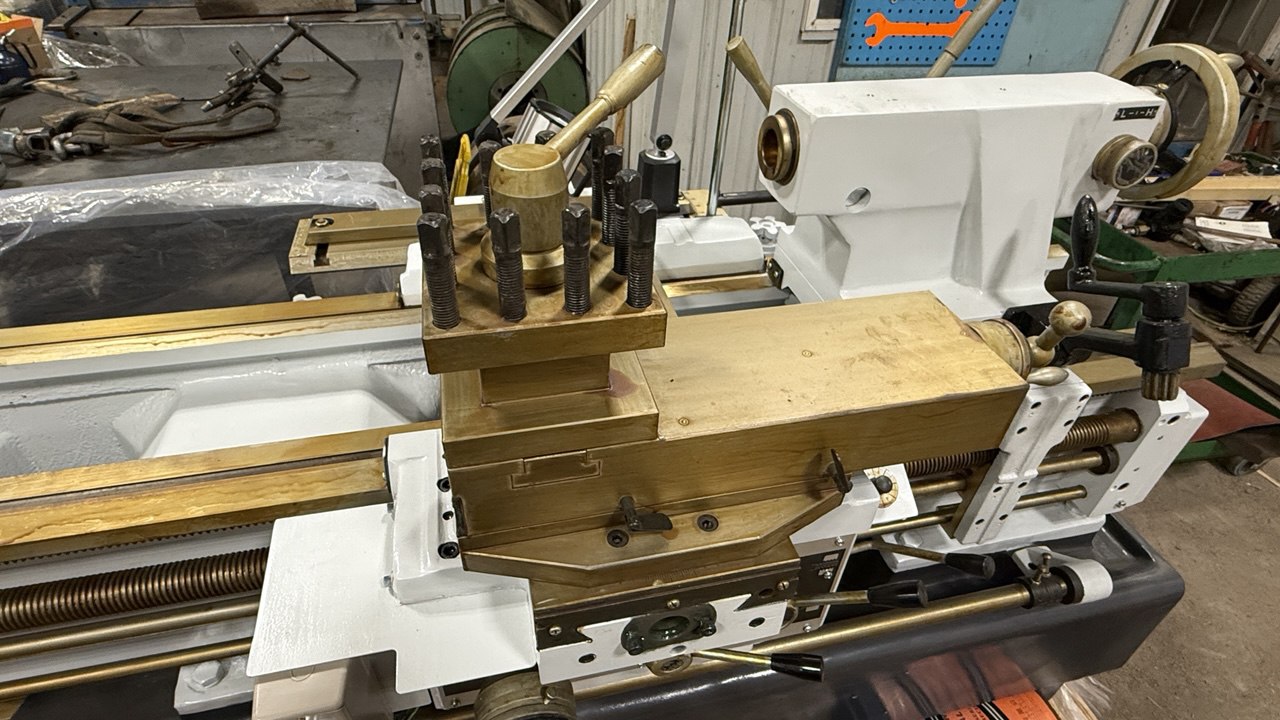

Tool post travel: 242 mm (9.5")

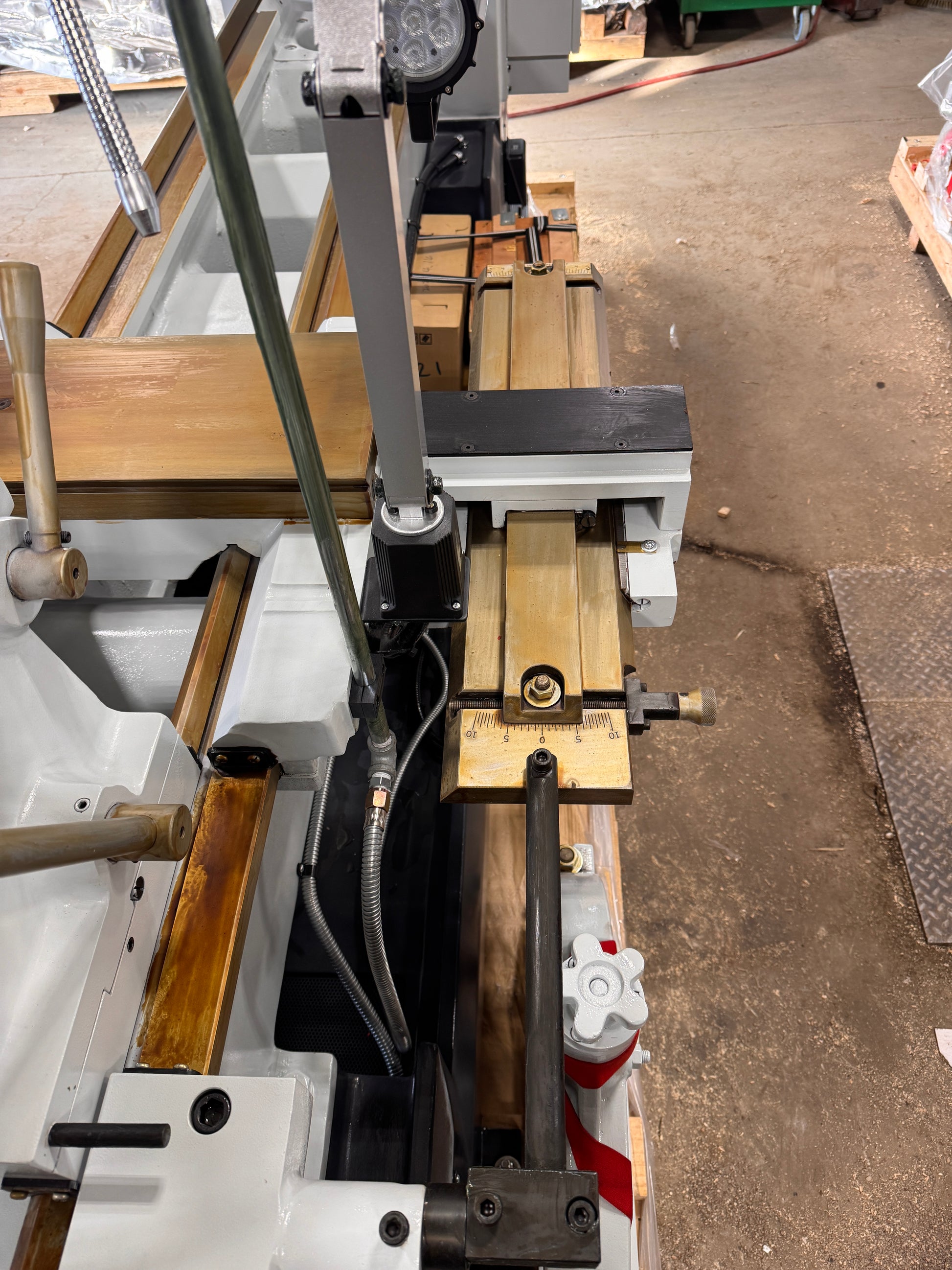

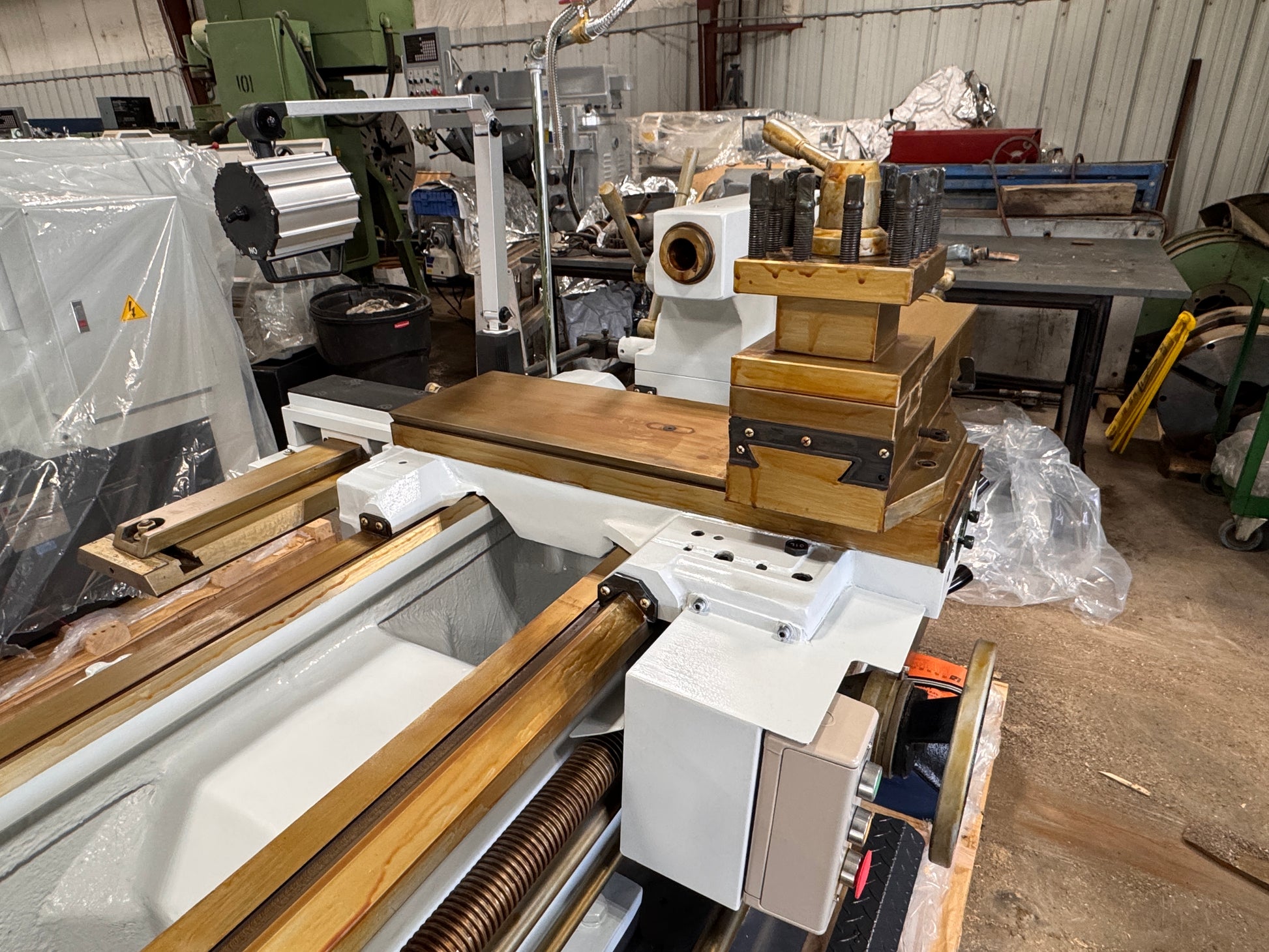

Cross slide travel: 190 mm (7.5")
Center height from base: 1067.5 mm (42")
Spindle
Spindle bore: 104 mm (4.06")

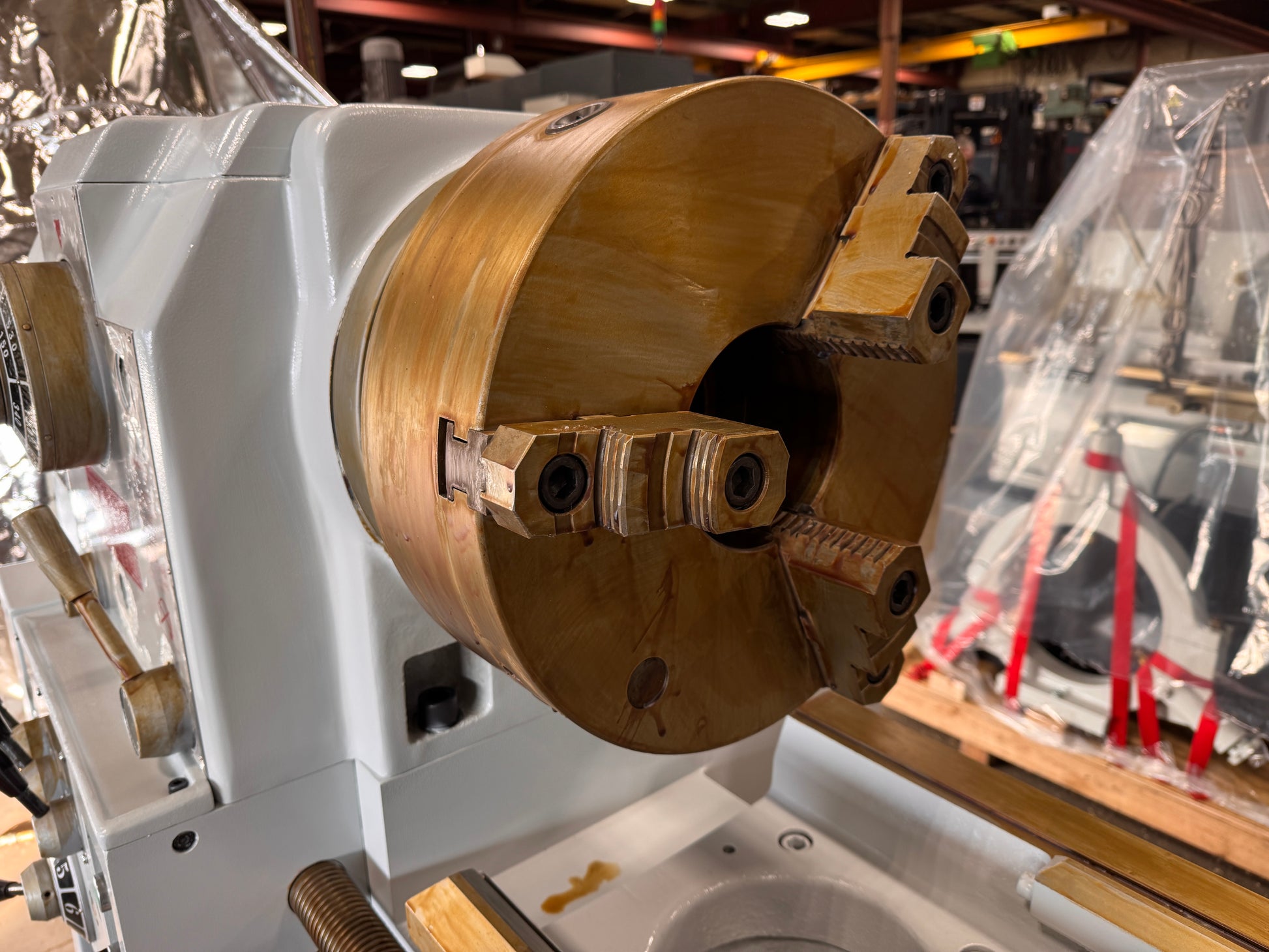

Spindle nose: ASA A1-11 (D1-11)
Internal spindle taper: MT7 / MT5
Spindle speed: 8–800 RPM
Speed ranges: 12 Steps
Threading & Feed
Metric threads: 0.2–14 mm (44 ranges)
Imperial threads: 2–72 TPI (44 ranges)
Longitudinal feed: 0.035–0.99 mm/rev (0.0014"–0.039"/rev)
Cross feed: 50% of longitudinal feed
Feed ranges: 36 Steps
Lead screw: Ø45 mm (1.75") × 4 TPI or 6 mm
Tailstock
Tailstock taper: MT5
Quill diameter: 75 mm (2.94")
Quill stroke: 178 mm (7")
Motor
Main motor: 15 HP
Coolant pump motor: 1/8 HP
General
Machine weight: 3500 kg (7,716 lbs)
Power requirement: 220V
Machine dimensions: 3700 × 1200 × 1500 mm (146 × 47 × 59")
Standard Features

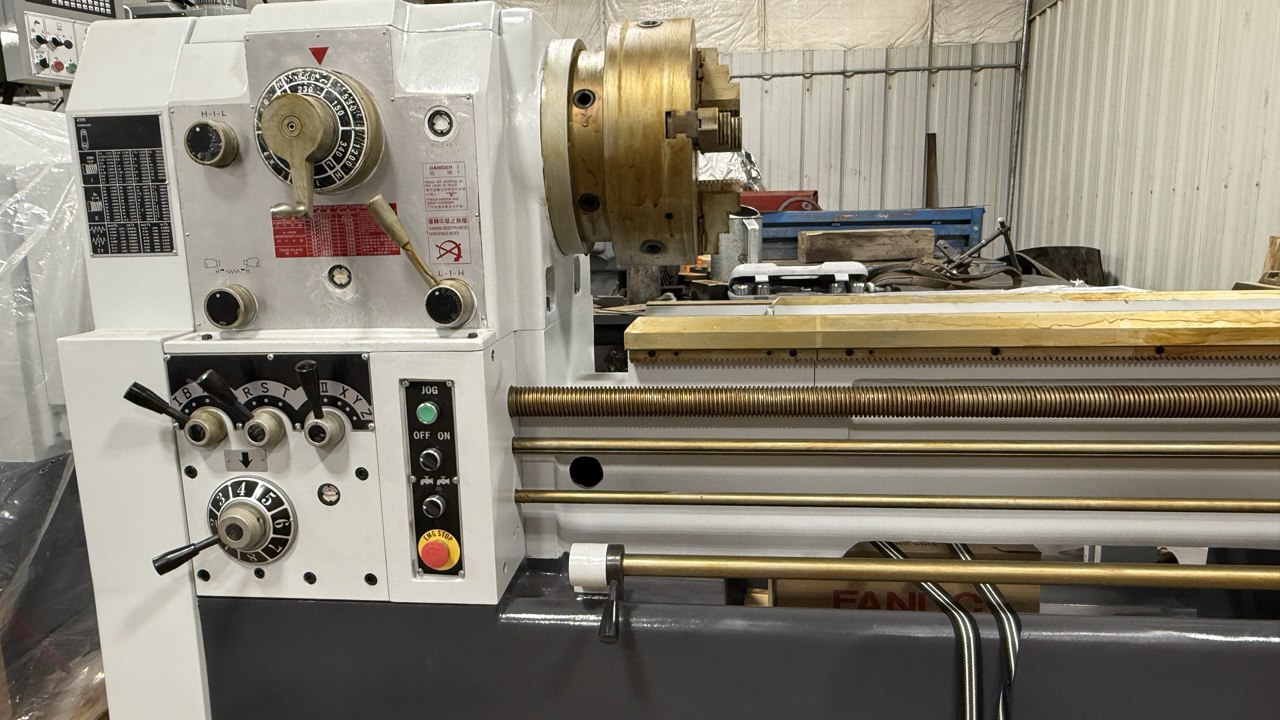

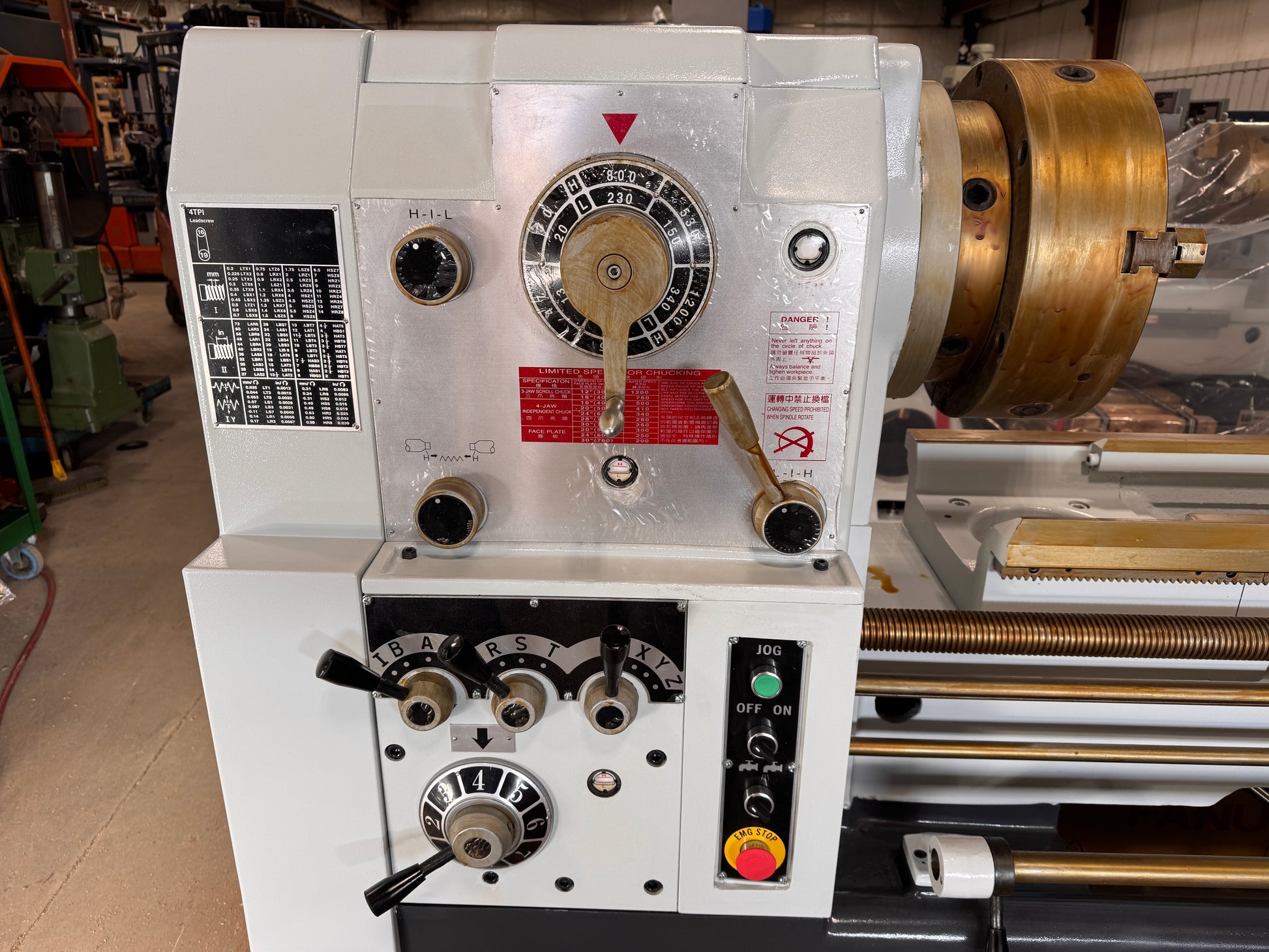

12-Speed Geared Headstock
104 mm (4.06") Spindle Bore
Metric & Imperial Threading
Power Longitudinal & Cross Feeds
Coolant System
Optional Accessories
Digital Readout (DRO)
4-Jaw Independent Chuck
16" Steady Rest
Follow Rest
