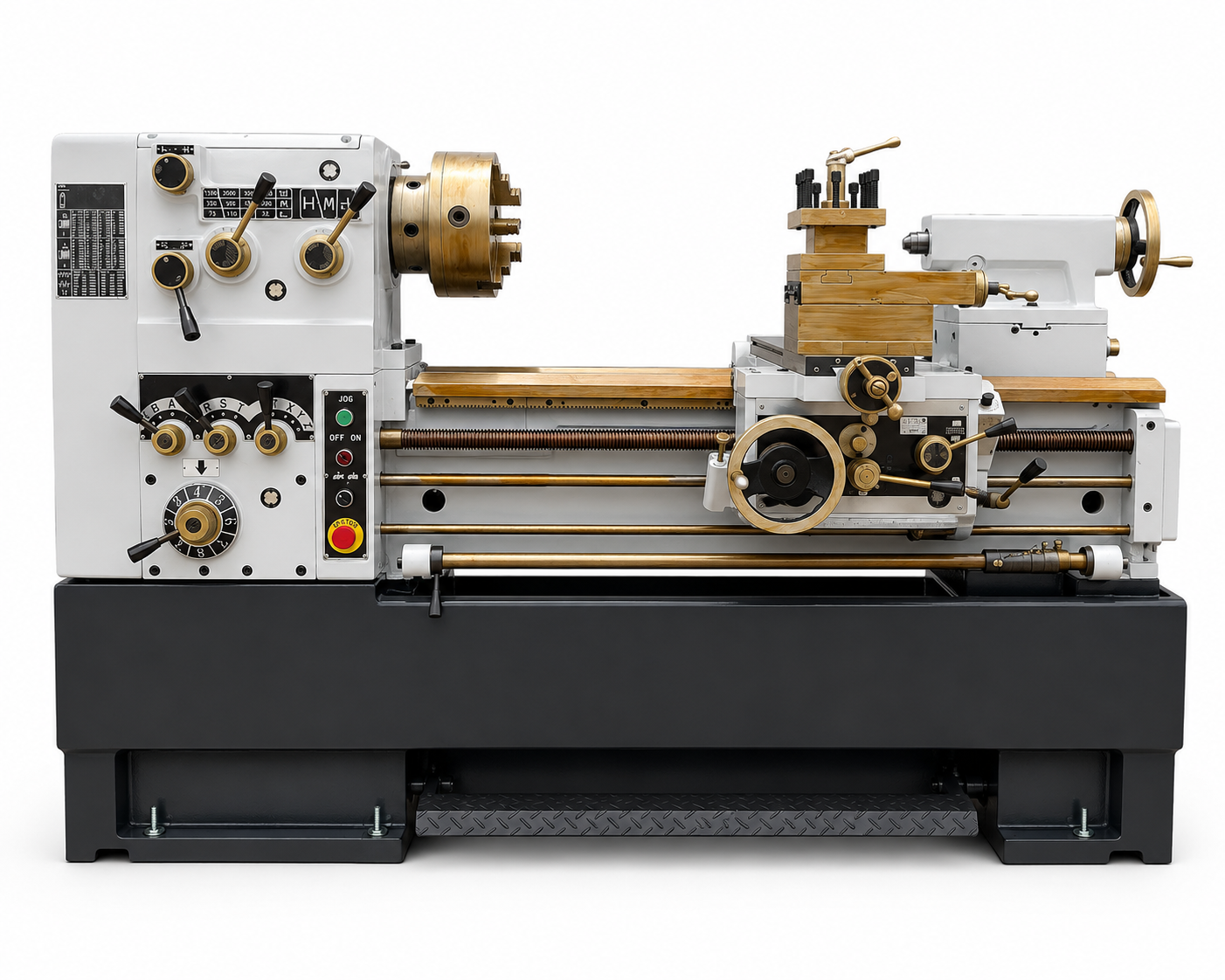

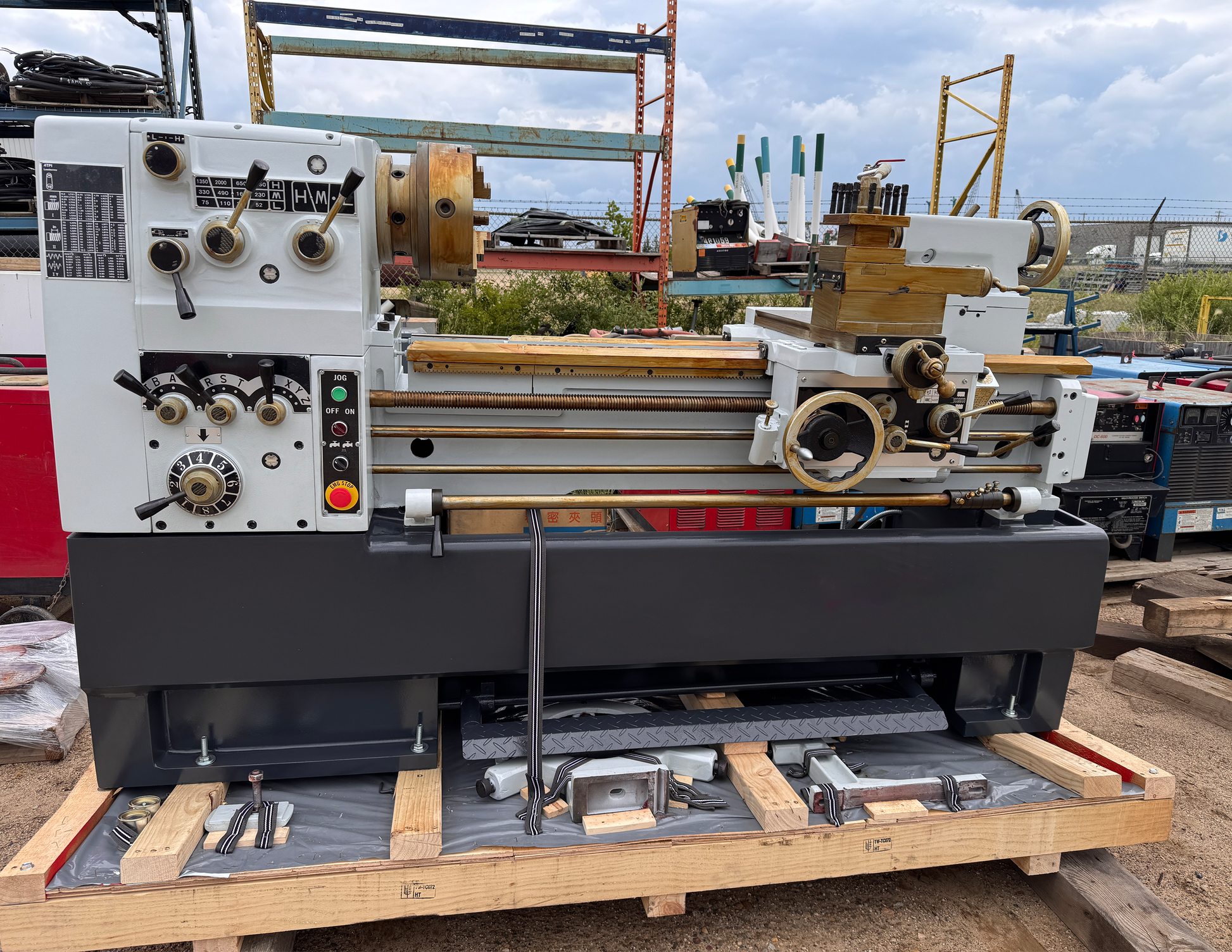

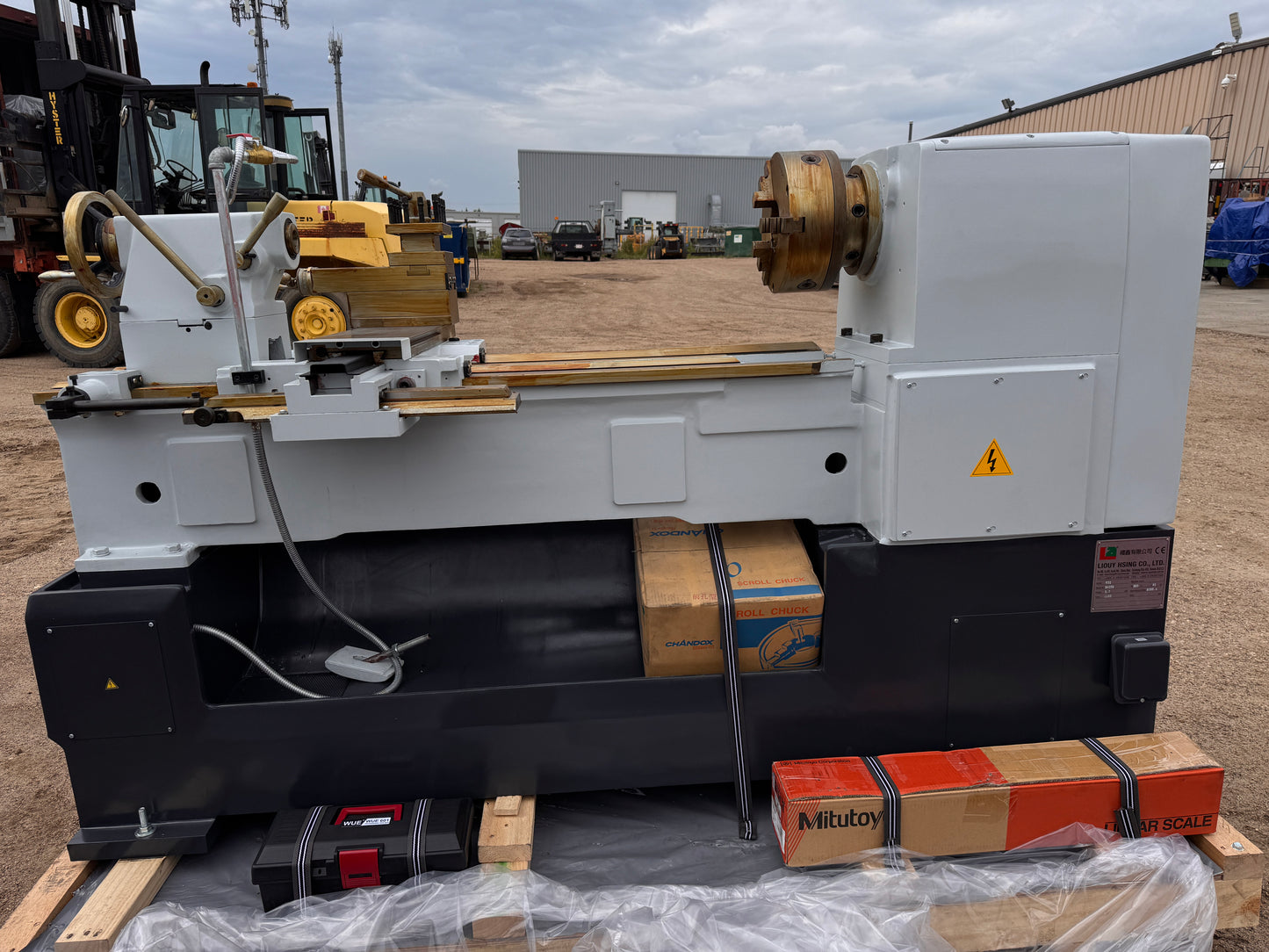

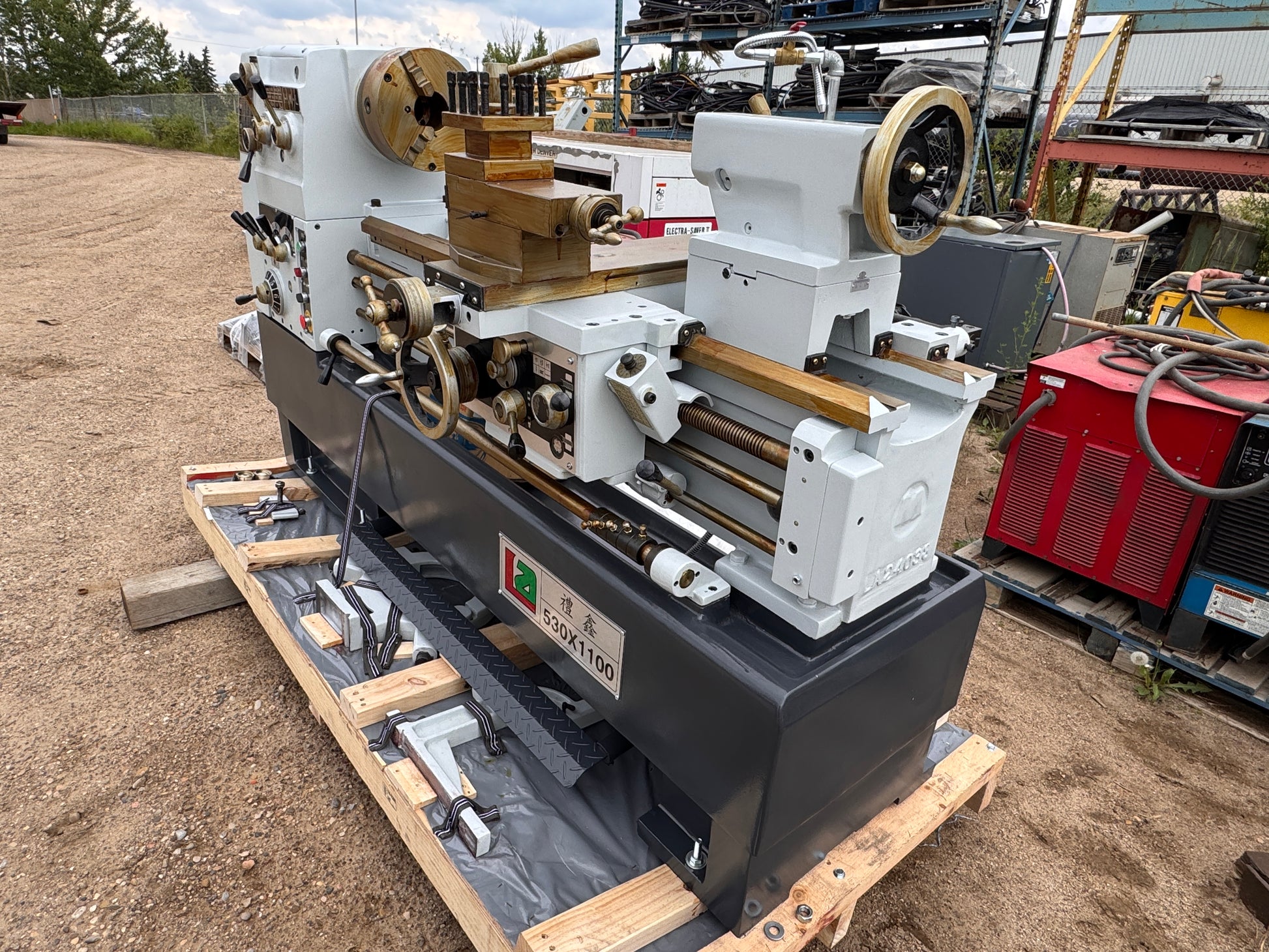

STANKO Manual Lathe
The STANKO Manual Lathe is a heavy-duty conventional engine lathe designed for precision turning, threading, facing, boring, taper turning, and general repair shop machining. Featuring a 21" swing over bed, 44" between centers, a 12" chuck, and a 2.25" spindle bore, this machine delivers the rigidity and versatility required for toolrooms, maintenance departments, fabrication shops, and industrial manufacturing.
Built with a hardened and ground bed, wide speed range, and a full threading and feed gearbox, the STANKO Manual Lathe provides dependable performance for both one-off and production machining applications.
Specifications
Capacity
Swing over bed: 512 mm (21")
Swing over cross slide: 372 mm (14.7")
Swing in gap: 710 mm (28")
Gap width in front of face plate: 150 mm (5.9")
Distance between centers: 1100 mm (44")
Bed width: 300 mm (12")
Center height from bed bottom: 180 mm (7")
Top slide travel: 120 mm (4.75")
Spindle
Front chuck: 12" Chuck
Spindle speed: 35–2000 RPM
Speed ranges: 12 Steps
Spindle bore: 58 mm (2.25")
Spindle nose: ASA A1-6 or D1-6
Internal spindle taper: MT6 / MT4
Threading & Feed
Metric threads: 0.2–14 mm (39 ranges)
Imperial threads: 2–72 TPI (44 ranges)
Lead screw: 35 TPI or 6 mm
Longitudinal feed: 0.03–0.85 mm/rev
Cross feed: 50% of longitudinal feed
Feed ranges: 36 Steps
Tailstock
Tailstock taper: MT4
Quill stroke: 150 mm (6")
Quill diameter: 60 mm (2.38")
Motor
Main motor: 5 HP (7.5 HP optional)
Coolant pump motor: 1/8 HP
General
Machine weight: 1600 kg (3,527 lbs)
Power requirement: 220V / 3 Phase
Machine dimensions: 2300 × 1000 × 1400 mm (91 × 39 × 55")
Standard Features
12" Chuck
12-Speed Geared Headstock
58 mm (2.25") Spindle Bore
Hardened & Ground Bed Ways
Quick Change Threading & Feed Gearbox
Metric & Imperial Threading
Power Longitudinal & Cross Feeds
Manual Tailstock
Coolant System
Work Light
Splash Guard
Emergency Stop System
Optional Accessories
Digital Readout (DRO)
Steady Rest
Follow Rest
Face Plate
Live Center
Quick Change Tool Post
Additional Tool Holders
Coolant Filtration System
Installation & Operator Training
