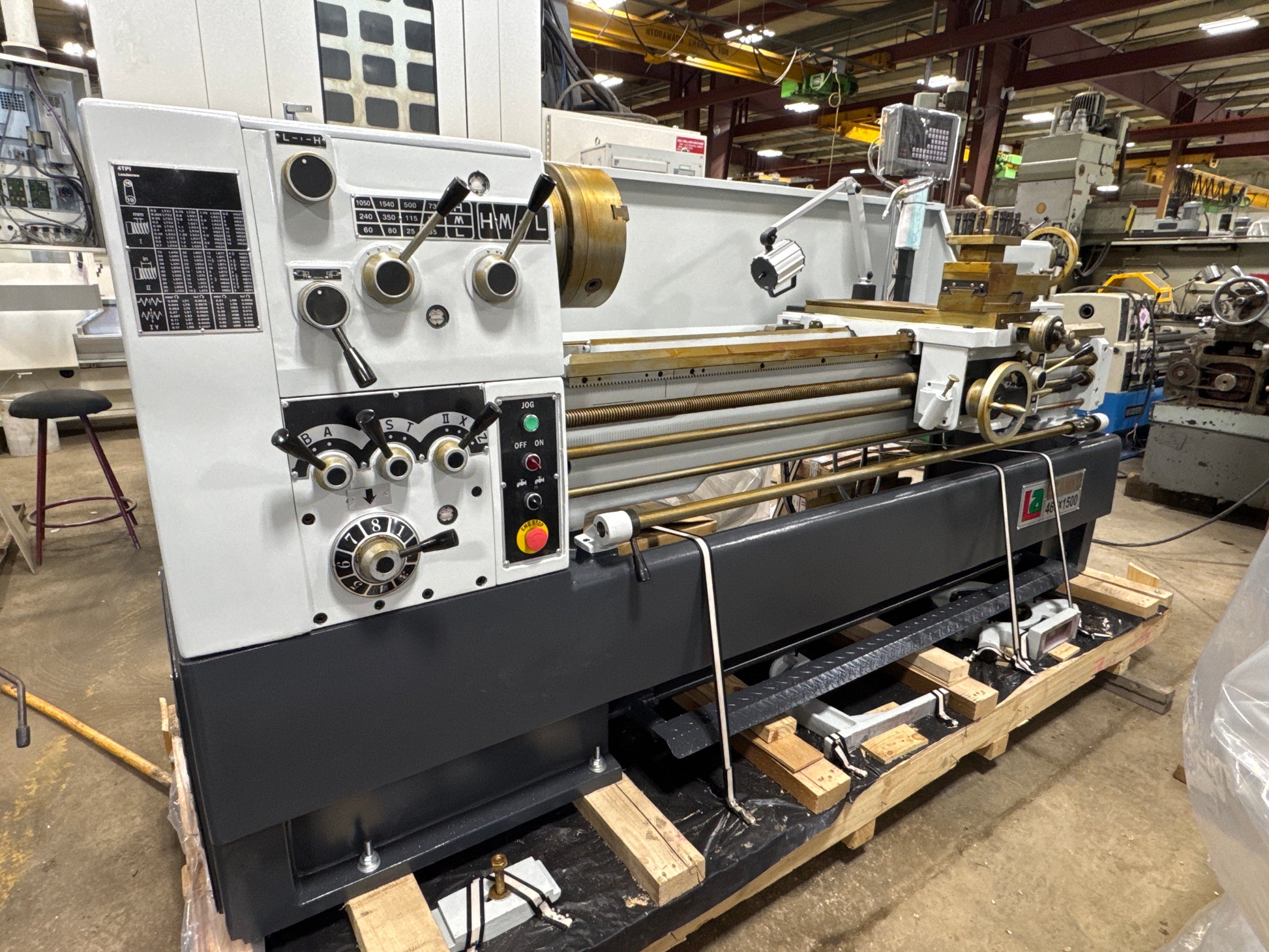

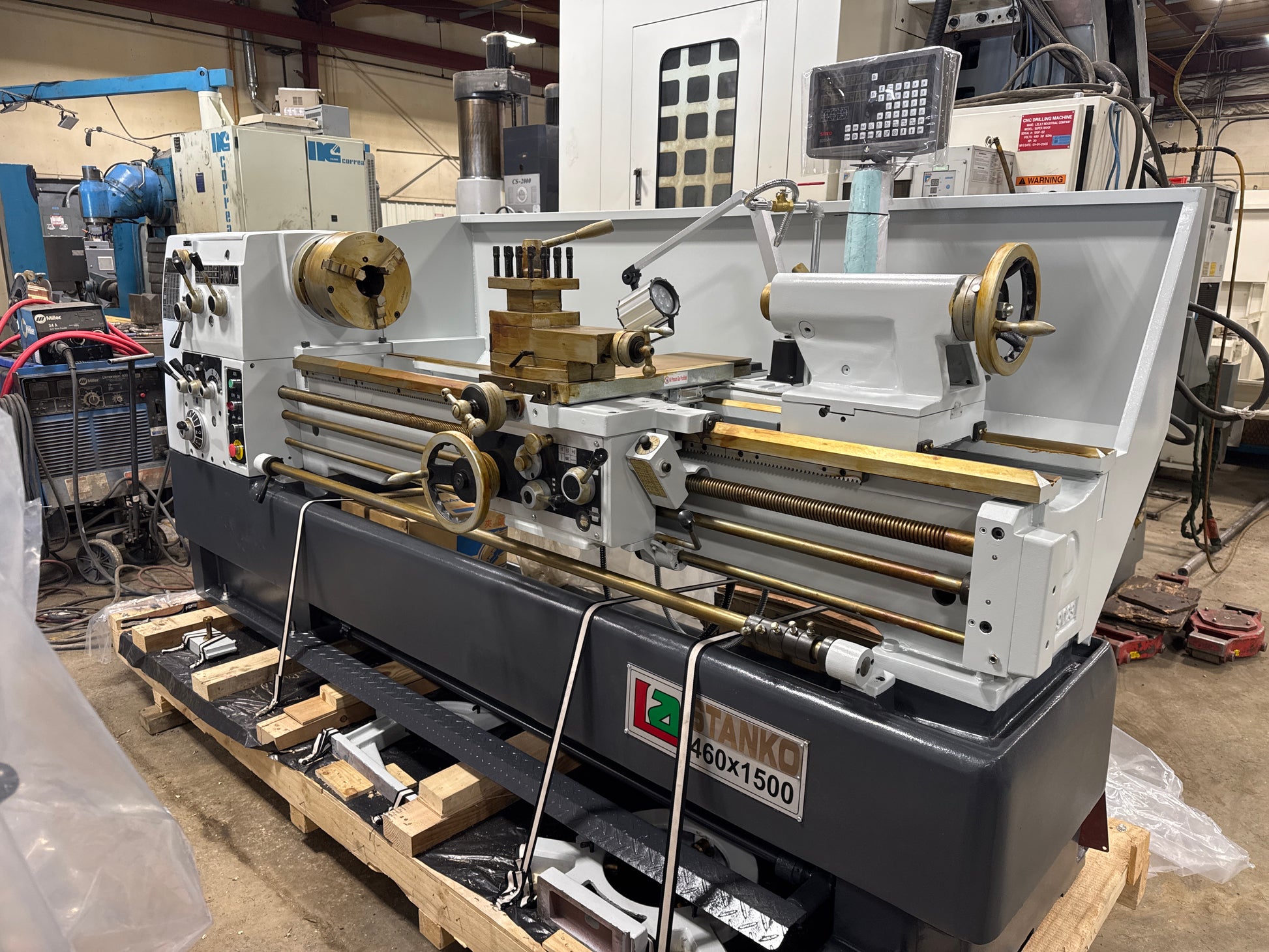

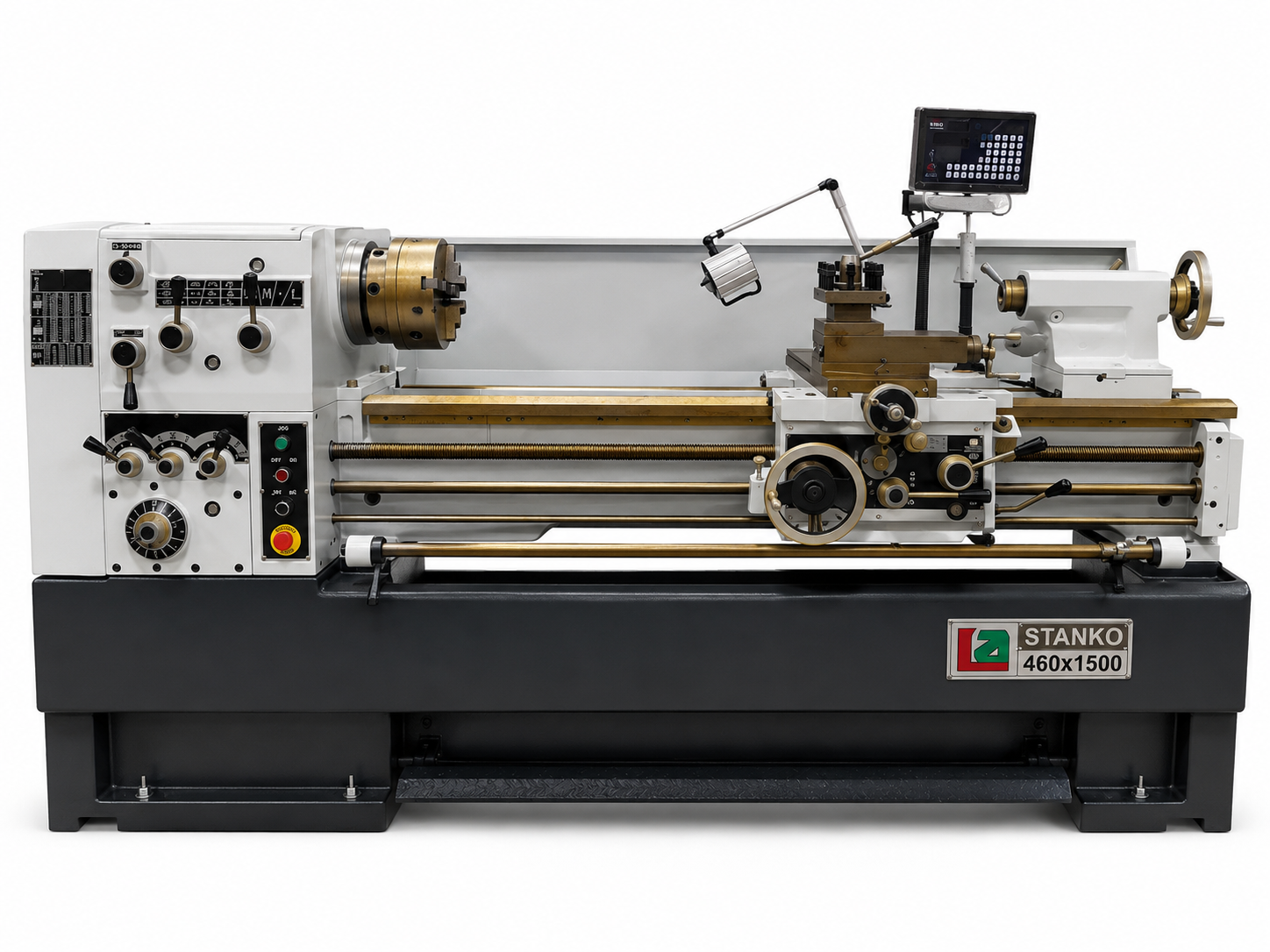

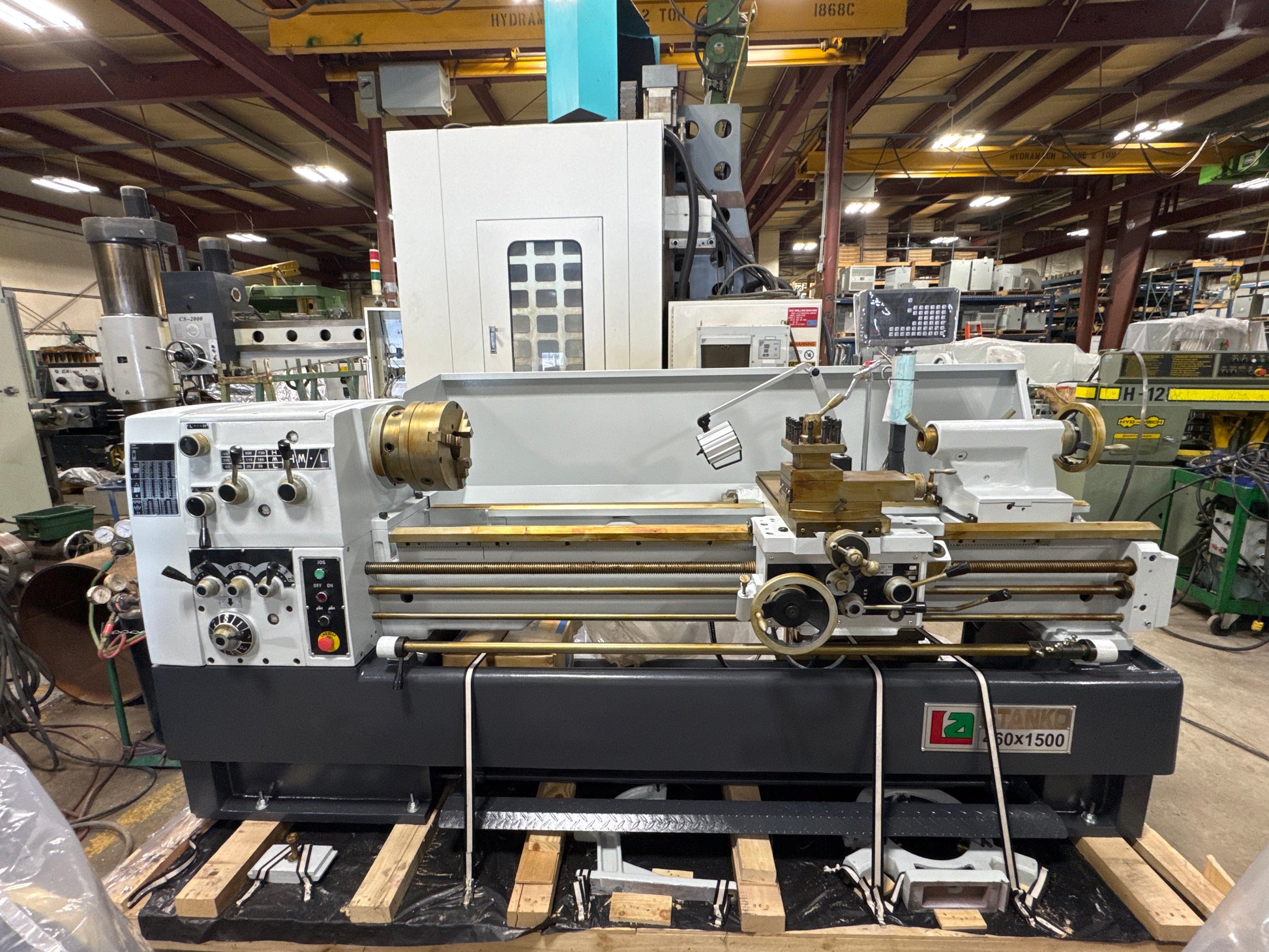

STANKO LA460 × 1500
The STANKO LA460 × 1500 is a heavy-duty engine lathe designed for precision turning, threading, facing, boring, taper turning, and general machine shop production. Featuring an 18" swing over bed, 59" between centers, a 3.15" spindle bore, and a powerful 7.5 HP motor, the LA460 × 1500 delivers the rigidity and performance required for repair shops, fabrication, maintenance, and industrial manufacturing.
Equipped with a D1-6 spindle, wide threading capabilities, precision feed gearbox, and taper turning attachment, the LA460 × 1500 combines dependable manual operation with excellent machining accuracy for both one-off and production work.
Specifications
Capacity
Swing over bed: 18"
Swing over cross slide: 10.75"
Swing in gap: 24"
Distance between centers: 1500 mm (59")
Bed width: 14"
Spindle

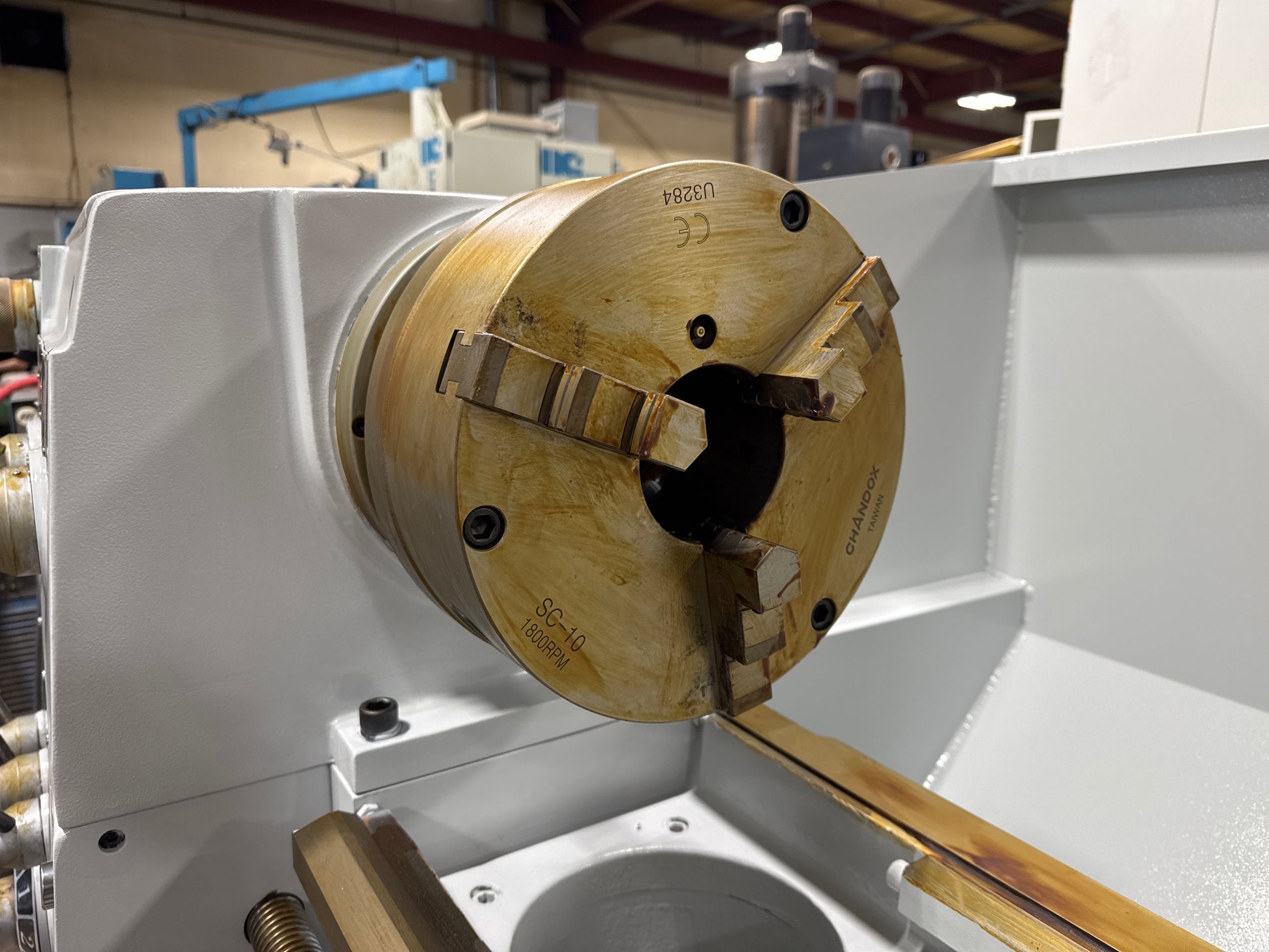

Front chuck: 10.75" 3-Jaw Chuck
Spindle speed: 25–1540 RPM
Spindle bore: 3.149"
Spindle nose: D1-6
Threading & Feed
Metric threads: 0.2–14 mm (39 ranges)
Imperial threads: 2–72 TPI (44 ranges)
Feed ranges: 36
Longitudinal feed: 0.0012"–0.034"/rev
Cross feed: 50% of longitudinal feed
Lead screw: 1.75" × 4 TPI
Tailstock
Tailstock taper: MT5
Quill diameter: 2.38"
Quill stroke: 6"
Motor
Main motor: 7.5 HP
Coolant pump motor: 1/8 HP
Standard Features
10.75" 3-Jaw Chuck

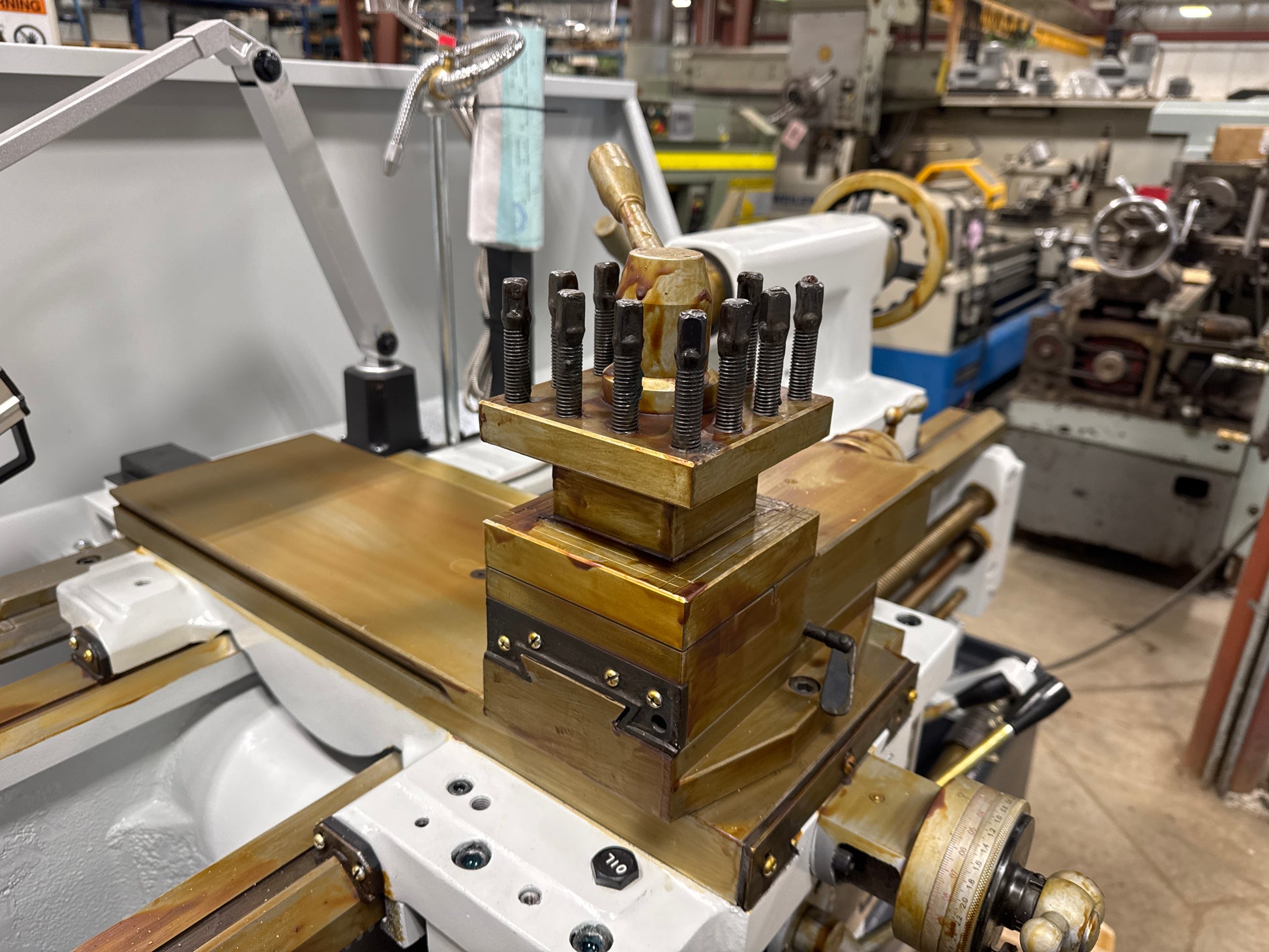

Quick Change Tool Post
Taper Turning Attachment
Coolant System
Full Splash Guard
Optional Accessories

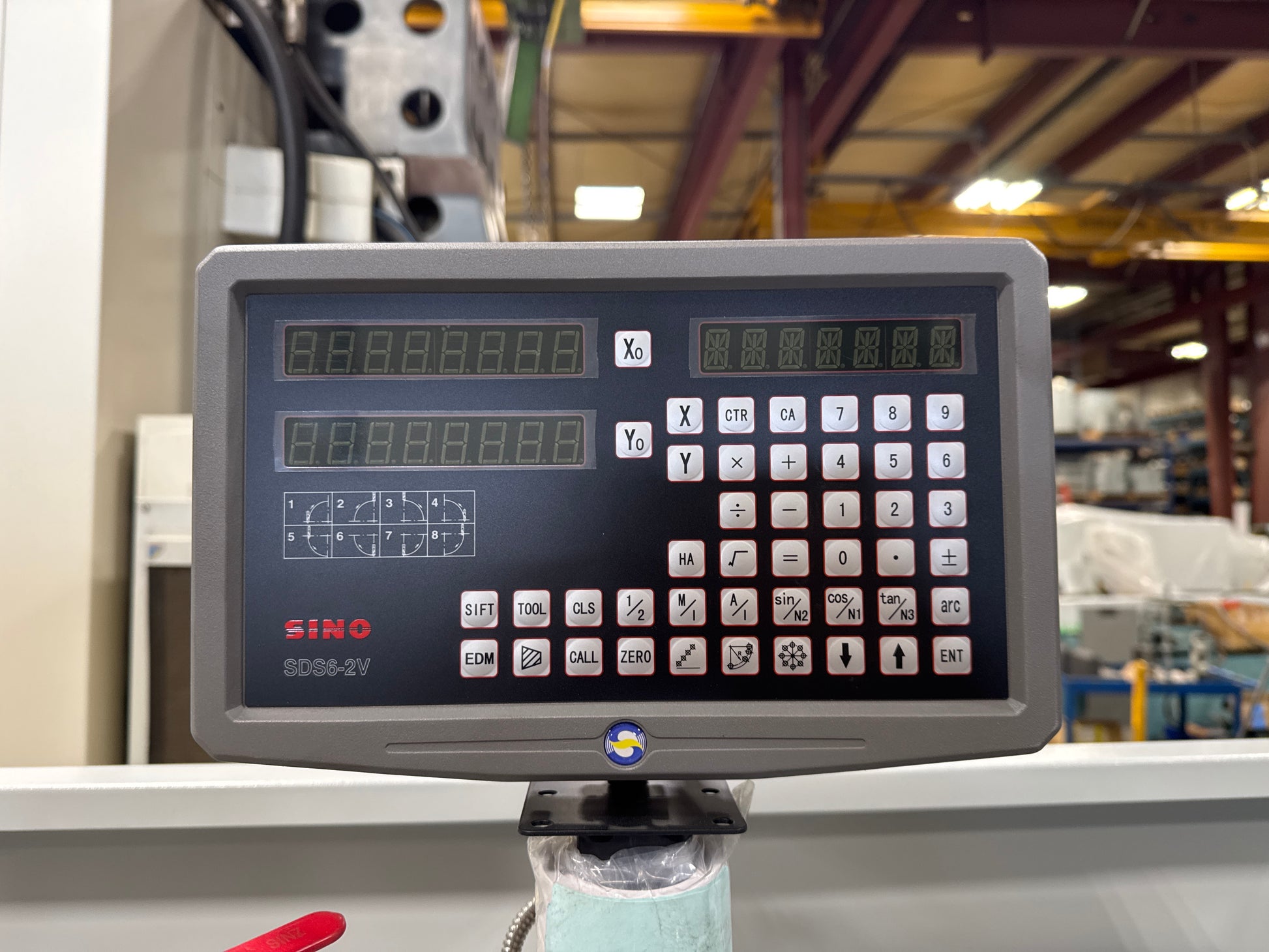

SINO SDS6-2V Digital Readout (DRO)
12" 4-Jaw Chuck
Steady Rest
Follow Rest
