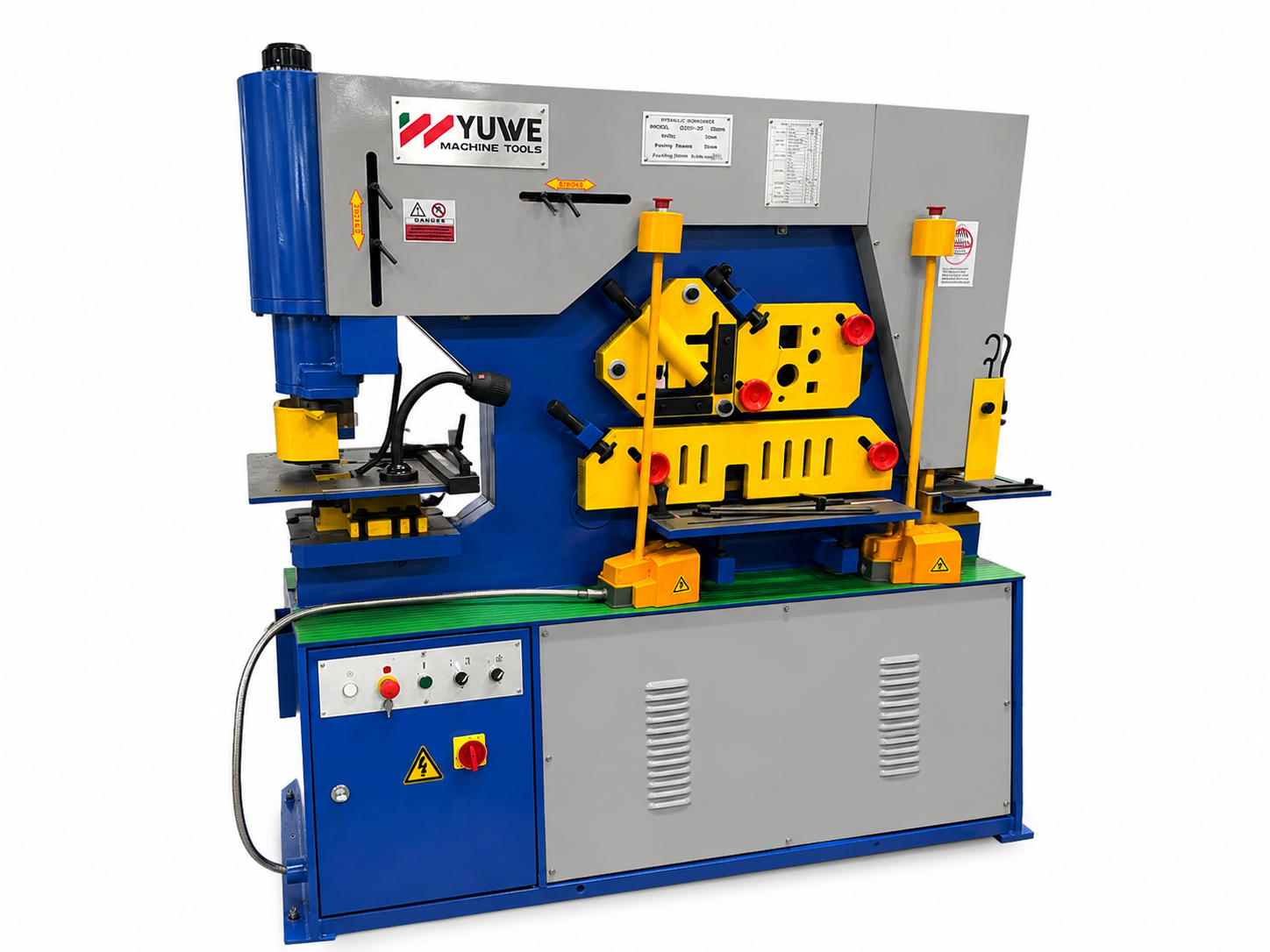

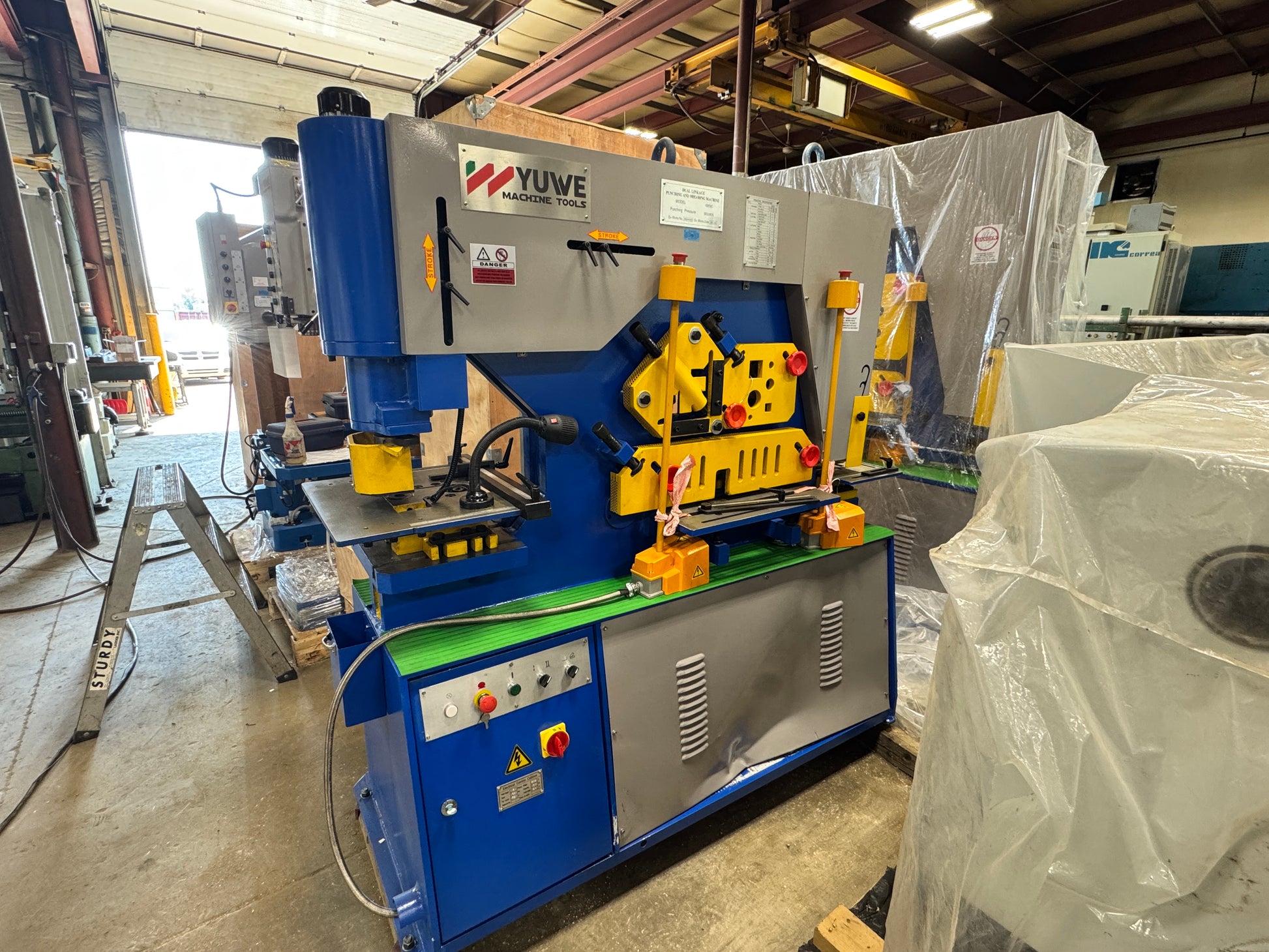

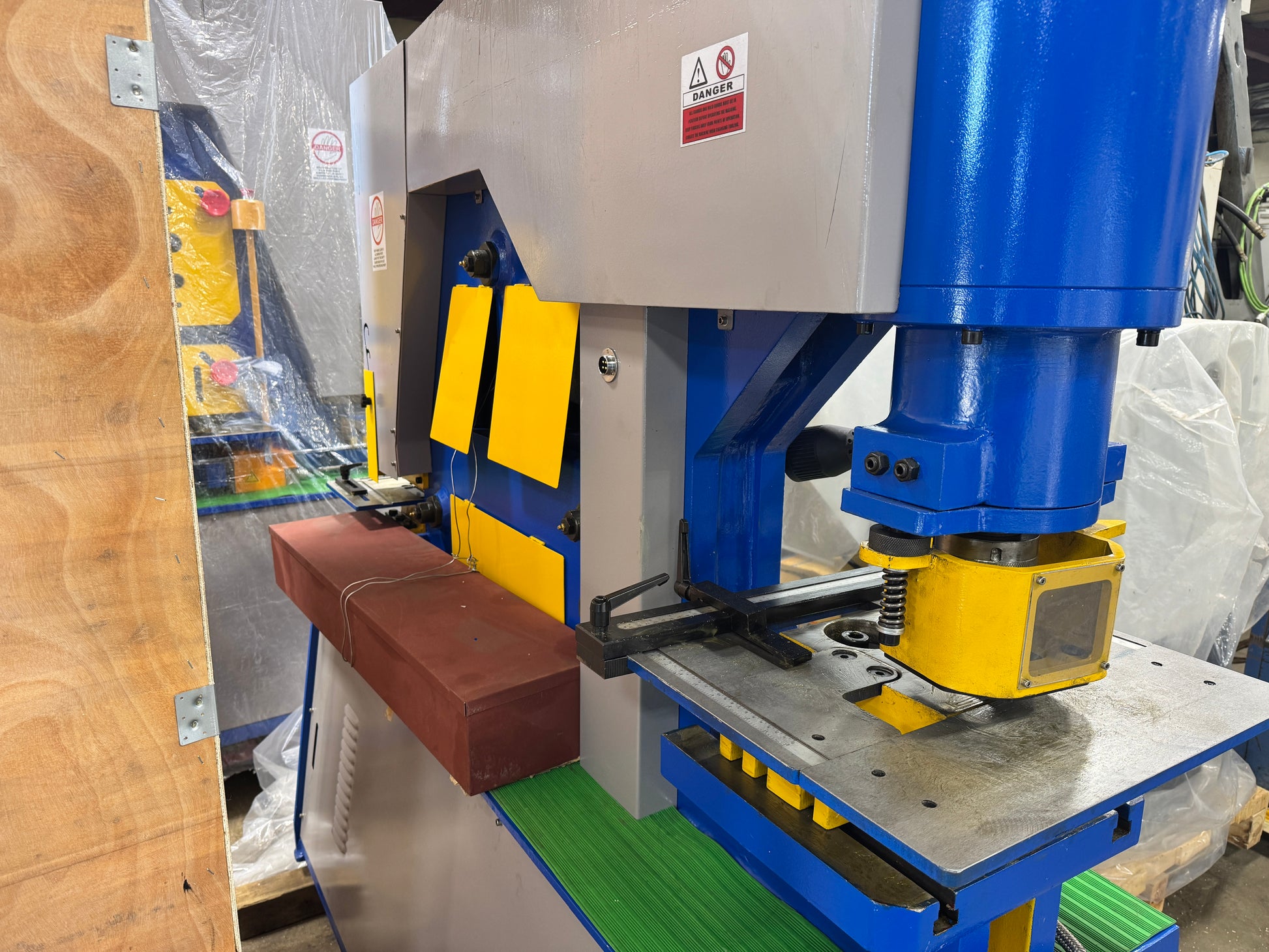

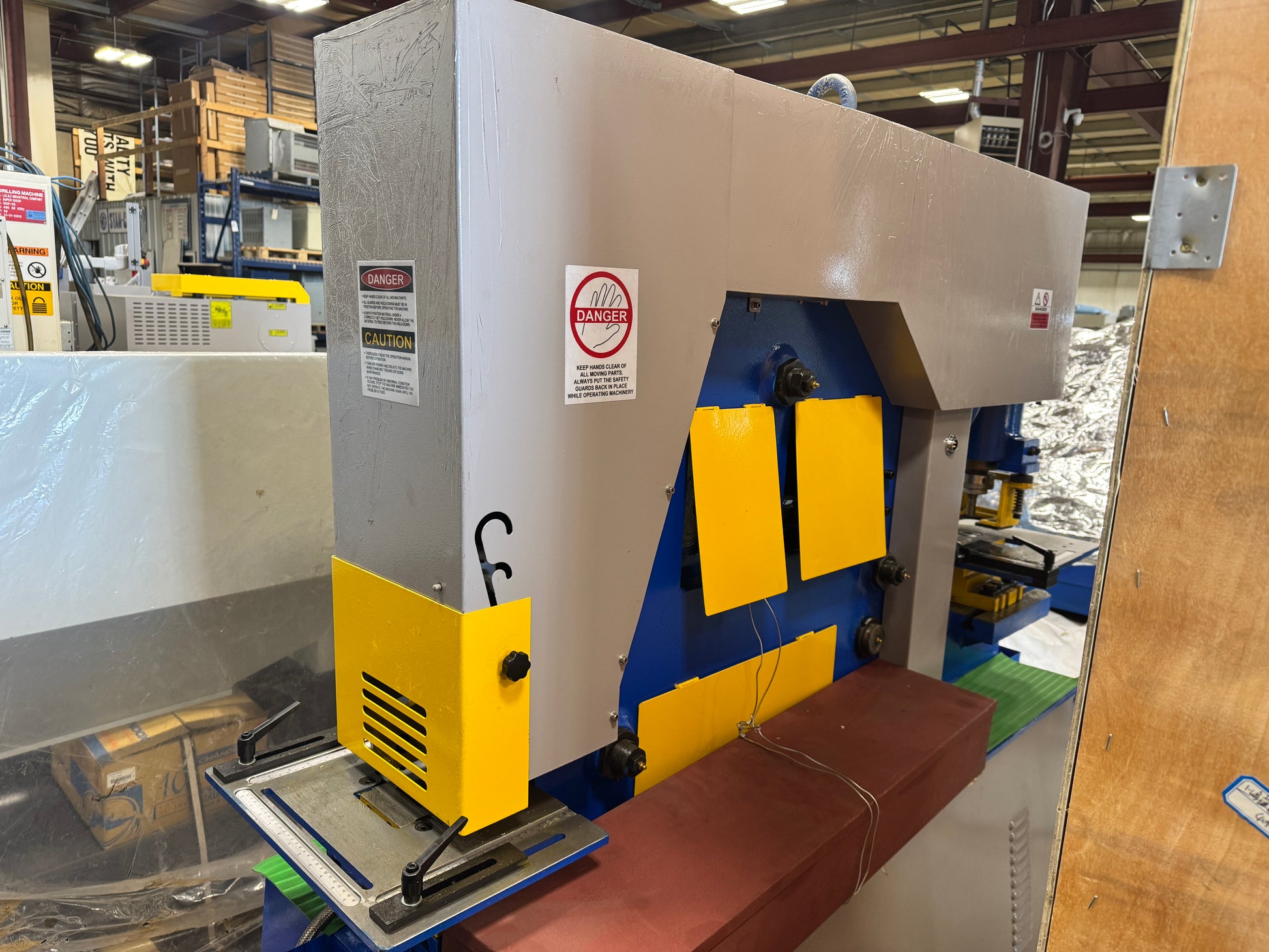

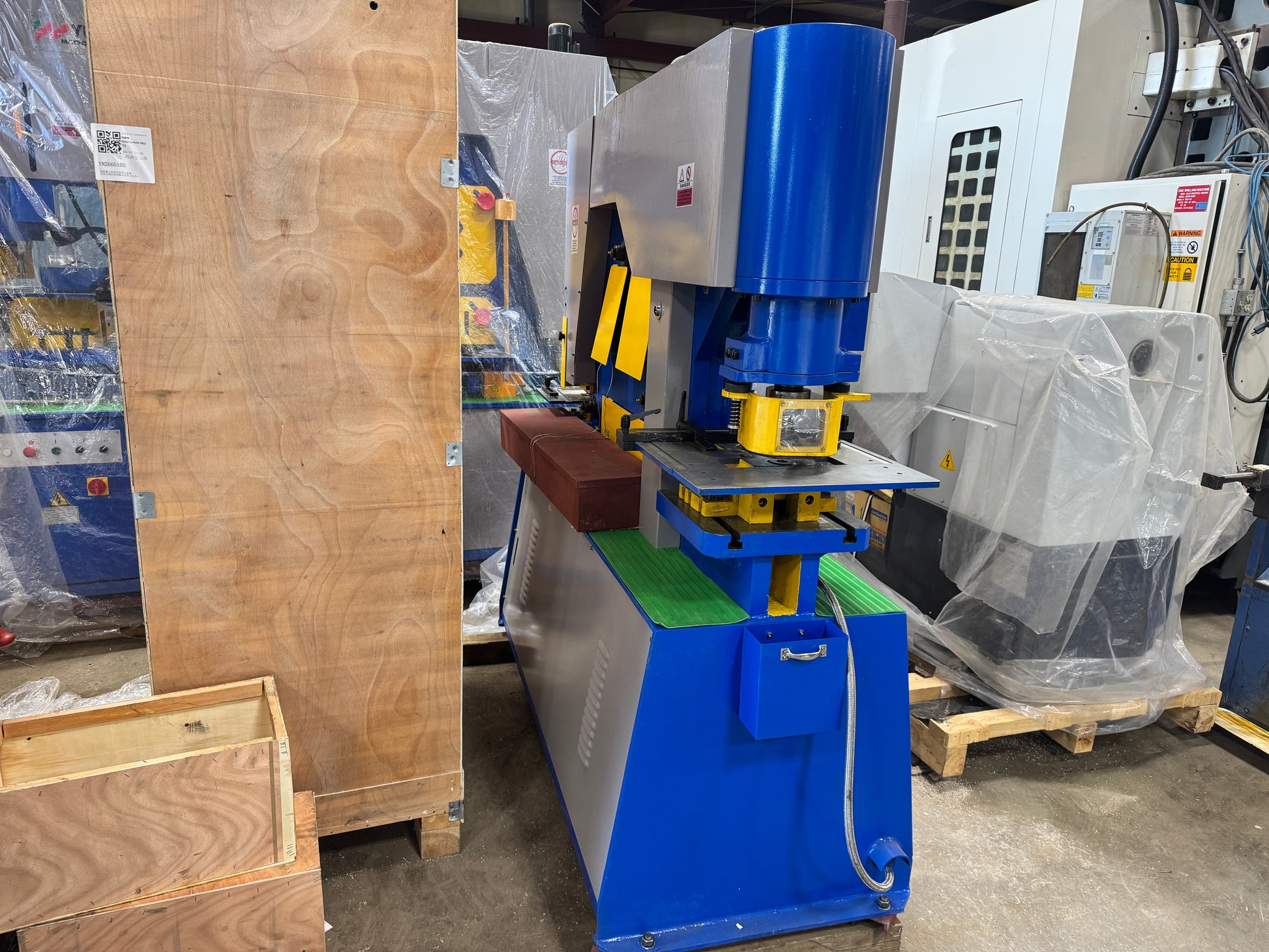

New YUWE 90 Ton Dual Hydraulic Ironworker

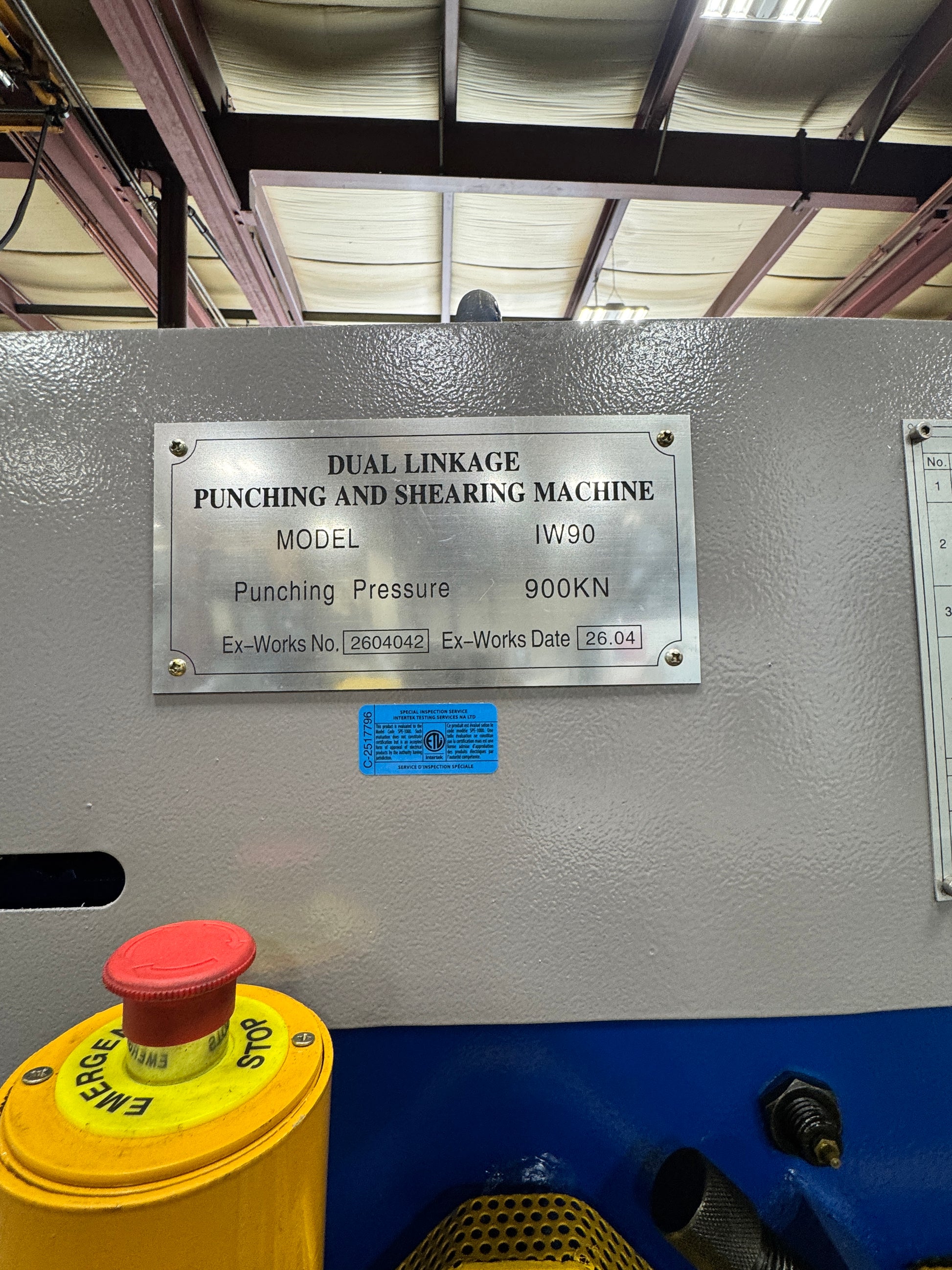

YUVE IW90 Dual Linkage Punching and Shearing Machine

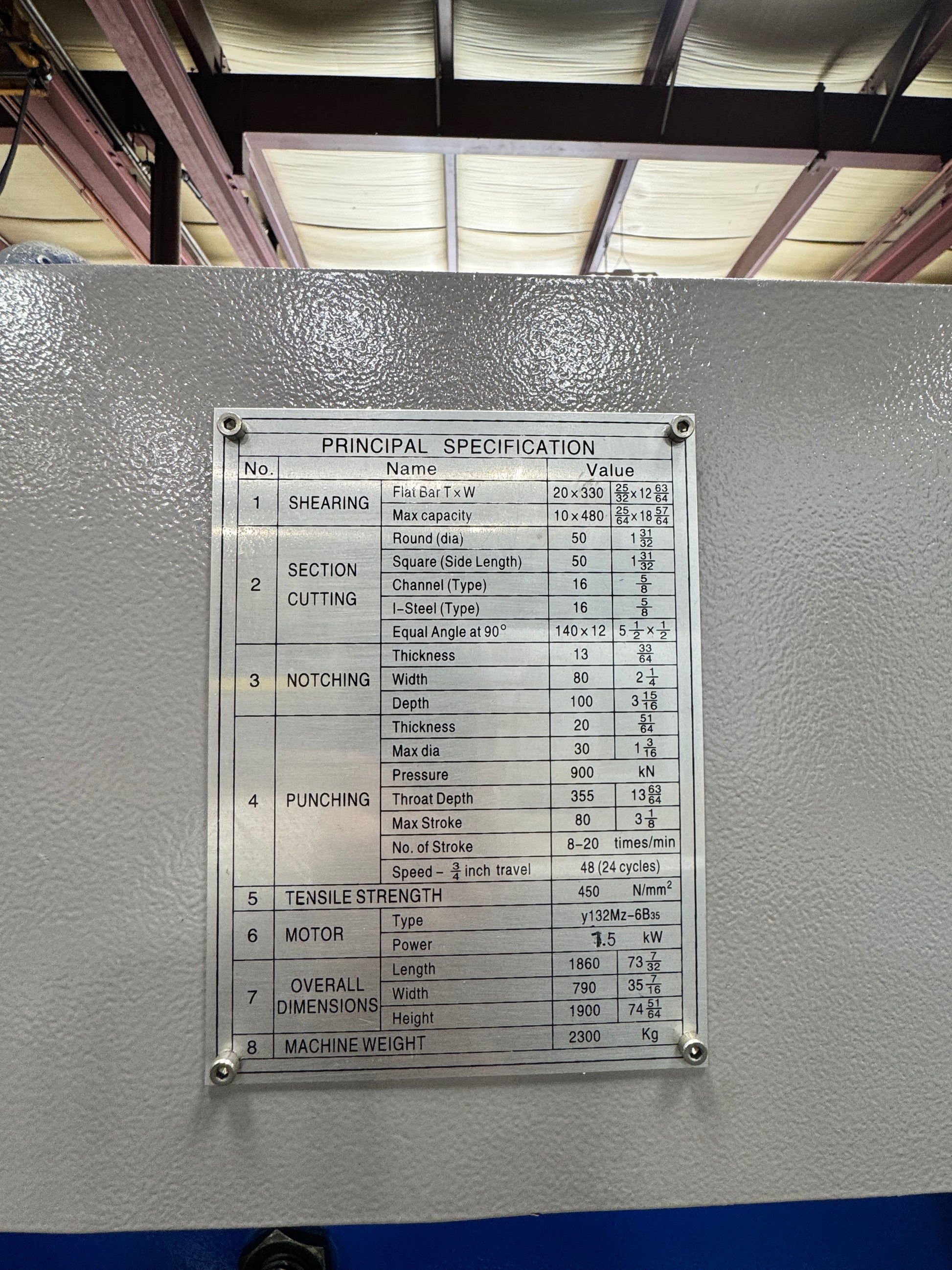

Technical Specifications

General

• Model: IW90
• Punching Force: 900 kN / 90 Ton
• Maximum Material Tensile Strength: 450 N/mm²

Flat Bar Shearing Capacity

• Maximum Capacity: 20 × 330 mm
• Alternative Capacity: 10 × 480 mm

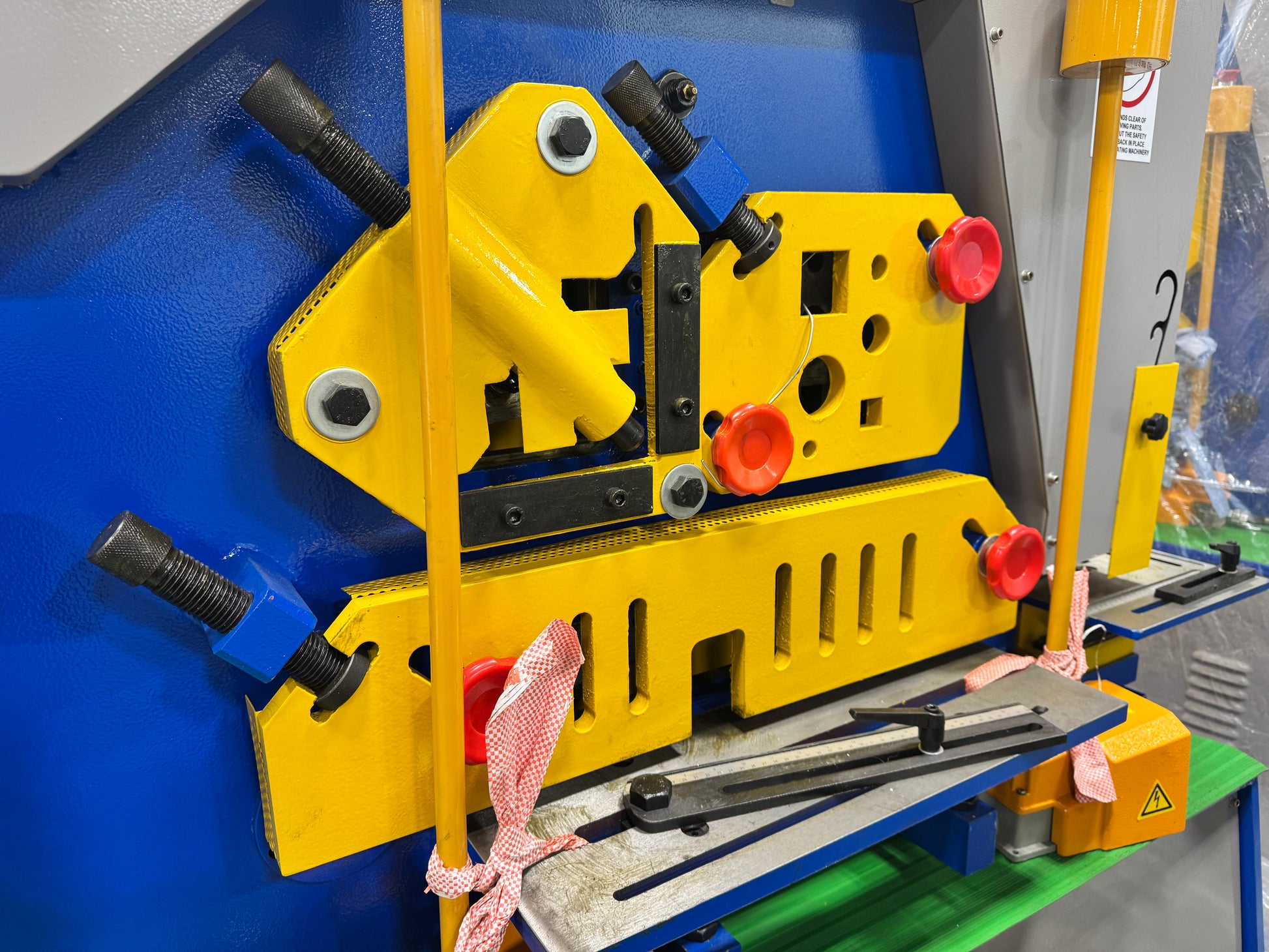

Section Cutting Capacity

• Round Bar: Ø50 mm
• Square Bar: 50 × 50 mm
• Channel: Size 16
• I-Beam: Size 16
• Equal Angle at 90°: 140 × 140 × 12 mm

Notching Capacity

• Maximum Thickness: 13 mm
• Notch Width: 80 mm
• Notch Depth: 100 mm

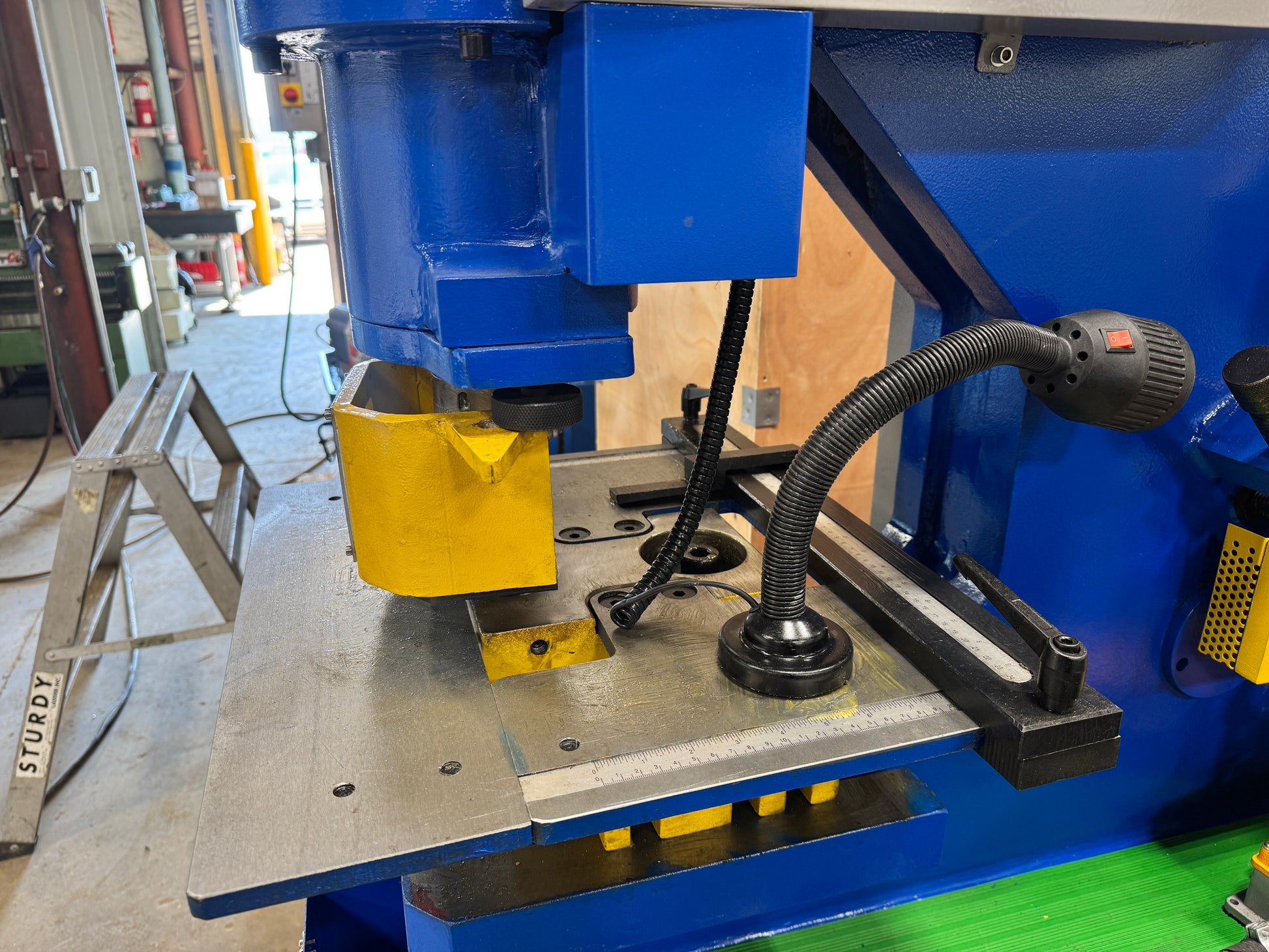

Punching Capacity

• Maximum Material Thickness: 20 mm
• Maximum Hole Diameter: Ø30 mm
• Punching Force: 900 kN
• Throat Depth: 355 mm
• Maximum Stroke: 80 mm
• Stroke Rate: 8–20 strokes per minute
• Speed at 3/4 in. Stroke: 48 strokes per minute / 24 cycles per minute

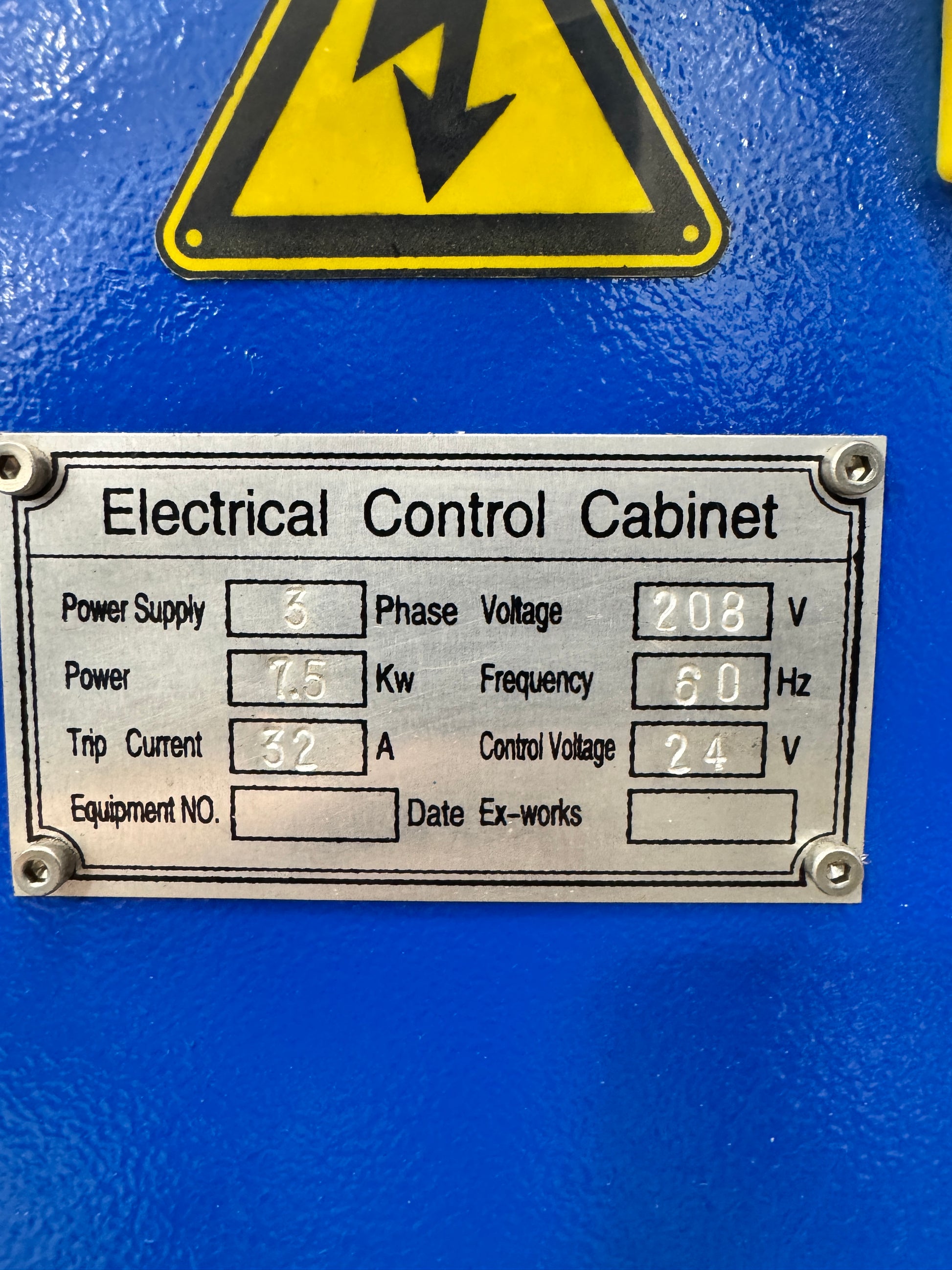

Electrical Specifications

• Voltage: 208 V
• Power Supply: 3-Phase
• Frequency: 60 Hz
• Motor Power: 7.5 kW / 10 HP
• Trip Current: 32 A
• Control Voltage: 24 V
• Motor Type: Y132M2-6B35

Overall Dimensions

• Length: 1,860 mm / 73.2 in.
• Width: 790 mm / 31.1 in.
• Height: 1,900 mm / 74.8 in.

Machine Weight

• Weight: 2,300 kg / approximately 5,070 lb
